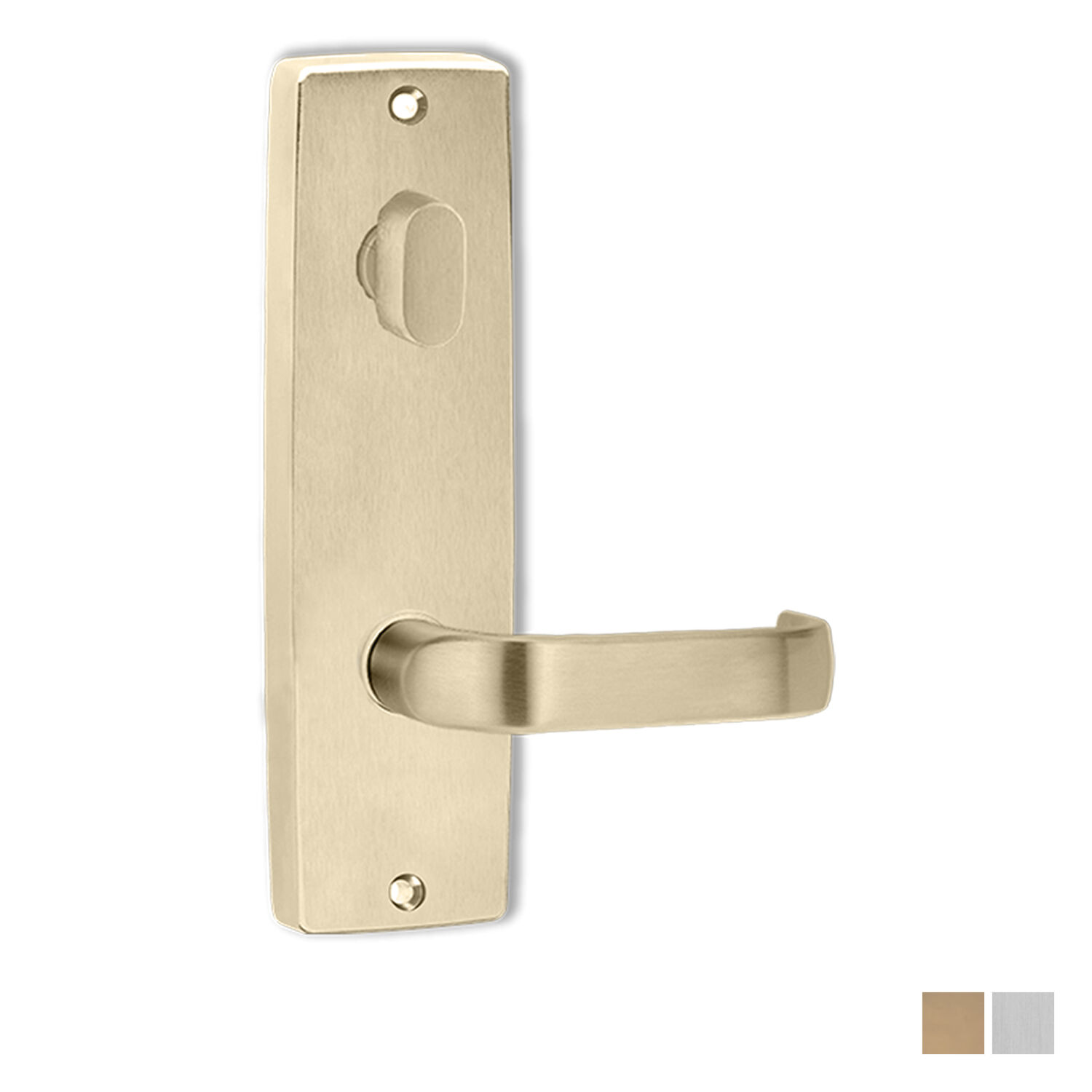

Lockwood 1904 Square End Plate With Turn and 74 Lever

PLEASE NOTE: This item is Non returnable. Upon placing your order, it CAN'T be cancelled or returned (unless faulty or damaged)

This is a non-stocked item which leaves the warehouse in 8 business days after payment is made.

Passage ideal for interior hallways, closets and other rooms that don't need privacy locks.

Passage Function - Both outside and inside levers are always free.

Features:

• Style and versatility are combined in this range which comprises of architecturally designed plates which give you the flexibility to mix and match to suit the aesthetics of every application
• made from the highest quality materials and is available in a comprehensive array of levers in a range of superb finishes that provide complete freedom of choice
• the culmination of decades of experience in the design and manufacture of high quality door furniture
• a classic rectangular plate with bevelled edges suiting corporate, commercial and public spaces with high use requirements

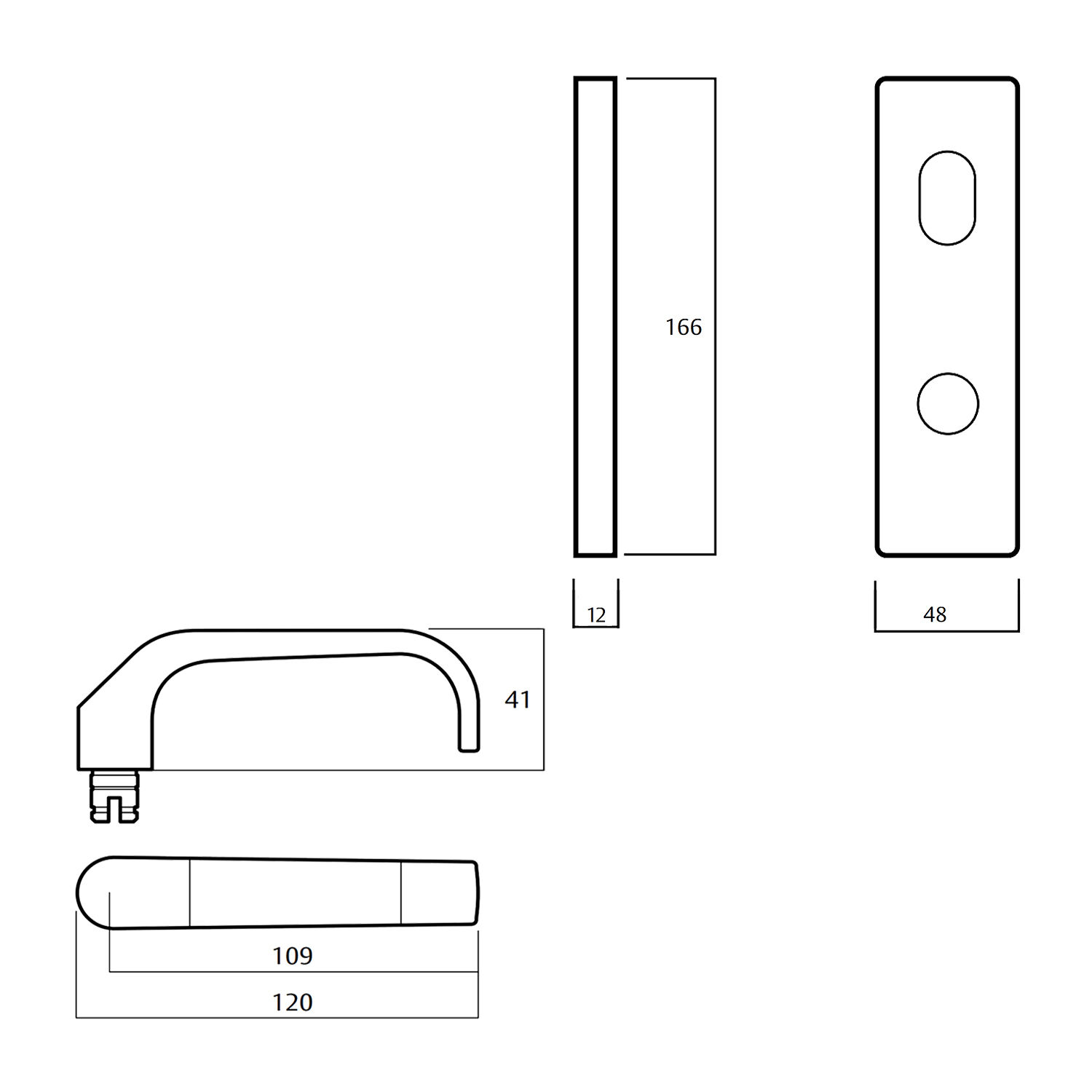

Specifications:

• Material: Solid Brass
• Plate Height: 166mm
• Plate Width: 48mm
• Plate Depth: 12mm
• Lever Length: 120mm
• Lever Projection: 65mm
• Finger Clearance: 48mm
• Centre to Centre: 148mm
• Cylinder Pitch: 64mm
• Available Finish:
  • Architectural Bronze Unlacquered
  • Polished Brass
  • Satin Chrome
