Lockwood 1905 Square End Plate with 70 Lever
1905/70PB

PLEASE NOTE: This item is Non-returnable. Upon placing your order, it CAN'T be cancelled or returned (unless faulty or damaged)

This is a non-stocked item which leaves the warehouse in 8 business days after payment is made.

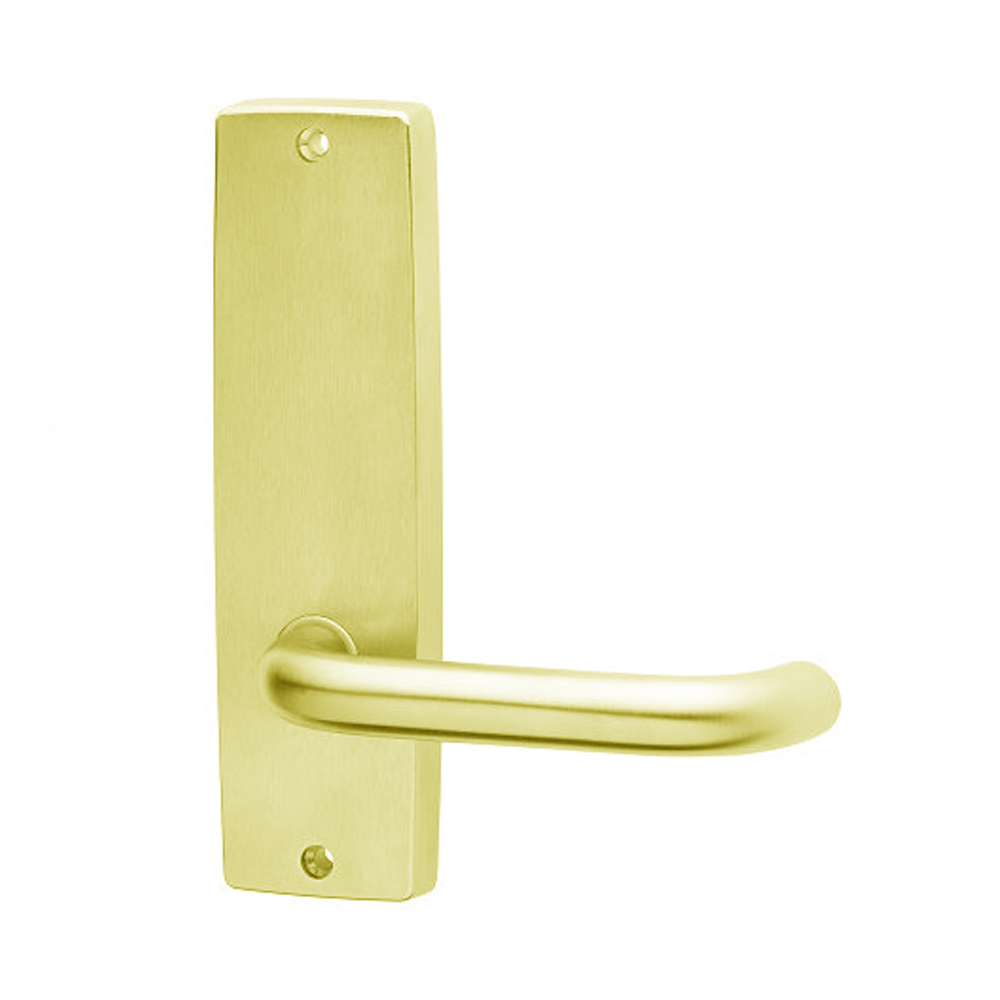

Square End Plate a classic rectangular plate with bevelled edges. Suits corporate, commercial and public spaces with high use requirements.

Square End Plate Function - external plates designed to fit back to back. If outside plate is specified with concealed fixing, then the inside plate must be visible fixed.

Features:

• Lockwood 1900 series interior square end plate furniture
• Designed for use with Lockwood 3570 series locks
• Rectangular interior square end plate
• Plain plate and 70 series tubular lever
• Visible fixing
• Plates are designed to fit back to back

Specifications:

• Door Thickness: 32mm - 50mm
• Screw Fixing Centres: 148mm
• AS1428.1 Compliant Lever: Yes
• Internal / External: Internal

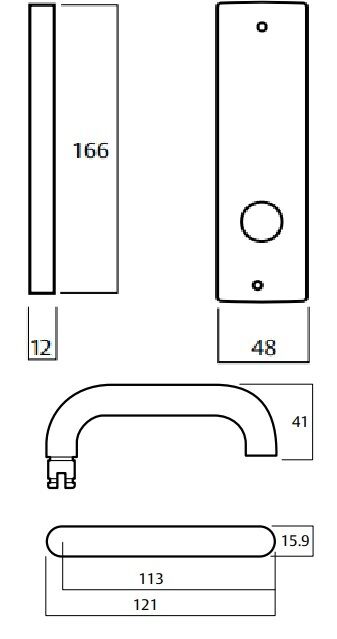

• Plate Size: 166mm x 48mm x 12mm
• Plate Type: Square End
• Fire Rated: Yes
• Material: Brass
• Plate Has A Lever: Yes
• Finish: Polished Brass
