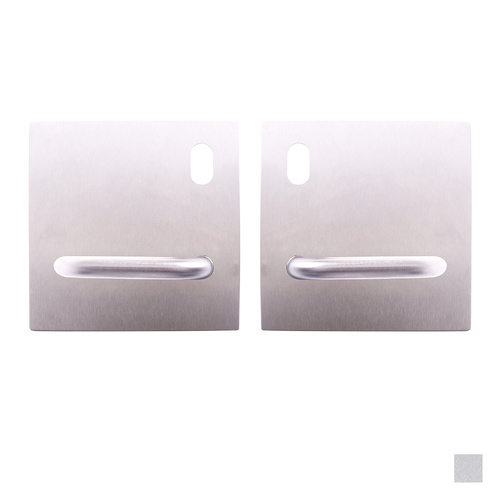

Lockwood 200 Exterior Plate with Cylinder Hole and 96 Lever

Backplate secures the door handles or door knobs to the door.

Backplate Function - designed to hide the internal mechanism of the door handle or door knob.

Features:

• Suitable for use in public, commercial, industrial and institutional buildings, where there is a need for high grade and durable fittings
• Concealed fixed plates have studs with internal threads located in each corner, visible fixed plates have corresponding countersunk holes and are fixed back to back through the door.
• Concealed fixing with screws at 4 points
• Cylinder hole only

Specifications:

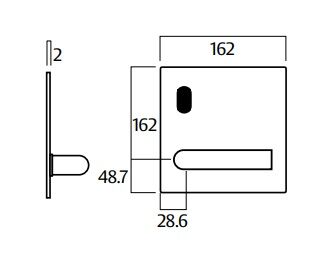

• Plate Height: 162mm
• Plate Width: 162mm
• Plate Thickness: 2mm
• Cylinder Pitch: 64mm
• Handing:
  • Left Hand
  • Right Hand
• Available Finish:
  • Polished Stainless Steel
  • Satin Stainless Steel
