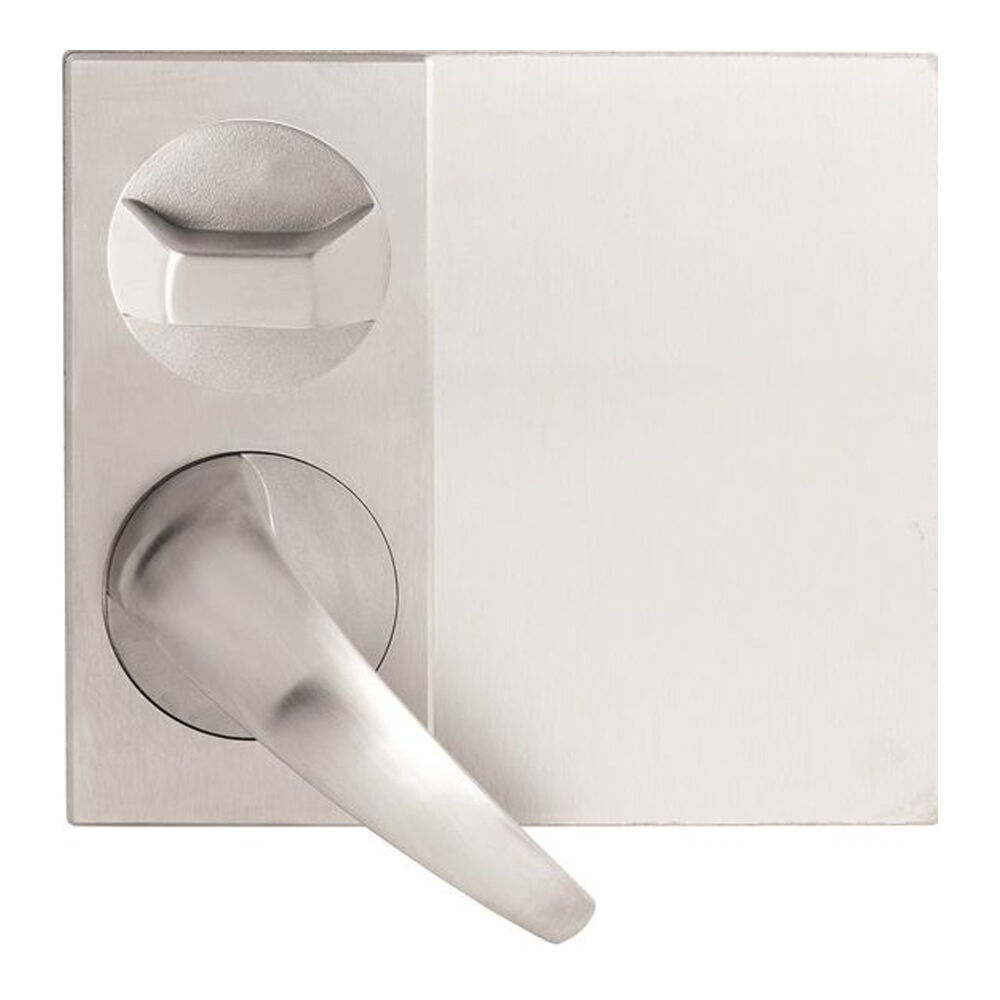

Lockwood 220D Concealed Fix Plate with Turn & 23 Lever

PLEASE NOTE: This item is Non-returnable. Upon placing your order, it CAN'T be cancelled or returned (unless faulty or damaged)

This is a non-stocked item which leaves the warehouse in 12 business days after payment is made.

Concealed Fix Plate with Turn & Lever is commonly used on internal privacy doors in residential and commercial settings, offering a clean aesthetic and secure, tamper-resistant design.

Concealed Fix Plate with Turn & Lever Function - provides a sleek, tamper-resistant installation ideal for internal privacy doors.

• The Lockwood Detention Series door furniture range was developed after extensive research with government representatives, architects, nurses and locksmiths experienced in correctional, juvenile justice and health departments.
• Lockwood's solution protects the well-being of patients and inmates without compromising security and staff safety.
• A heavy duty plate designed for use in hospitals and detention facilities. Styled for institutional use, this plate has six fixing points to ensure that it is well secured to the door. Plates are designed to be free of ligature points.

Application:

• Lockwood 3770 Series Mortice Locks
• Lockwood 3570 Series Mortice Locks
• Lockwood 3579 Secure Area Rated Locks

Features:

• Anti-ligature
• Covers fixing holes from existing Artefact 200 Series Furniture
• Detention furniture turns feature a clutching mechanism that allows the cylinder to retract the bolt even if the turn knob is held from the inside

Specifications:

• Base Plate: 162mm x 180mm x 2mm
• Bevelled Top Plate: 161mm x 75mm x 3mm
• Fixing: Concealed Fix
• Door Thickness: 35mm minimum, 45mm maximum For thicker doors, longer screws are required
• Available Handing:
  • Left Hand
  • Right Hand
• Finish: Satin Stainless Steel

Standards and Compliance:

• Fire Rated: Lockwood Detention Series Plate furniture have been successfully tested up to 2 hours with a fire rated Lockwood mortice lock on fire door assemblies (depending on type of doorset) in accordance with Australian Standard AS1905.1:2005, Fire Resistant Doorsets.
• S3: High security for maximum protection (AS4145.2:1993).
• D3: High durability for maximum frequency usage.
• Anti-Corrosion
