Lockwood 3782 Narrow Mortice Lock Kit Matt Black Cylinder & Turn
3782KIT04MBK

Cylinder Mortice Lock Kit provides more security on exterior doors that have windows. (e.g. When intruders attempt to break into a building through a window, the key lock on the inside of the door will stop them from entering)

Cylinder Mortice Lock Kit Function - where the deadbolt locks by a key on both the exterior and interior of the lock. Latch is operated on the interior and exterior by a knob or lever.

  • Lockwood Selector® 3782 universal mortice lock with double cylinder & furniture kit
  • The new Selector® 3780 series mortice lock was designed to incorporate a greater range of lock functions into one primary lock. In addition to industry first holdback capable lock, the Selector® 3780 series also includes an selectable anti-lockout feature. The mortice lock kit includes the following products:

Includes:

  • 1 x 3782 mortice lock.
  • 1 x 4801/70 external lever on plate.
  • 1 x 4904/70 internal lever on plate.
  • 1 x 570 cylinders with keys
  • 1 x 3700 series Turn adaptor

Features:

Mortice lock:

  • Short backset universal primary mortice lock.
  • Easy Red /Green function setting.
  • All lock settings are made from under the faceplate allowing for simple in-door configuration.
  • Standard primary locks include holdback and anti-lockout capabilities.
  • Lock is always holdback capable, no setting is required. Holdback can be activated at any time - unless anti-lockout is selected.
  • Operated by key or handle outside or by turnsnib, key or handle inside.
  • Zinc diecast body with stainless steel chassis plates for improved strength.
  • Electric Strike compatibility.
  • Supplied with cylinders.

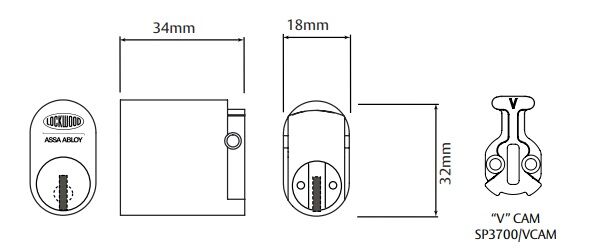

  • Supplied with Selector 'V' cam.
  • Compatible to most restricted keying systems.

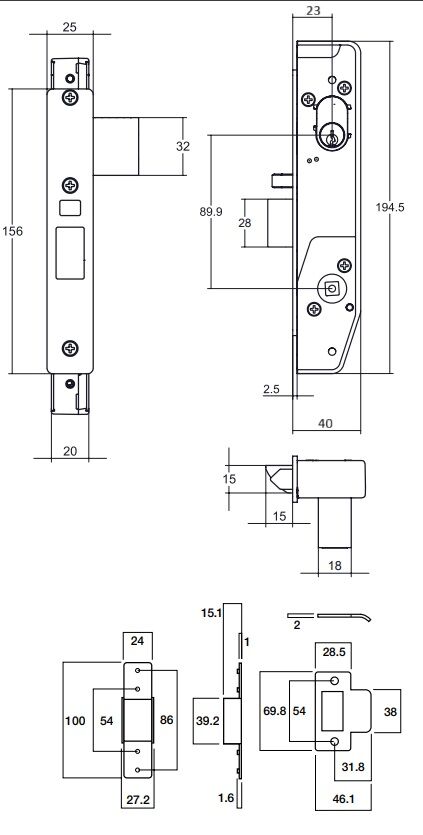

  • Backset: 23mm backset as standard
  • Suits metal door thickness: 35mm to 50mm.
  • Stainless steel reversible latch bolt: 15mm
  • Face Plate Finish: Matt Black.

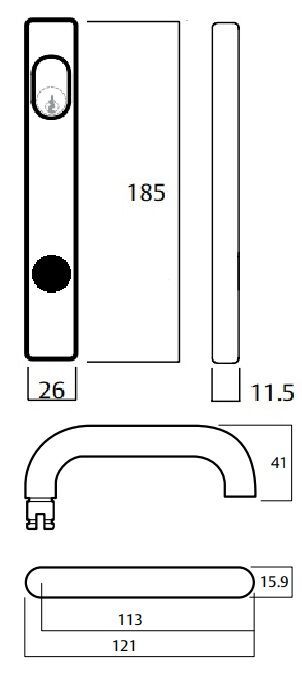

External Furniture:

  • Narrow stile exterior square end plate
  • Cylinder hole and 70 series tubular lever
  • Plates are designed to fit back to back
  • External plates supplied with fixing screws
  • Disabled access AS1428.1 compliant lever
  • Plate size: 185mm x 26mm x 11.5mm
  • Suits door thickness: from 32mm to 50 mm
  • Screw fixing centres: 160mm
  • Fixing: Concealed
  • Finish: Matt Black

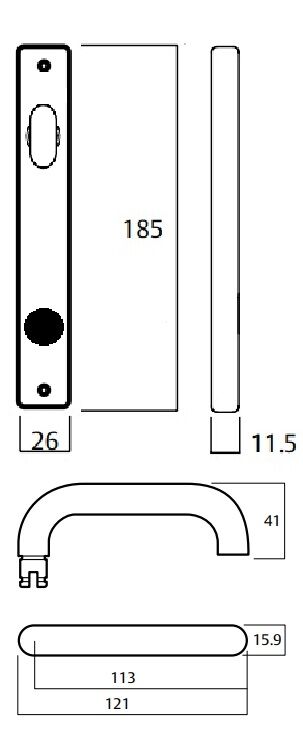

Internal Furniture:

  • Narrow stile internal square end plate
  • Turn snib and 70 series tubular lever
  • Plates are designed to fit back to back
  • Disabled access AS1428.1 compliant lever
  • Fixing: Visible
  • Fixing holes centres: 160mm
  • Suits door thickness: from 32mm to 50mm
  • Plate size: 185mm x 26mm x 11.5mm
  • Finish: Matt Black
SKU ASS3782KIT04MBK
Barcode # 9340116107332
Brand Lockwood
