Lockwood Furniture Square End Plate 4807

PLEASE NOTE: This item is Non-returnable. Upon placing your order, it CAN'T be cancelled or returned (unless faulty or damaged)

This is a non-stocked item which has a handling time of 10 business days after payment is made.

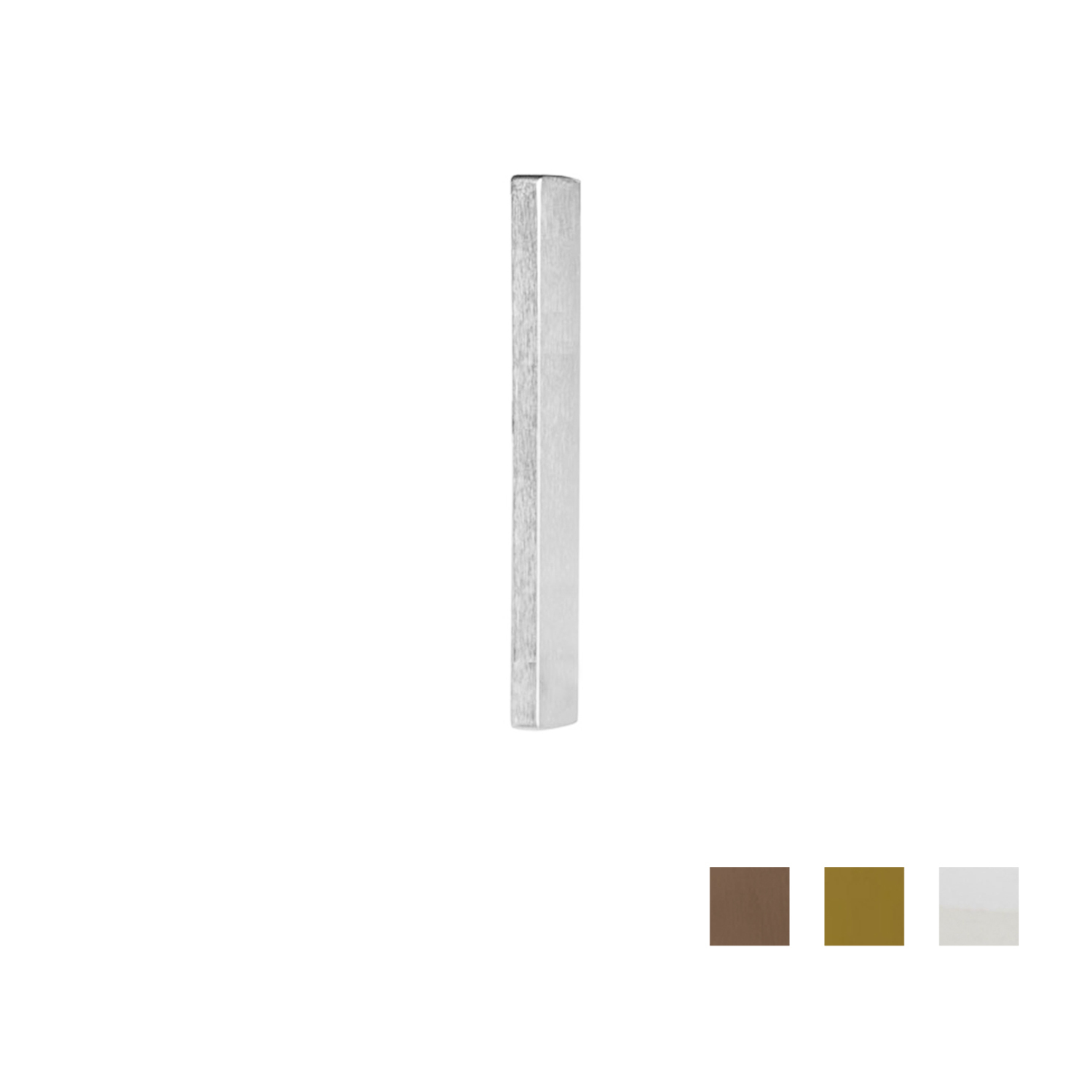

Square End Plate a classic rectangular plate with bevelled edges. Suits corporate, commercial and public spaces with high use requirements.

Square End Plate Function - external plates designed to fit back to back. If outside plate is specified with concealed fixing, then the inside plate must be visible fixed.

Features:

  • Lockwood 4800 series exterior narrow stile square end plate
  • Designed for use with Lockwood 3580/3780 series locks
  • External plates supplied with fixing screws
  • Plates are designed to fit back to back
  • Concealed fixing
  • Narrow stile exterior square end plate
  • Plain plate only

Specifications:

  • Material: Brass
  • Plate Type: Square End
  • Door Thickness: 32mm - 50mm

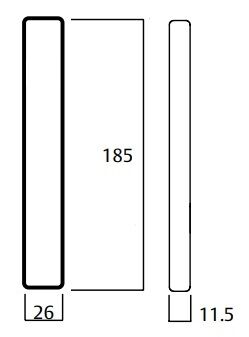

  • Plate Size: 185mm x 26mm x 11.5mm
  • Door Thickness: 32mm to 50mm
  • Screw Fixing Centers: 160mm
  • Available Finish:
    • Architectural Bronze Unlacquered
    • Chrome Plate
    • Oil Rubbed Bronze
    • Satin Chrome
SKU ASS4807_
Brand Lockwood
