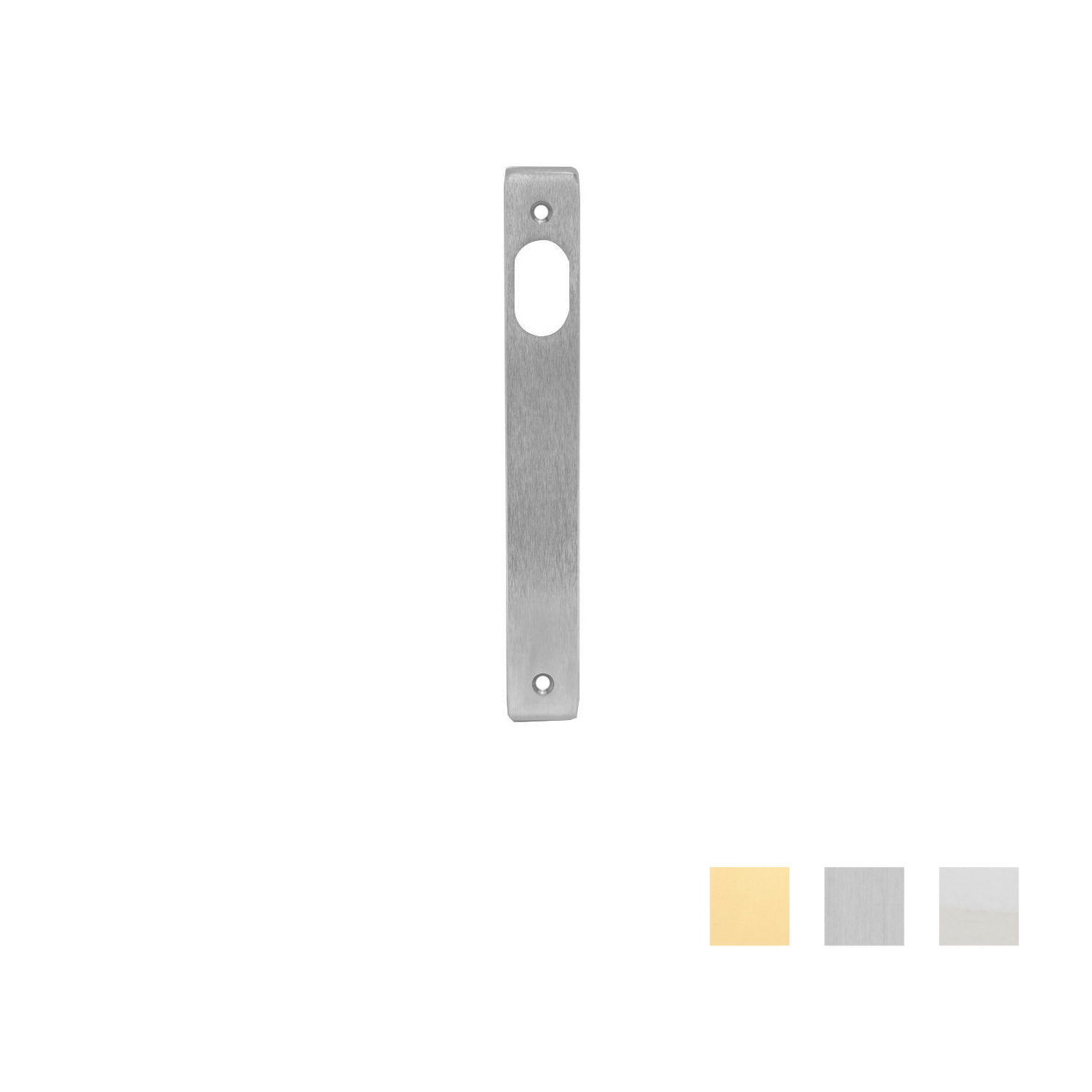

Lockwood Square End Plate with Cylinder Hole 4900

PLEASE NOTE: This item is Non-returnable. Upon placing your order, it CAN'T be cancelled or returned (unless faulty or damaged)

This is a non-stocked item which has a handling time of 10 business days after payment is made.

Square End Plate a classic rectangular plate with bevelled edges. Suits corporate, commercial and public spaces with high use requirements.

Square End Plate Function - external plates designed to fit back to back. If outside plate is specified with concealed fixing, then the inside plate must be visible fixed.

Features:

  • Designed for use with Lockwood 3580/3780 series locks.
  • Suitable for use with LW185SC offset pull handle (ordered separtely)
  • Narrow stile internal square end plate
  • Cylinder hole only
  • Visible fixing
  • Plates are designed to fit back to back

Specifications:

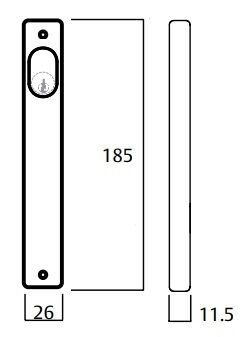

  • Plate Size: 185mm x 26mm x 11.5mm
  • Door Thickness: 32mm - 50mm
  • Screw Fixing Centres: 160mm
  • Available Finish:
    • Chrome Plate
    • Polished Brass
    • Satin Chrome
    • Satin Chrome Dual Plated
SKU ASS4900_
Brand Lockwood
