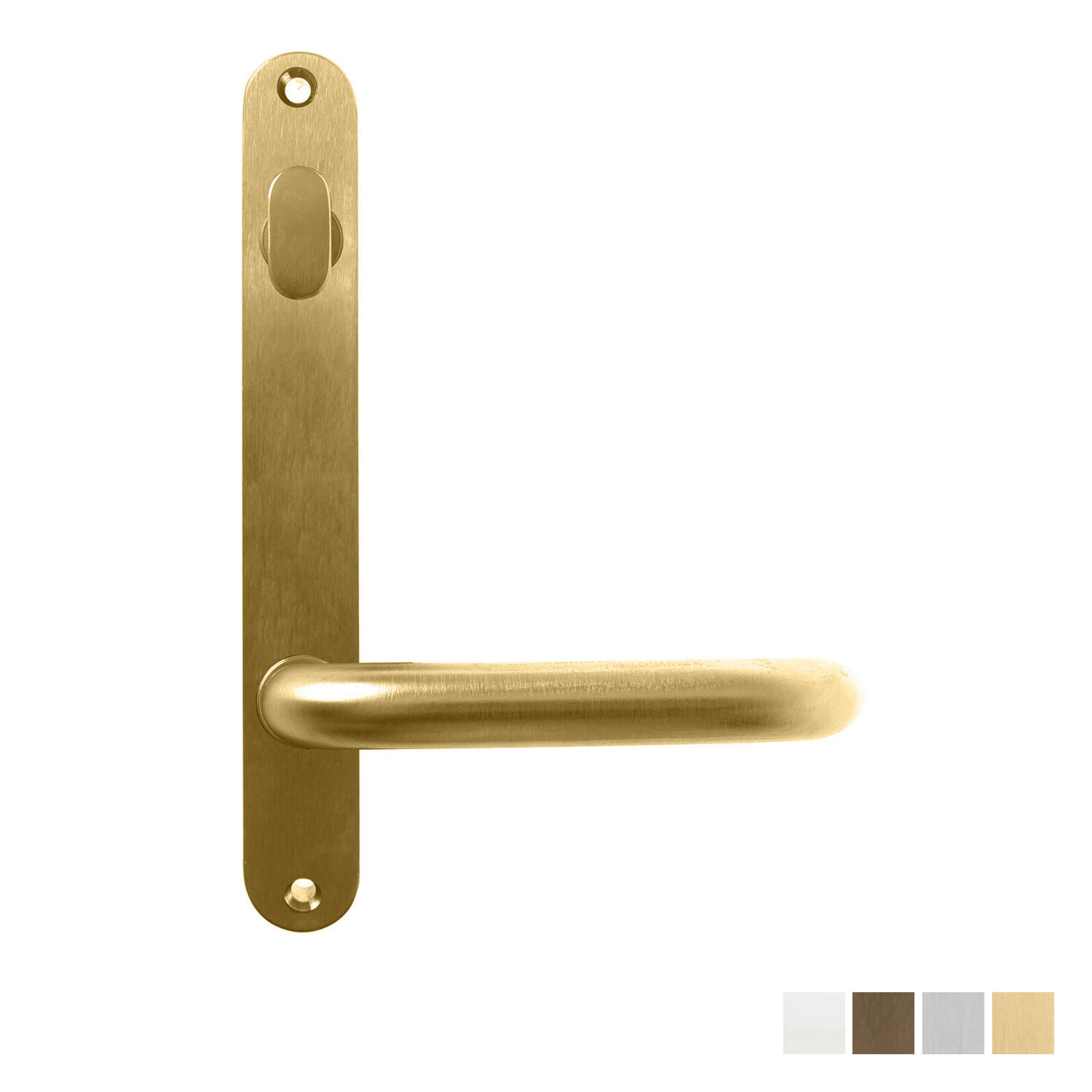

Lockwood 5904 Round End Plate with Turn and 70 Lever

Door Lever can be found on all types of doors including exterior doors of internal doors, residential and commercial buildings.

Door Lever Function - Lever design provides an easier grip when opening a door and it prevents your hand from slipping.

Features:

• Functional, yet elegant, the soft lines of this round-ended brass plate complement a wide range of levers
• Designed for use with Lockwood 3770/3570 Series Mortice Latches (5600/5700 Series) and 3780/3580 Series Mortice Latches (5800/5900). Additionally there are functions that are designed to work with Lockwood 3540 Series short backset mortice deadbolts
• The Lockwood Brass Door Furniture range is the culmination of decades of experience in the design and manufacture of high quality door furniture. Over the years the
• Lockwood brass door range has evolved as the product of choice for leading Australian architects in commercial, institutional and industrial applications

Specifications:

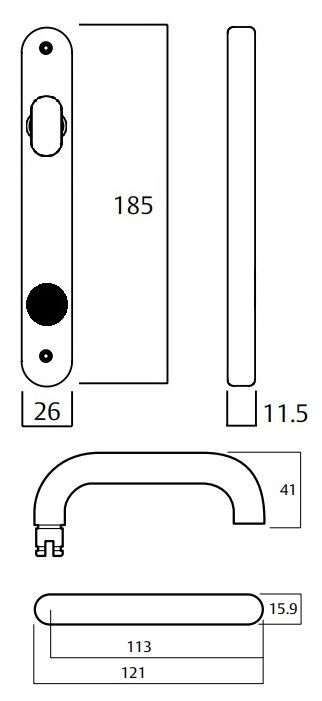

• Handle Type: Lever 70
• Door Thickness: 32mm to 45mm
• Height: 185mm
• Width: 26mm
• Depth: 11.5mm
• Available Finish:
  • Chrome Plate
  • Oil Rubbed Bronze
  • Polished Brass
  • Satin Brass
  • Satin Chrome Dual Plated

Standard and Compliance:

• Fire Rating: Successfully tested up to 4 hours with a fire rated Lockwood mortice lock on fire door assemblies (depending on type of doorset) in accordance with Australian Standard AS1905.1:2005, Fire Resistant Doorsets
• D8: Successfully tested to conform with Level D8 (500,000 cycles) under Australian Standard AS4145.2-2008, Locksets and hardware for doors and windows
• Disabled Compliant: meet the requirements of AS1428.1-2009, Design for access and mobility
