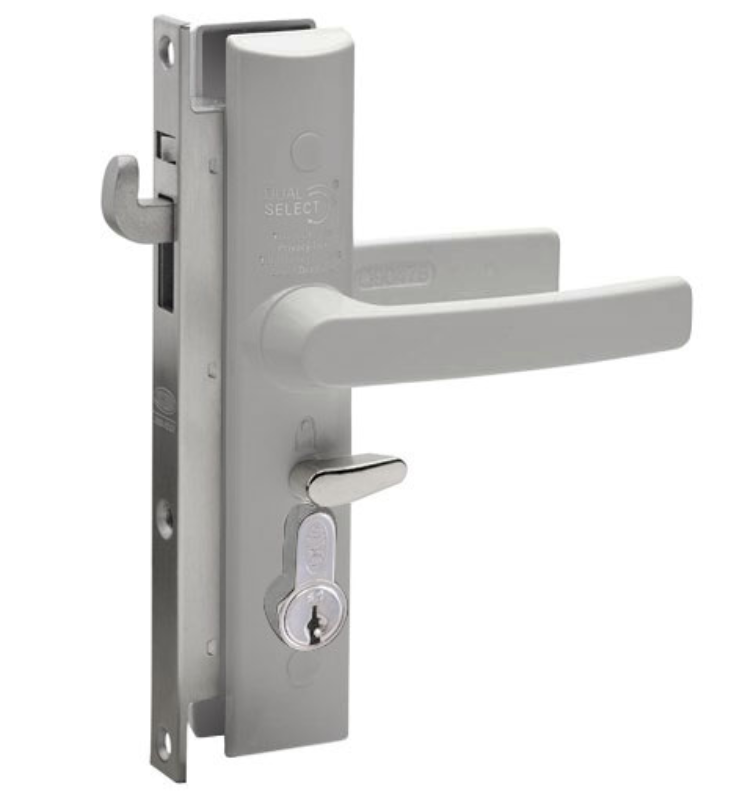

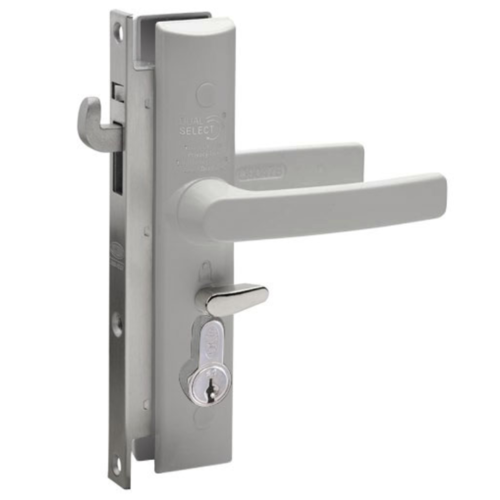

Lockwood Hinge Security Door Lockset with Cylinder Silver
8654SILC

The Lockwood 8654 Hinged Security Door Lock has been designed in Australia and manufactured to stringent quality specifications.

The range has been tested in accordance with AS4145.2-2008, offering exceptional performance and reliability. Incorporating Lockwood's advanced safety and security feature, DualSelect®,the 8654 Hinged Security Door Lock is ideal for use in residential applications.

Features and Specifications:

  • 2 stage key locking, offers safety and security for all occupants by giving a choice of selecting safety mode or secure mode when exiting the home
  • Turning the key to the first selection engages the safety lock, this offers security from the outside whilst allowing occupants inside to safely exit using the internal lever and snib
  • Turning the key to the second selection engages the secure lock, this provides internal and external security, and requires the key to unlock the door from inside and outside.
  • Suits left or right hand opening doors
  • Stainless steel hookbolt for increased security
  • Key locking from both sides
  • Inside snib locking (with key override)
  • Large ergonomically improved snib to assist with operation
  • Snib only version also available
  • No snib version also available
  • Stainless steel front end plates
  • Self latching with stainless steel hook deadbolt for improved security performance
  • Can only be locked when fully engaged with strike
  • Optional 3 point kits available for premium security
  • When 3 point kit is fitted, snib activates/operates all 3 locking points
  • Push on actuating bar suits above or below centreline applications
  • Available in a range of polyester powdercoat and plated finishes
  • Fits industry standard cut outs/door preparation
  • Retrofits Whitco Tasman Mk2 and Mk3 Locks
  • Zinc diecast lock mechanism and furniture
  • Easy installation for both new and retrofit applications
  • Accepts Lockwood Euro profile lazy cam cylinder
  • Suit standard 20mm door thickness
  • Finished in Silver

Application

  • Single or multi point mortice hinge security door lock available in high strength (3 point) and standard versions. Snib only and no snib mortice locksets are also available.

Keying

  • Use with Lockwood Euro profile lazy cam cylinder - with Kinetic Defence™ and Anti-Drill
  • 2 x 5 pin cylinder
  • Can be keyed alike to other Lockwood C4 door and window products

Accessories

  • Standard multi point kit
  • High strength multi point kit
SKU ASS8654SILC
Brand Lockwood
