Lockwood Cavity Sliding Door Entrance Set
7444SPDP

Lockwood's sliding door lock range is possibly the most innovative and aesthetically pleasing lock for a cavity sliding door in Australia. Combining elegance and ease of use, the Symmetry 7400 series is ideal for any home décor and security solution.

Not only will the internal bathroom or lounge room sliding door have a contemporary look, but the interconnecting door from the garage can be fitted with a key lockable entrance-set for security.

Key Features of the Lockwood Cavity Sliding Door Lock Range

• Designed in Australia for specific Australian market conditions
• Easily fitted into a standard 54mm door preparation with a 60mm backset
• Fitted flush against the panel of the sliding door for full recess into the door cavity

Key lockable solution
Key locking and turn function protects the secondary external application for an interconnecting sliding cavity door
Australian standards compliance AS41452.2-2008: Tested to exceed 30,000 turn cycles withstanding 3 kN of pull force

Retractable door pull
Revealed after extensive research, the sliding cavity door lock features an innovative retractable door pull which highly appeals to the discerning home owner

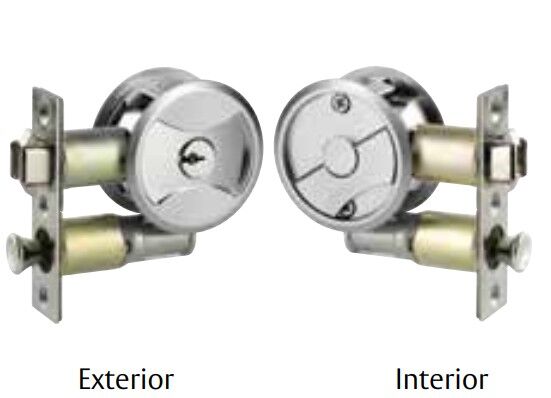

7444 Entrance Set
Outside - Locked or unlocked by key
Inside - Locked or unlocked by turn-plate

Materials

• Furniture plate: Zinc Alloy
• Bolt: Nickel Plated Zinc (12.4mm projection)
• Bolt Beak: Stainless Steel
• Front End Plate: Stainless Steel
• Retractable Door Pull: Zinc Plated
• Strike Plate: Stainless Steel
• Strike Box: Zinc Plated
• Keys: Brass

Fitting/Fixing
Standard 54mm prep hole
Standard 60mm latch backset
Standard 25mm cross-drill
Retractable door pull

Door Thickness
32* to 45mm for timber doors
* Requires spacer ring (included)

Locking Entrance Set
5 Pin C4 keyway
Supplied individually keyed with two keys per Lock

Standards
Tested in accordance to Australian Standards AS4145.2-2008

Finish
Satin Chrome Pearl SP
