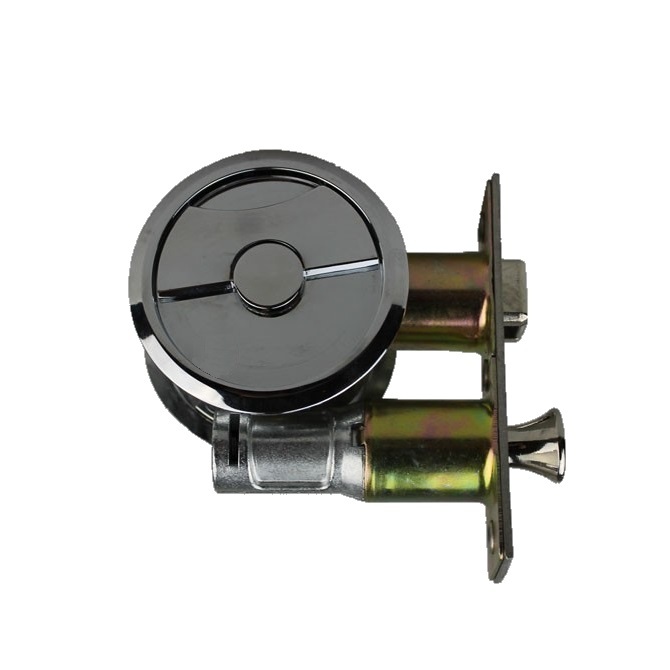

Lockwood Cavity Sliding Door Passage Latch Set

PLEASE NOTE: This item is Non-returnable. Upon placing your order, it CAN'T be cancelled or returned (unless faulty or damaged)

This is a non-stocked item which has a handling time of 10 business days after payment is made.

  • Lockwood's sliding door lock range is possibly the most innovative and aesthetically pleasing lock for a cavity sliding door in Australia. Combining elegance and ease of use, the Symmetry 7400 series is ideal for any home décor and security solution.
  • Not only will the internal bathroom or lounge room sliding door have a contemporary look, but the interconnecting door from the garage can be fitted with a key lockable entrance-set for security.

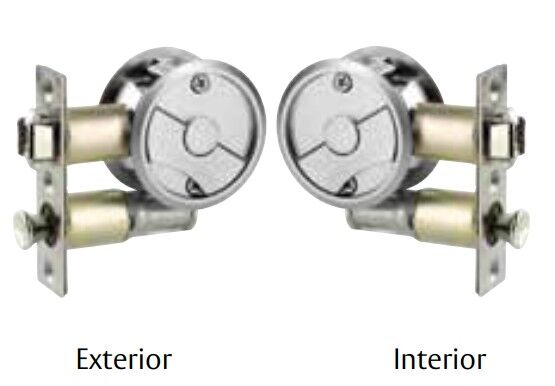

7410 Passage Latch Set Function:

  • Outside - Locked or unlocked by turn-plate
  • Inside - Locked or unlocked by turn-plate

Key Features of the Lockwood Cavity Sliding Door Lock Range

  • Designed in Australia for specific Australian market conditions

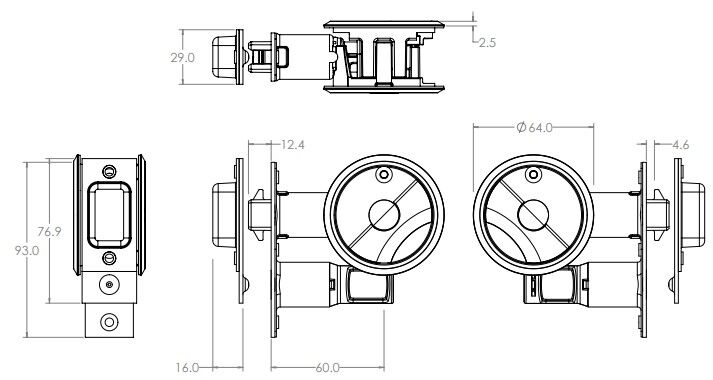

  • Easily fitted into a standard 54mm door preparation with a 60mm backset
  • Fitted flush against the panel of the sliding door for full recess into the door cavity

Key lockable solution

  • Key locking and turn function protects the secondary external application for an interconnecting sliding cavity door
  • Australian standards compliance AS41452.2-2008: Tested to exceed 30,000 turn cycles withstanding 3 kN of pull force

Retractable door pull

  • Revealed after extensive research, the sliding cavity door lock features an innovative retractable door pull which highly appeals to the discerning home owner


  • Door Thickness: 32mm to 45mm for timber doors
  • Furniture plate: Zinc Alloy
  • Bolt: Nickel Plated Zinc (12.4mm projection)
  • Bolt Beak: Stainless Steel
  • Front End Plate: Stainless Steel
  • Retractable Door Pull: Zinc Plated
  • Strike Plate: Stainless Steel
  • Strike Box: Zinc Plated
  • Keys: Brass
  • Requires spacer ring (included)
  • Finish: Bright Chrome CP


  • Standard 54mm prep hole
  • Standard 60mm latch backset
  • Standard 25mm cross-drill
  • Retractable door pull


  • Tested in accordance to Australian Standards AS4145.2-2008

Barcode # 9311847131729
Brand Lockwood
