Lockwood Classroom Door Handle Lever Set

PLEASE NOTE: This item is Non-returnable. Upon placing your order, it CAN'T be cancelled or returned (unless faulty or damaged)

This is a non-stocked item which leaves the warehouse in 10 business days after payment is made.

Classroom Lever suitable for use in school classroom applications.

Classroom Lever Function - Outside lever locked and unlocked by key. Inside lever always unlocked.

  • Designed as a non handed, easy to install lockset.
  • Suitable for residential and commercial applications including office partitioning.


  • Commercial grade classroom leverset
  • Compatible with most restricted keying systems
  • Levers and roses made of high purity zinc alloy
  • Baffle (shroud) prevents over-tightening when installing
  • Brass latch bolt with 13 mm projection

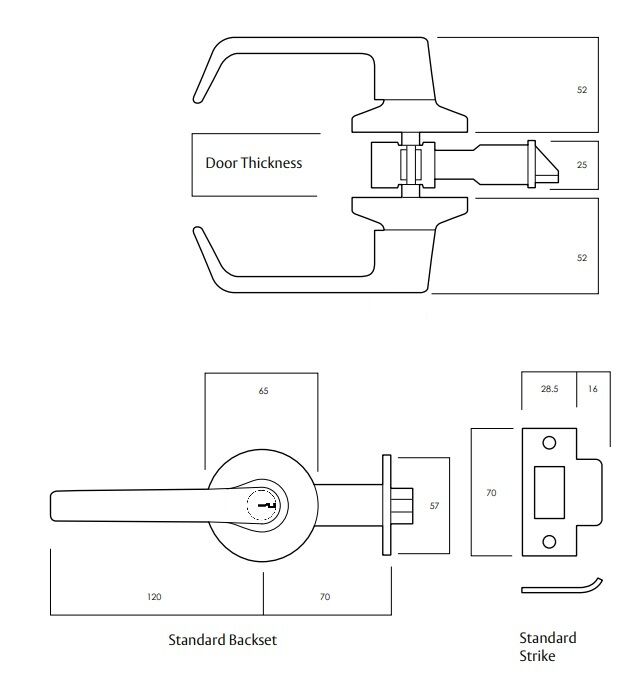

  • Door thickness: 32mm - 45 mm
  • Backset: 70 mm
  • Max. Lever / Knob Projection (distance does not include turnsnib): 52 mm
  • Strike: 70 mm x 28.5 mm x 1.2 mm
  • Latch: 70 mm backset
  • Latch Face Plate: 57 mm x 25 mm
  • Cylinder: LW4 profile
  • Door Handing Field: Adjustable
  • Rose: 65 mm
  • Finish: Satin Chrome

Standards and Compliance:

  • Successfully tested to 2 hours on fire door assemblies in accordance with Australian Standard AS1905.1:2005 Fire Resistant Doorsets.
Barcode # 9311847187467
Brand Lockwood
