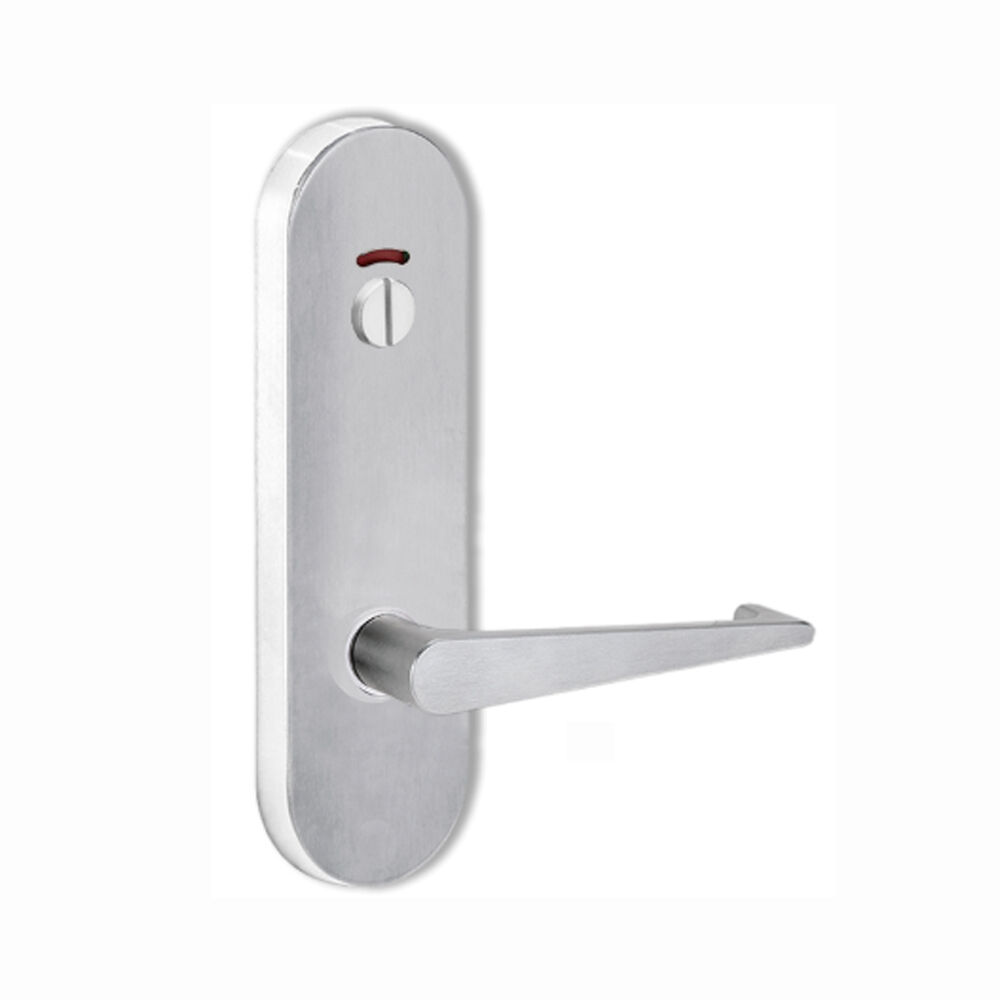

Lockwood Door Handle Round End Plate With Privacy Indicator Emergency Turn 133
2814/133SC

PLEASE NOTE: This item is Non returnable. Upon placing your order, it CAN'T be cancelled or returned (unless faulty or damaged)

This is a non-stocked item which leaves the warehouse in 8 business days after payment is made.

Door Lever can be found on all types of doors including exterior doors of internal doors, residential and commercial buildings.

Door Lever Function - Lever design provides an easier grip when opening a door and it prevents your hand from slipping.

Features:

• Privacy indicating emergency turn
• External plate with concealed fixing (screws included)
• Lever Only
• Supplied in trade pack
• Non-handed

Specification:

• Lockwood lever: 133
• Finish: Satin Chrome
• Cylinder Pitch: 64mm
• Fixing Centres: 148mm
• Plate Dimensions
  • Height: 166mm
  • Width: 48mm
  • Depth: 12mm

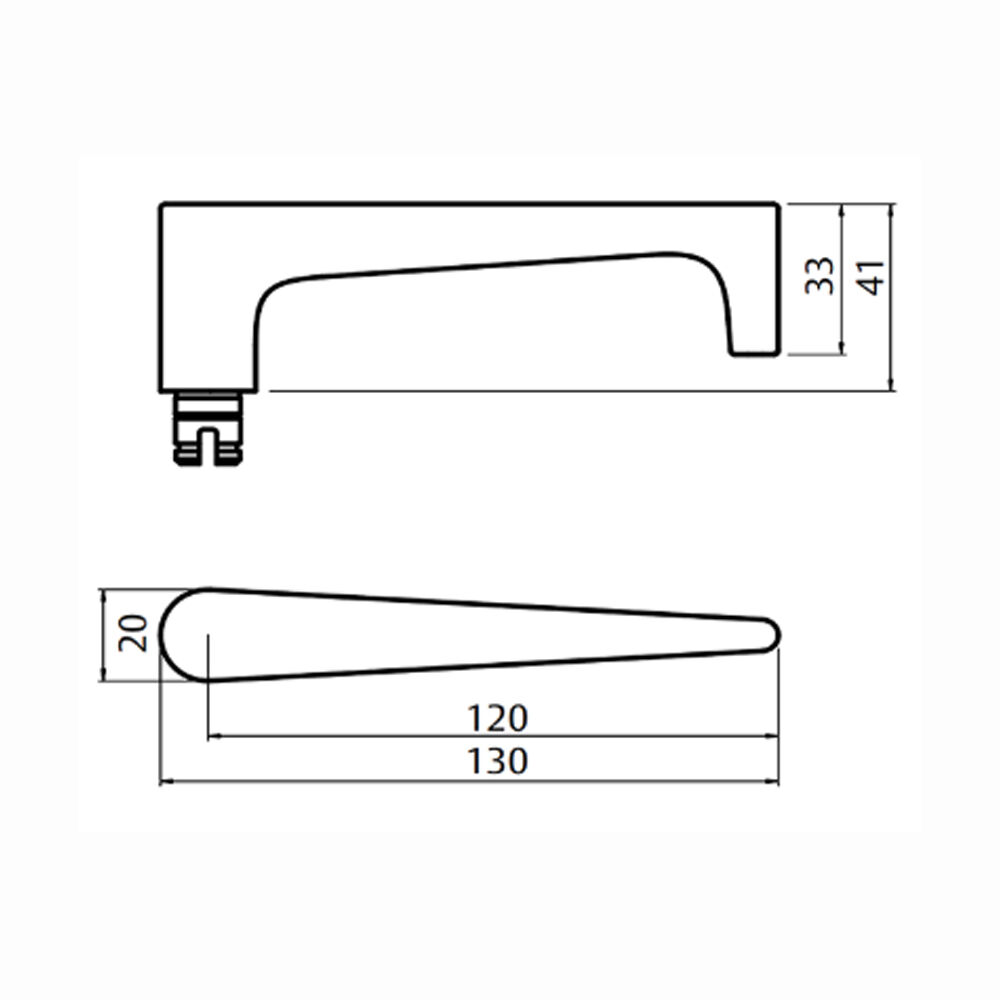

• Lever Dimensions
  • Length: 130mm
  • Projection: 53.5mm
  • Finger Clearance: 40mm

Note:

• When using plate configurations that feature turns a unique mechanism is employed that automatically adjusts the length of the tail bar to suit a particular door thickness.
• Handing
  Symmetrical levers may be reversed by removing the stop screw.
• Fixing
  Plates are designed to fit back to back. If outside plate is specified with concealed fixing, then the inside plate must be visible fixed.External plates are supplied with fixing screws to suit door thickness between 32mm and 45mm.

""

"
