Lockwood 931 Series Passage Door Lever Set
931SC

Passage door lever are ideal for interior hallways, closets and other rooms that don't need privacy locks.

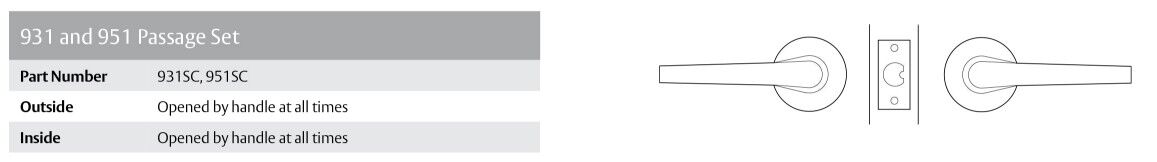

Passage Function - Both levers free at all times.

• Suitable for residential and commercial applications including office partitioning.
• Designed as a non handed, easy to install lockset.

Features:

• Commercial grade passage leverset.
• Both levers always free.
• Baffle (shroud) prevents over-tightening when installing.

Specifications:

• Material: Zinc Alloy
• Strike: 70mm x 28.5mm x 1.2mm
• Latch Face Plate: 57mm x 25mm
• Door Thickness: 32-45mm
• Backset: 70mm
• Max. Projection: 51mm
• Latch: 70mm Backset
• Door handing: Field adjustable
• Rose: 65mm
• Clutching Levers: No
• Cylinder: LW4 profile
• Lock Type: Tie bolt
• Finish: Satin Chrome

Protection:

• Fire Rated: Successfully tested to 2 hours on fire door assemblies in accordance with Australian Standard AS1905.1:2005 Fire Resistant Doorsets.
