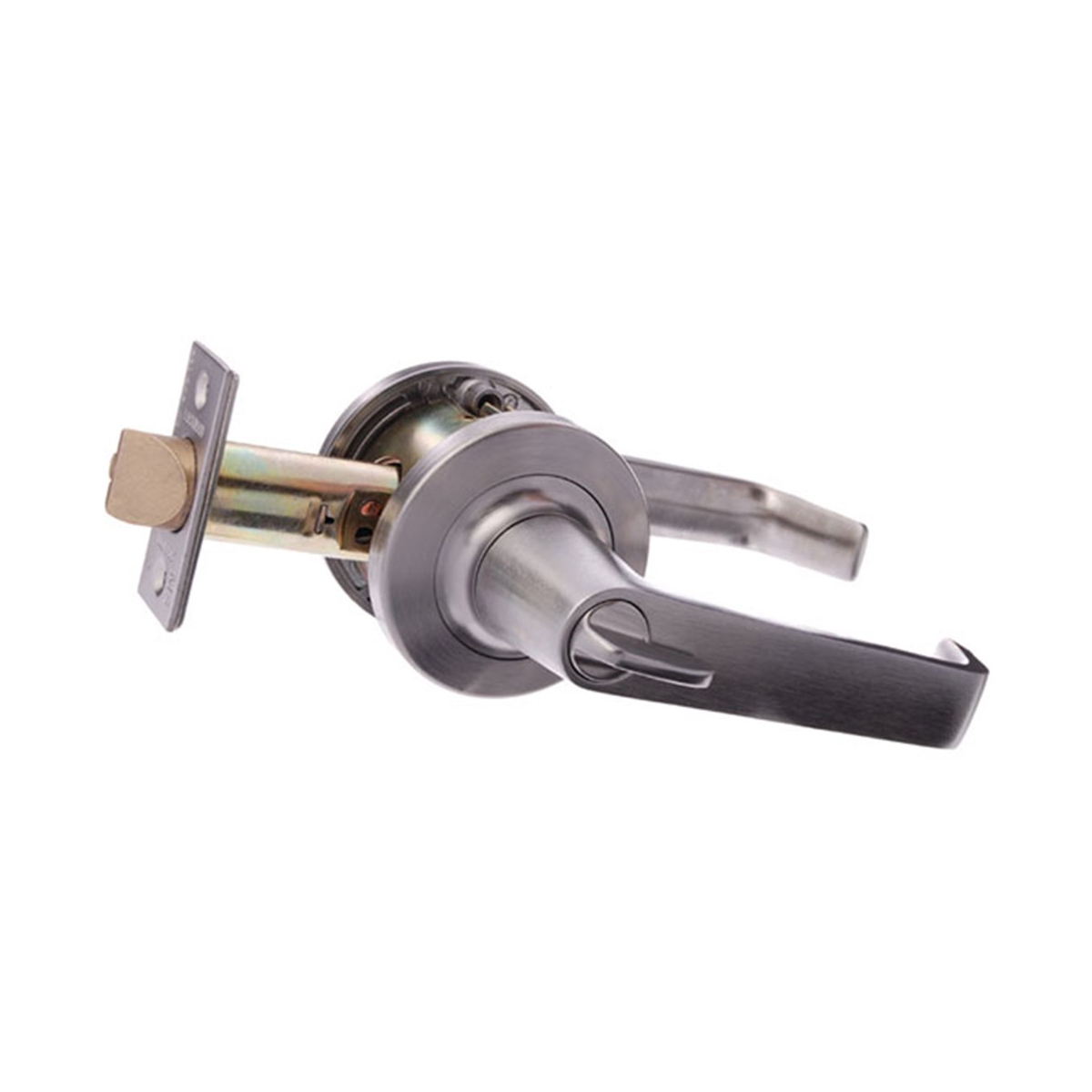

Lockwood Door Lever Privacy Set
952SC

PLEASE NOTE: This item is Non-returnable. Upon placing your order, it CAN'T be cancelled or returned (unless faulty or damaged)

This is a non-stocked item which has a handling time of 10 business days after payment is made.

Privacy used for internal doors that require locking. (e.g. bathrooms, bedrooms, and any room where privacy is needed)

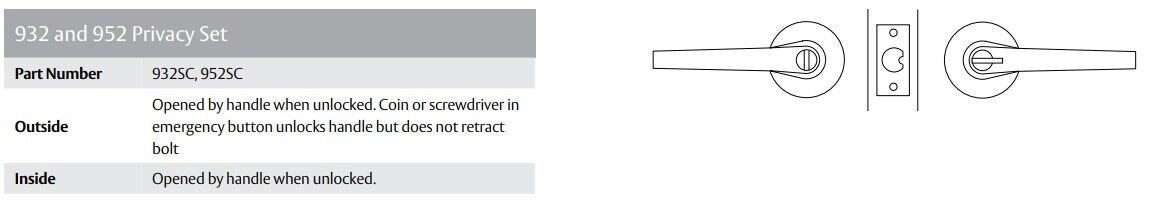

Privacy Function - can be locked by a button or a turn piece on the inside with no key function.

• Suitable for residential and commercial applications including office partitioning.
• Designed as a non handed, easy to install lockset.

Features:

• Commercial grade privacy leverset
• Outside emergency coin turn unlocks both levers
• Inside turn snib locks and unlocks both levers
• Levers and roses made of high purity zinc alloy
• Baffle (shroud) prevents over-tightening when installing
• Brass latch bolt with 13 mm projection

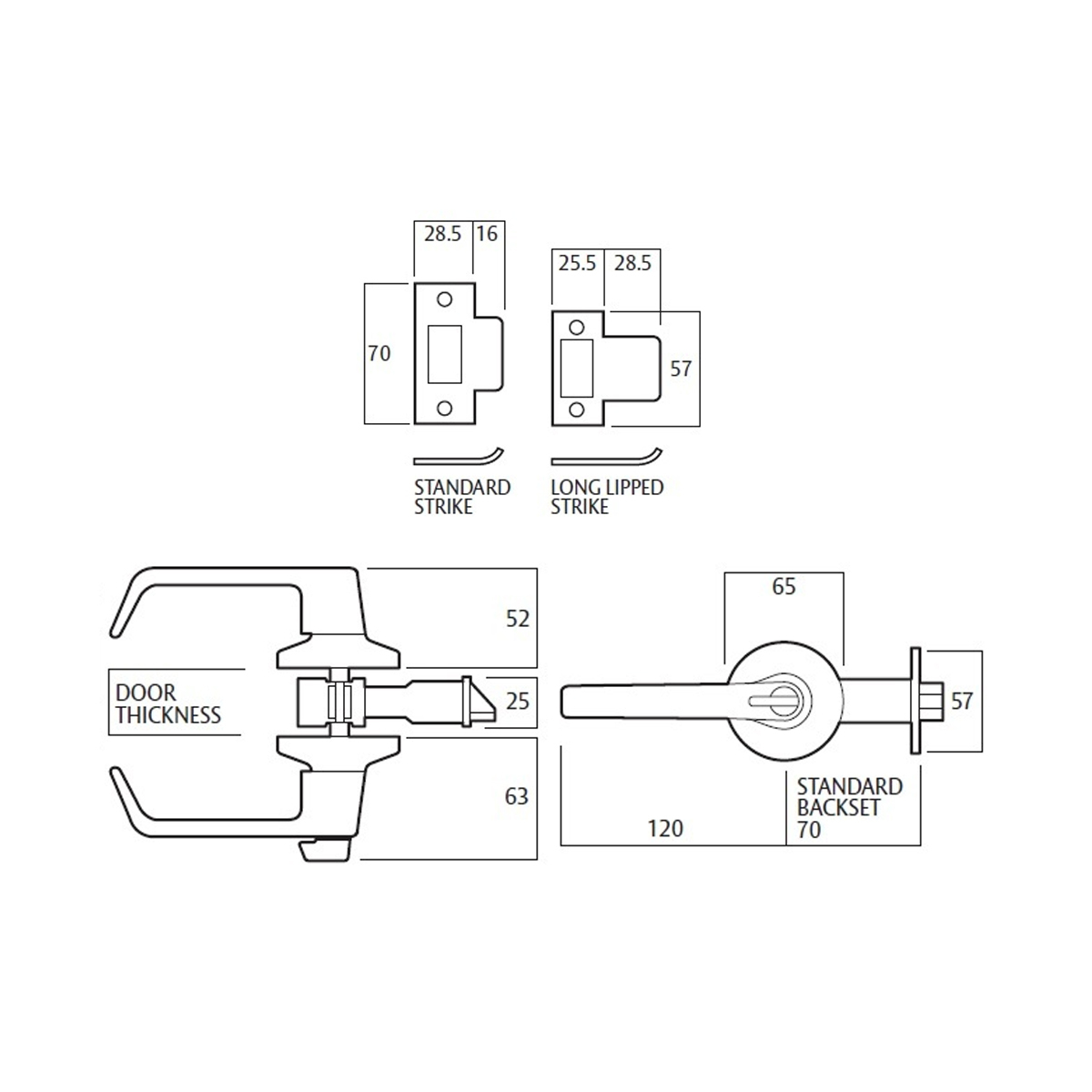

Specifications:

• Door thickness: 32-45mm
• Backset: 70mm
• Max. projection: 52mm
• Strike: 70mm x 28.5mm x 1.2mm
• Latch: 70mm backset
• Latch Face Plate: 57mm x 25mm
• Cylinder: LW4 profile
• Door Handing: Field adjustable
• Rose: 65mm
• Finish: Satin Chrome

Protection:

• Fire Rated: Successfully tested to 2 hours on fire door assemblies in accordance with Australian Standard AS1905.1:2005 Fire Resistant Doorsets.
