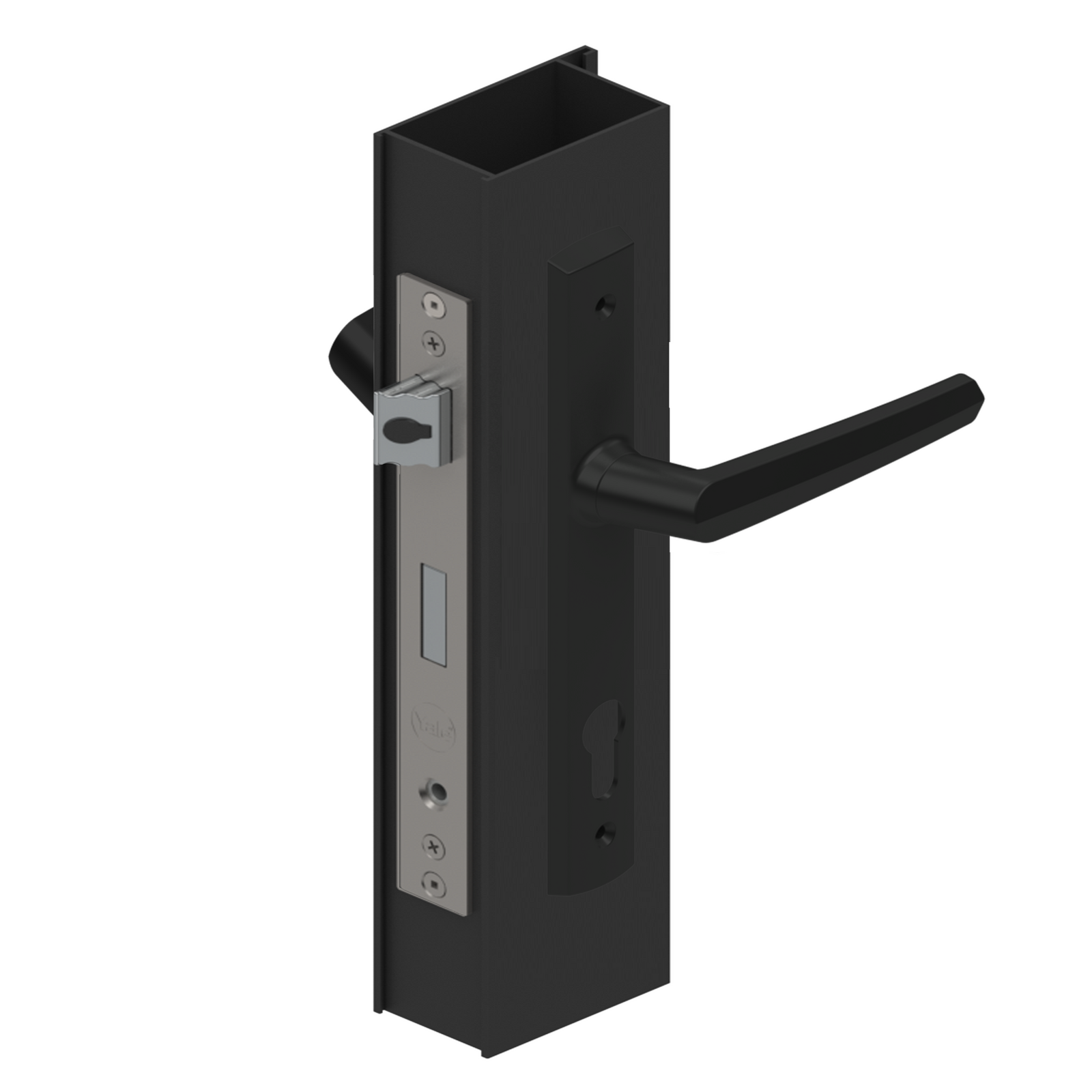

Yale Aria Induro Hinged Door Lock includes Lock, Aria Handles, Strike Plate and Cylinder

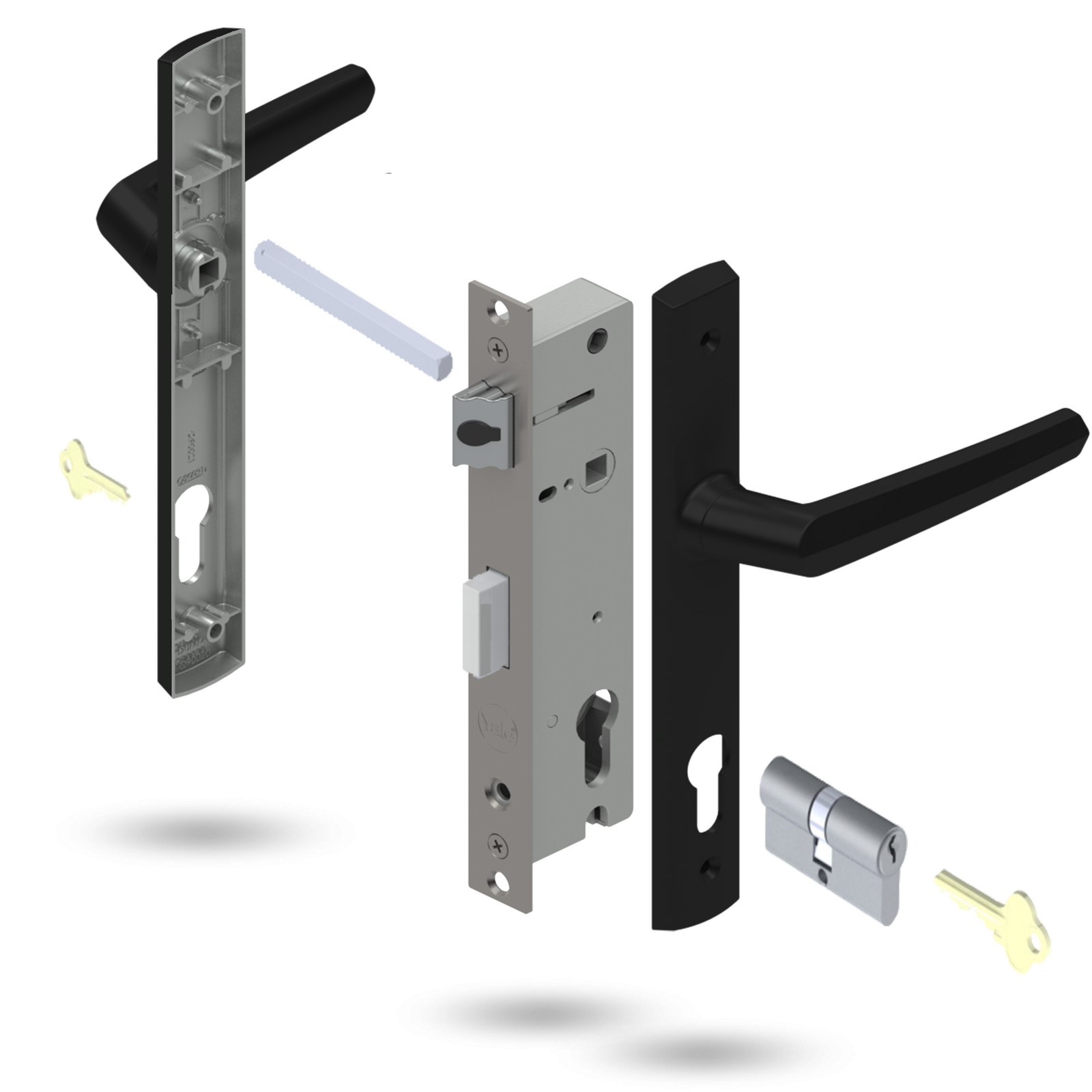

Includes:
- 1 x Lockwood Induro Mortice Lock 30mm Adj Throw Stainless Steel LW7130L *No Strike*
- 1 x Lockwood Optimum Strike Double Sided with Tongue (OPS001SS)
- 1 x Lockwood Door Handle Palladium Aria Lever On Long Plate Black (PL4/85/27BLK)
- 1 x Zanda Euro Double Cylinder 5 Pin (Key/Key) Keyed to Differ 60mm Brushed Nickel (1121.BN)

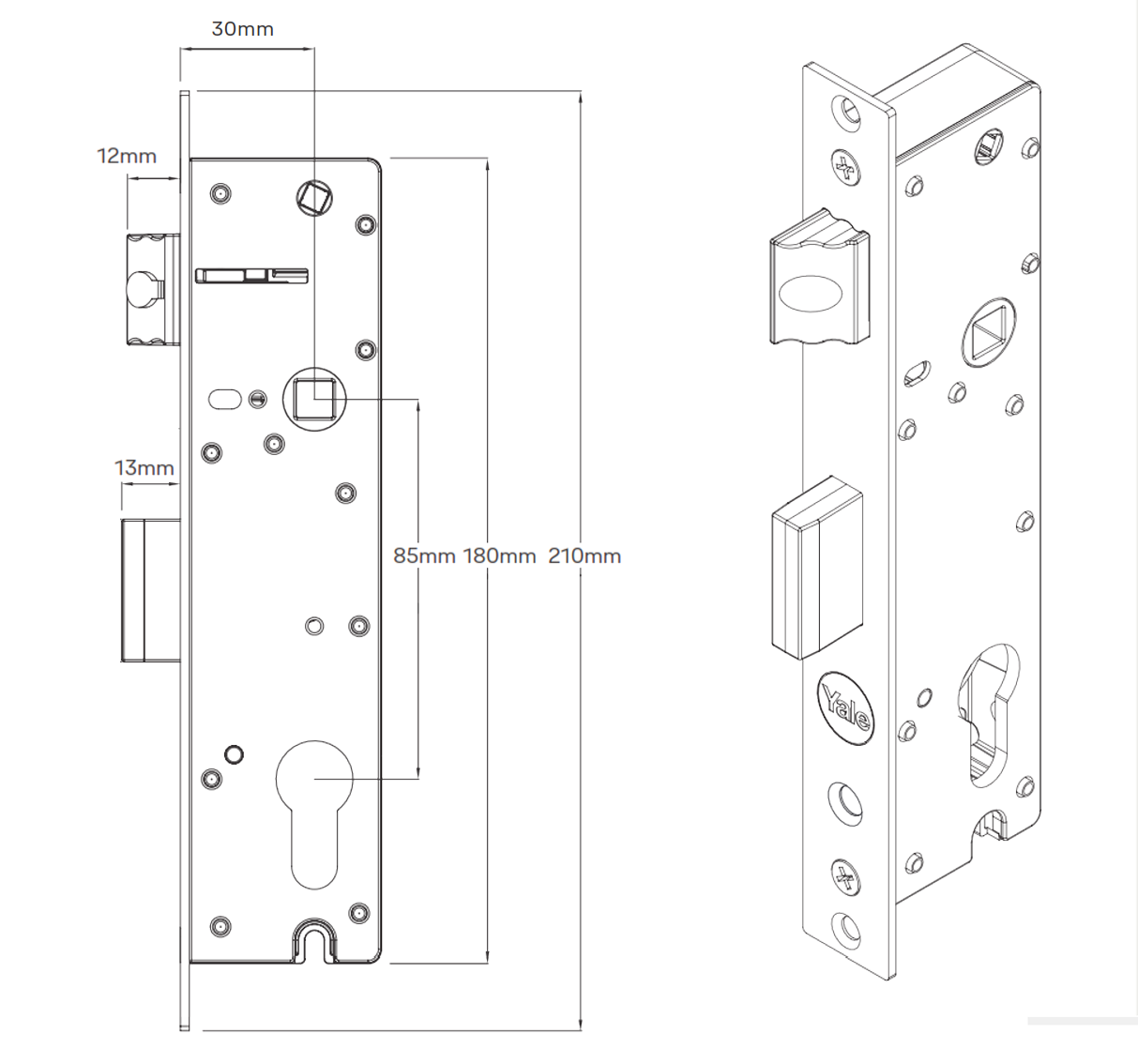

Lockwood Induro Mortice Lock
LW7130L
Please Note: Cylinder and Strike Plate not included.
Features:
- The Lockwood Induro hinged door multi-point mortice locks less cylinder.
- 2 point locking
- Supplied with 2 mm latch packer
- Designed for use in residential aluminium hinged or bi-fold doors
- Latch deadlocked with key
- The bolt is now selectable between default setting long throw (24 mm) and short throw (13 mm) with a simple selector feature to switch between settings
- Palladium (Xtra) Snib furniture is required in order to use the snib-lock function
- Passage mode gives convenient access from inside and outside without the need for a key
- Safety mode is activated and deactivated by operating the snib lever from inside and requires the key to unlock from outside.
- Handles locked securely from both inside and outside and requires key to unlock from either side
- Accepts fixed cam euro cylinder (not supplied).
- Accepts 7.6 mm or 8 mm spindle
- Achieves Australian Standards AS 4145.2-2008 Security Level S7 and Durability Level D7
Specifications:
- Backset: 30mm
- Latch Bolt Size: 12mm
- Bolt Throw Size: 24mm (selectable down to 13 mm)
- Door Thickness: 32mm to 45mm
- Face Plate Size: 210mm x 24mm
- Case Size: 180mm x 45mm
- Finish: Brushed Stainless Steel

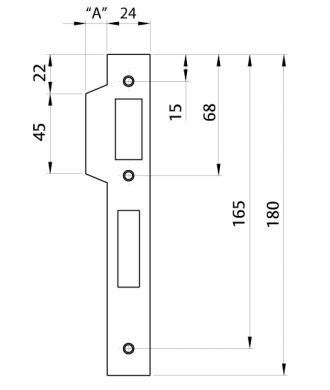

Lockwood Optimum Strike Double Sided with Tongue
OPS001SS
Description:
- Standard Optimum strike with 12 mm lip (A)
- Measure 180 (H) x 24 (W) x 1.5 (T) mm
- Finished in stainless steel

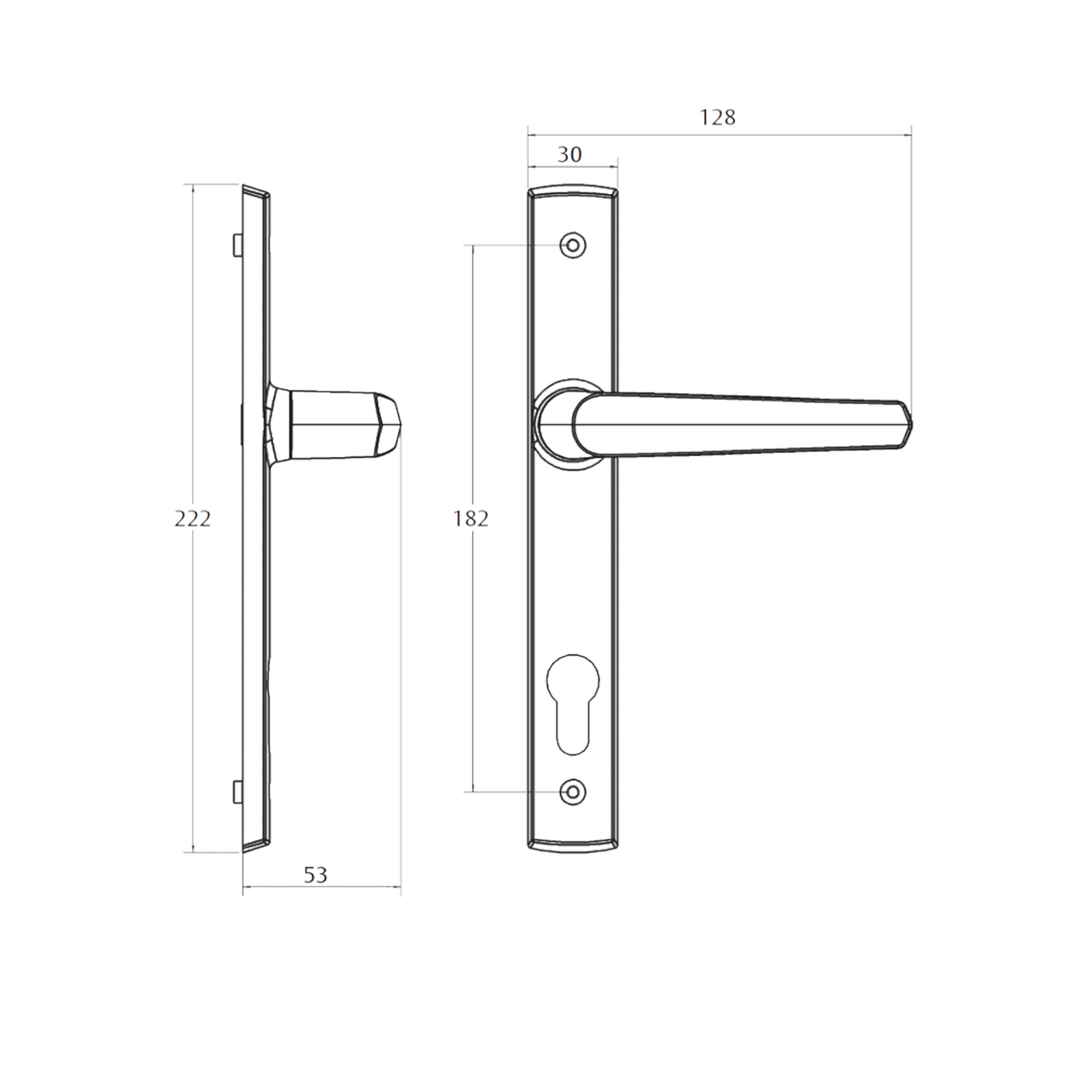

Lockwood Palladium Long Plate Door Furniture w/ Aria Lever
PL4/85/27BLK
The Palladium Series represents the highest standard in residential and semi-commercial door hardware and is brought to you through modern innovative designs, combined with quality manufacturing. A wide range of lever options is available to enable a common style throughout the home.
Features:
- Stylish range of contemporary non handed lever designs
- Range of available finishes.
- Solid metal lever escutcheon
- The Palladium Series mechanism incorporates a lever handle torsion spring and shuttle mechanism which provides a positive feel and increased product life
- All lever handles are reversible
- Includes 7.6 mm square stepped spindle
- Available in trade pack
- Lockwood Palladium door furniture is supplied as a complete set, with both the internal and external plates
- Suitability Residential and semi-commercial buildings
Specifications:
- Dimension: 222 x 31 x 9mm
- Handing: Easy, field selectable handing.
- Materials: All plates and levers in the Palladium Series are constructed from solid zinc die-cast.
- Fixing: Lockwood Palladium Series Door Furniture is a complete set, supplied with both the internal and external plates.
- Door Thickness: Minimum 32mm - maximum 45mm door thickness.
- Keying: Use with Euro profile cylinder.
- Finish: Black
- Lever: Aria #27

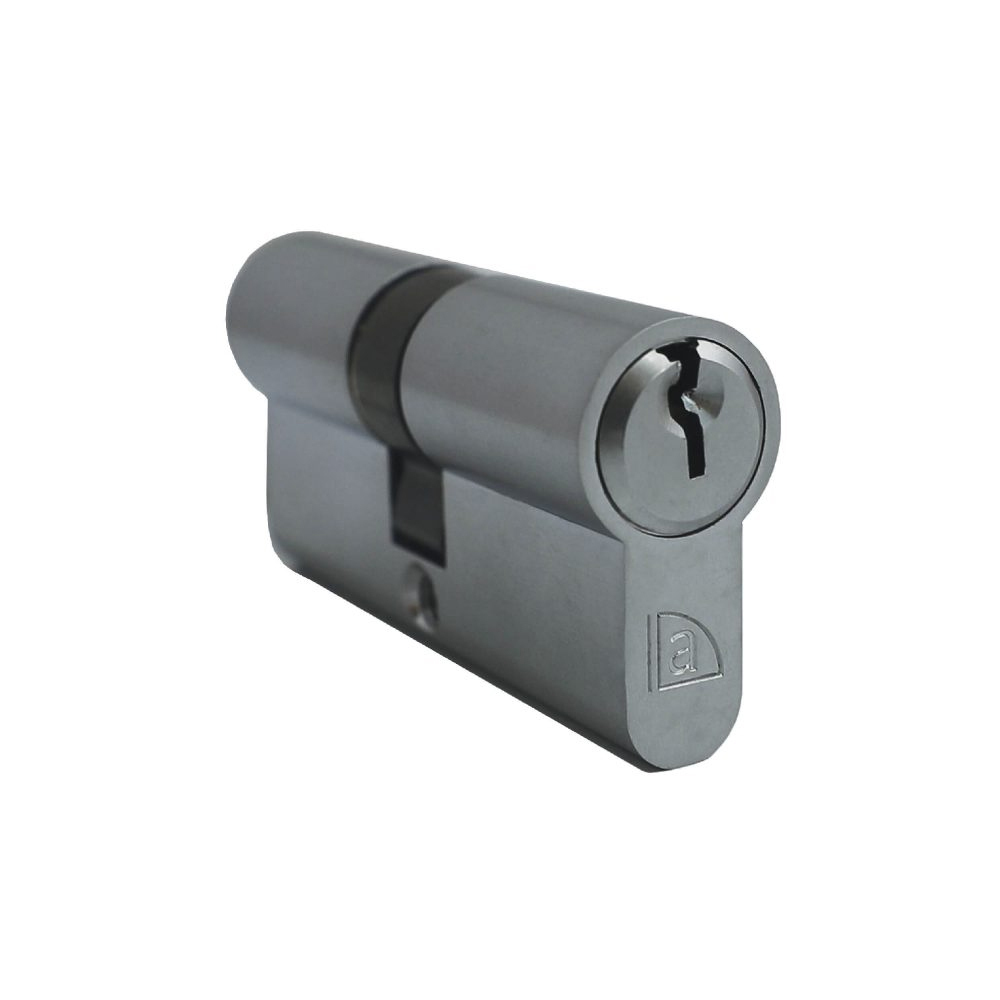

Zanda Euro Profile Double Cylinder
1121.BN
Features:
- Used with euro profile mortice locks, Zanda euro profile cylinder is renowned in the locksmithing industry for their top quality and ease of re-keying
- Quality stainless steel grub screws for quick easy re-keying
- Constructed from high quality extruded brass
- 5 Pin, standard C4 Profile
Specifications:
- Size: 60mm
- Keying: Keyed to Differ
- Function: Euro Double Cylinder (Key/Key)
- Finish: Brushed Nickel
