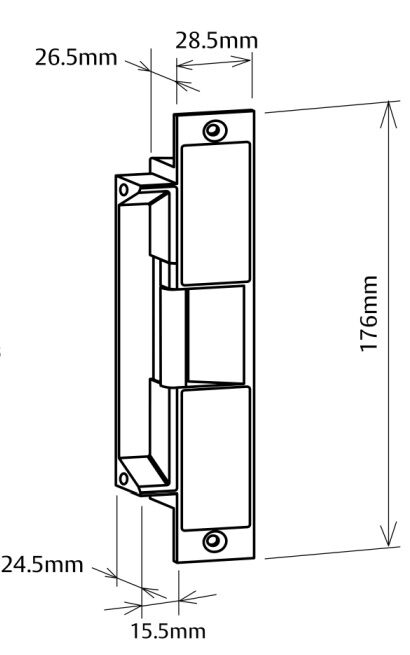

Lockwood Electric Strike 12VDC Fail Safe Non Monitored ES200-1
SKU : ASSES2001
YOU SAVE $341.89 (61%)
Lockwood Electric Strike Fail Safe Non Monitored
ES200-1
Electric Strike intended for door security in commercial & industrial applications with heavy traffic that require access control systems. Suitable for use on hinged doors to work with an extensive range of locks.
Electric Stike Function - replaces a standard door strike and connected to a power supply. An electric strike's ramped surface can, upon command, pivot out of the way when the lock on the door is in the locked position and the door is opened.
- The ES200 series electric strikes are high security products manufactured from stainless steel and designed for use with all access control systems. The strikes are suitable for use with hinged doors which require either fire or security control as part of a building management system.
- These strikes are flexible and can be changed from fail safe to fail secure, mounted on the left or right hand side of the door and are available in 12 or 24Vdc.
- They offer a strong, dependable and long-lasting electric strike solution.
Applications:
- High traffic areas
- Fire rated door sets
- Open in/open out doors
- Suitable for use with all access control systems
Features:
- Fail safe/fail secure changeable on site
- High security
- 4 Hour fire rating
- 1 million cycles endurance rating
- Cast stainless steel body
- Stainless steel locking pins
- Mounting kit supplied as standard
- TRICARE 5 Year Warranty
Specifications:
- Voltage: 12Vdc
- Current: 175 mA @ 12Vdc
- Solenoids: Solenoids are rated for continuous use
- Monitoring:
- Solenoid Monitor - 1 amp NO/NC microswitch
- Door/Latch Monitor - 1 amp NO/NC microswitch
- Holding Force: 850kg Static Strength Rating
- Endurance: Cycle tested to 1,000,000 operations
- Latch: Suitable for 15mm latch bolt with 3mm door gap
- Environment: Operational temperature range -20°C to +60°C
- Body: Solid Stainless Steel Construction
- Keeper: Stainless Steel
Standards and Compliance:
- S3 (Security) Australian Lock Standard (AS4145.2.1993)
- D3 (Durability) Australian Lock Standard (AS4145.2.1993)
- BS 5872 Approved
- Successfully fire rated up to 4hrs on fire door assemblies in accordance with AS1905.1. 2005 (Part 1: Fire resistant door sets)
- Approved to UL1034 (highest level)
- CE Approved
- C-Tick Certified
SKU | ASSES2001 |
Brand | Lockwood |
