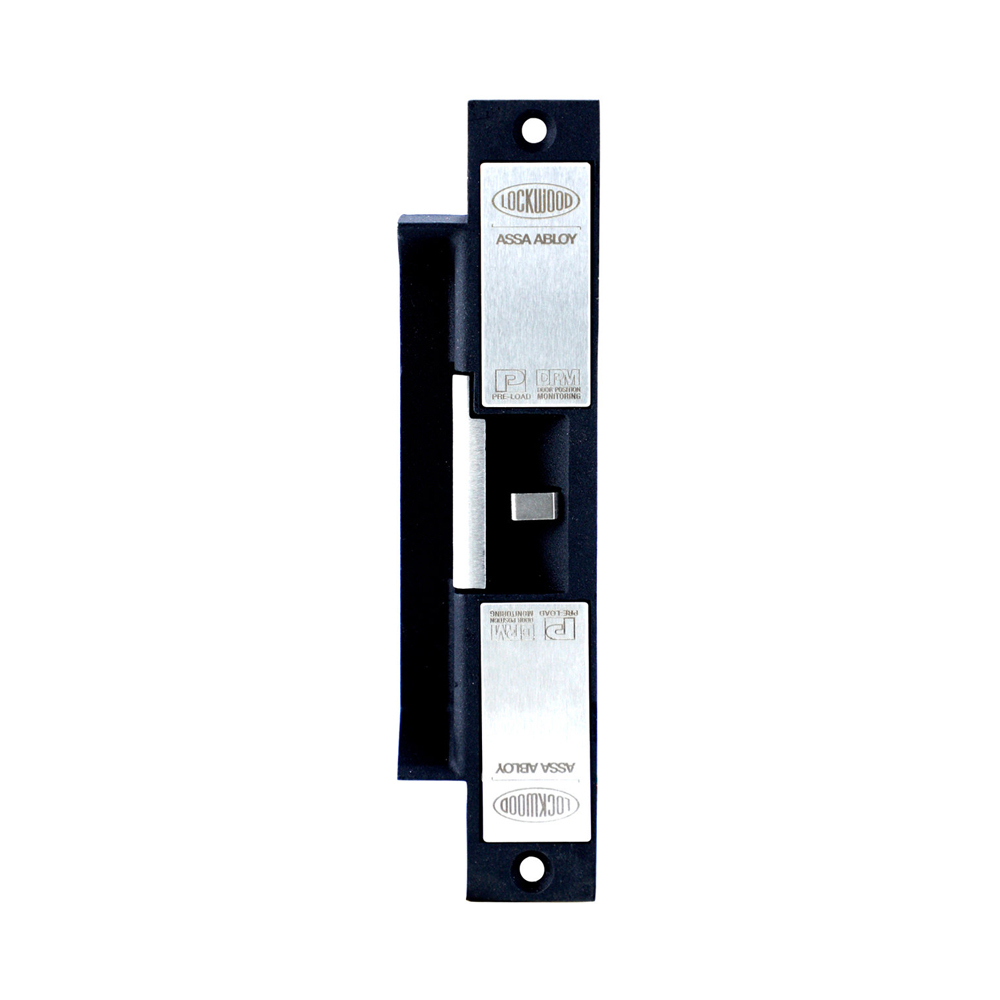

Lockwood Electric Strike Preload 10-30VDC Fail Safe Secure Monitored

Electric Strike intended for door security in commercial & industrial applications with heavy traffic that require access control systems. Suitable for use on hinged doors to work with an extensive range of locks.

Electric Stike Function - replaces a standard door strike and connected to a power supply. An electric strike's ramped surface can, upon command, pivot out of the way when the lock on the door is in the locked position and the door is opened.


  • Operates under pre load up to 25kg
  • Door Position Monitoring Output
  • Lock Status and Latch Position Monitoring Output
  • Easy field selectable fail safe/fail secure
  • Latch keeper is significantly quieter in operation
  • Weather resistant (IP54)
  • Pre-Drilled for Extension Lips
  • Mounting tabs included
  • Non handed
  • 5 Year Tricare Warranty (Padde Series)
  • Built in Protection Diode


  • High traffic areas
  • Doors subjected to side load (pre load)
  • Fire rated door sets
  • Inward and Outward opening doors
  • Suitable for use with all access control systems


  • Voltage: 10 to 30VDC
  • Current: 250mA @ 12VDC, 130mA @ 24VDC
  • Monitoring: Solenoid (1 Amp NO/NC), Door/Latch (1 Amp NO/NC) Door Position (1 Amp NC)
  • Holding Force: 1300kg Static Strength Rating
  • Endurance: 1,200,000 cycles @ 25kg Pre-Load, 2,500,000 cycles without Pre-Load
  • Latching: Suitable for use with 15mm Latch and 3mm Door Gap
  • Environment: Operating Temperature range -20C to +60C, IP54 Rating
  • Body: Solid Stainless Steel Construction
  • Keeper: Stainless Steel
  • Latch: Suitable for 18mm latchbolt with 3mm door gap


  • S8 (Security) Australian Lock Standard (AS4145.2.2008)
  • D8 D8 (Durability) Australian Lock Standard (AS4145.2.2008)
  • For Australian fire door applications, this Electric lock has been successfully fire rated for up to 4 hours on fire door assemblies in accordance with AS1905.1.2015 (Part 1: Fire resistant door sets). With a fire resistance level of 4 hours in accordance with AS1530.4-2014. Contact the supplier for further details, such as door type and door thickness etc that may affect the fire door suitability and rating.
  • CE & UKCA approved (EMC, RoHS and REACH)
  • RCM compliant
Barcode # 9311847963948
Brand Lockwood
