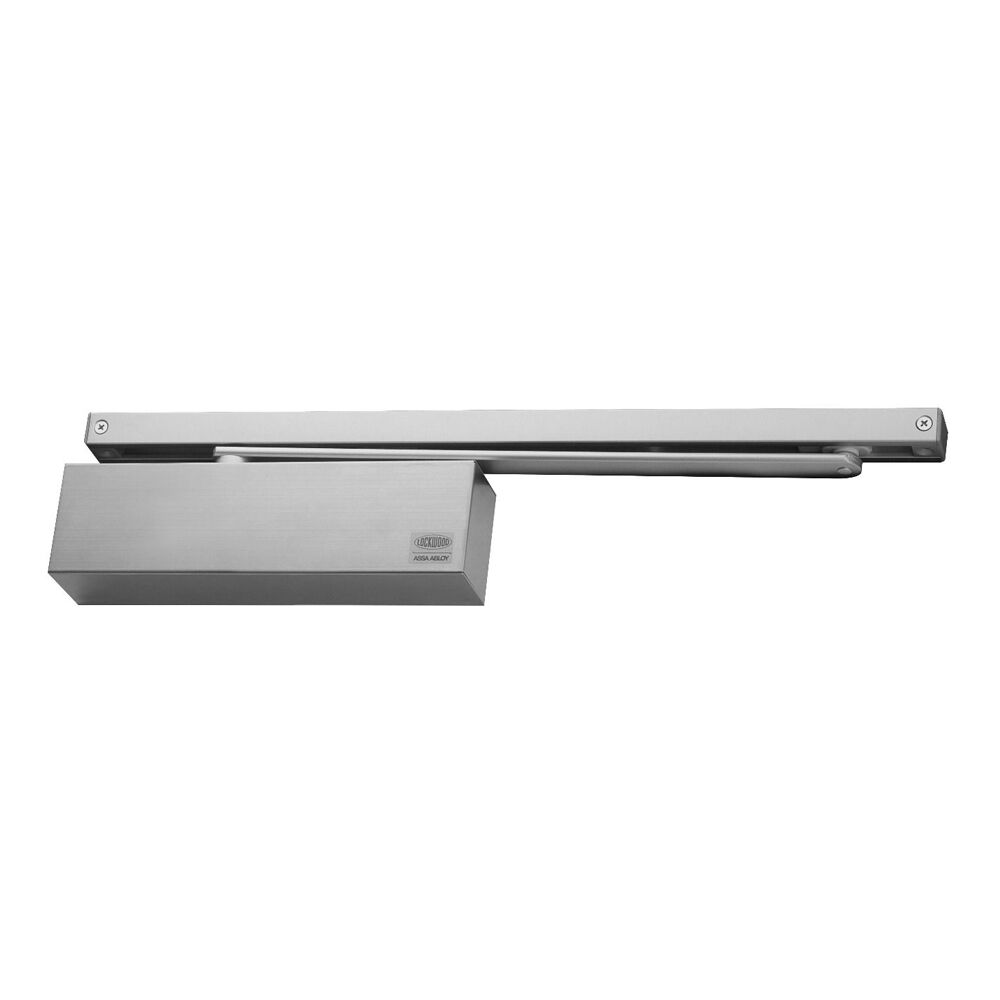

Lockwood EN 2-6 Door Closer with Slide Rail
7726SRDASSS

Door Closer is a mechanical device that closes a door in a controlled manner, preventing it from slamming.

Door Closer Function - A hydraulic device that is used to automatically close a door after it has been opened. Door closers are commonly used as a fire prevention measure, typically installed on fire doors, as well as helping to prevent draughts.

Features:

• EN 2–6, accommodating door weights from approximately 40 kg to 100 kg
• Adjustable delayed action for controlled closing, ideal for accessibility
• Adjustable backcheck to prevent door damage from excessive opening force
• Adjustable hold-open feature up to 130°, allowing doors to remain open as needed
• Suitable for both left and right-hand doors
• Supports regular, parallel, and over-door mounting configurations
• Provides a clean, aesthetic appearance with reduced door swing interference

Specifications:

• Length: 266mm
• Width: 55mm
• Height: 81mm
• Mounting: Suitable for both push and pull side installations
• Speed Controls: Adjustable closing and latching speed valves with overload protection
• Adjustable Closing Speed: Yes
• Adjustable Latching Speed: Yes
• Has Backcheck: Yes
• Has Delay Action: Yes
• Has Holdopen: No
• Has Slide Arm: Yes
• Parallel Arm Bracket Included: No
• Spring Strength: EN2-6
• Fire Rated: Yes, 4 Hours
• Suits: Pull Side Of Door
• Finish: Satin Stainless Steel

Ratings / Compliance

• Fire Door Compliance: Approved for use on fire doors up to 4 hours, in accordance with AS1905.1:2005.
• Ideal For: High-traffic areas such as schools, hospitals, and facilities requiring accessibility features.
• Note: Hold-open function is not approved on fire doors.
