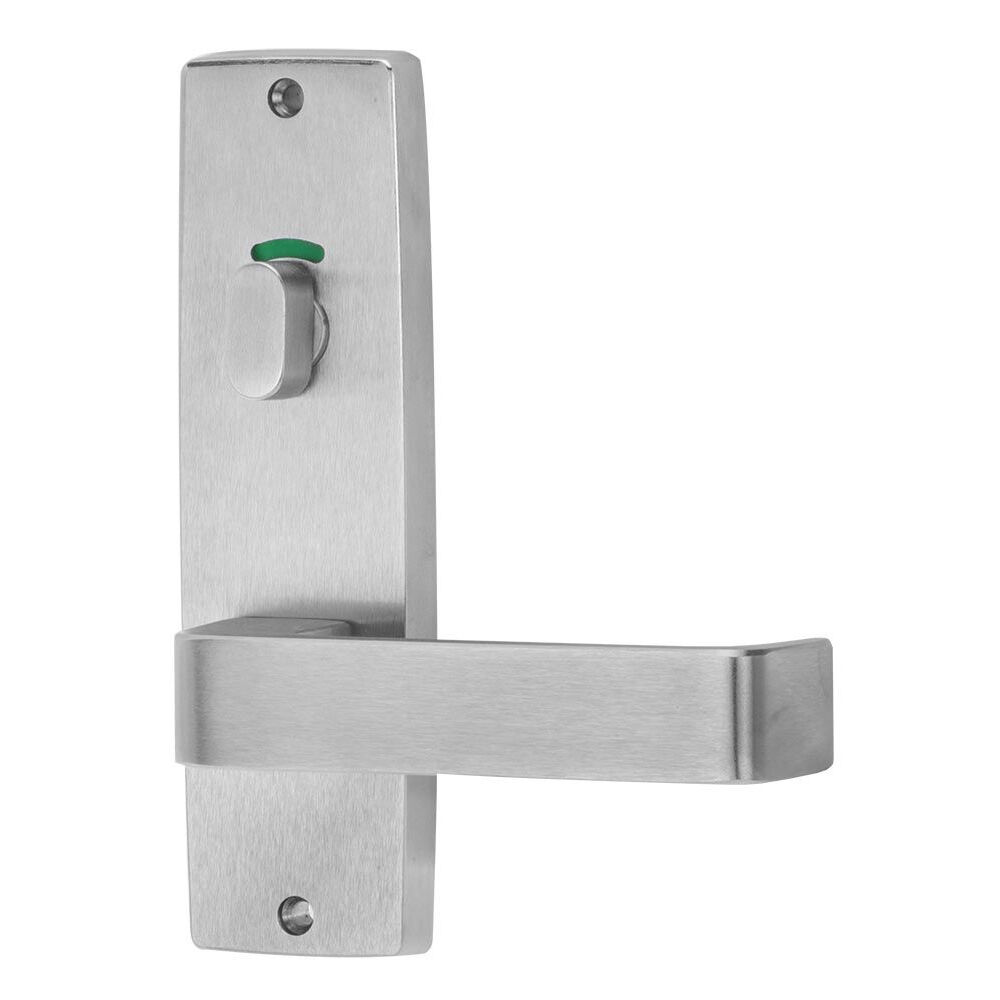

Lockwood Square End Plate with Privacy Indicator Turn & 90 Lever
1916/90SC

PLEASE NOTE: This item is Non-returnable. Upon placing your order, it CAN'T be cancelled or returned (unless faulty or damaged)

This is a non-stocked item which leaves the warehouse in 8 business days after payment is made.

Plate with Turn & Lever is commonly used on internal privacy doors in residential and commercial settings, offering a clean aesthetic and secure, tamper-resistant design.

Plate with Turn & Lever Function - provides a sleek, tamper-resistant installation ideal for internal privacy doors.

Features:

• Lockwood lever 90
• Internal plate with visible fixings (screws not included)
• Privacy indicating oval turn
• Cylinder pitch 64mm
• Fixing centres 148mm
• Non-handed

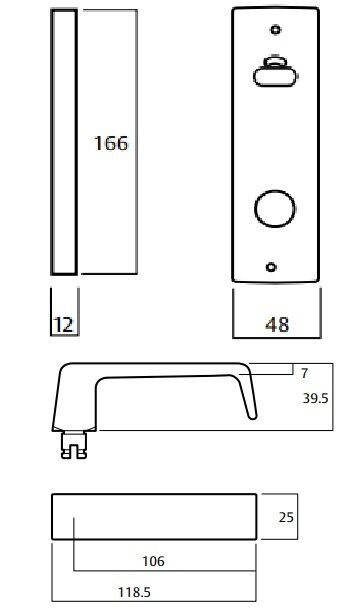

Specifications:

• Plate Dimensions:
  • Height: 166mm
  • Width: 48mm
  • Depth: 12mm
• Lever Dimensions:
  • Length: 118.5mm
  • Projection: 52mm
  • Finger clearance: 45.2mm
• Handing: Symmetrical levers may be reversed by removing the stop screw
• Fixing: Plates are designed to fit back to back. If outside plate is specified with concealed fixing, then the inside plate must be visible fixed
• Door Thicknes: 32mm - 45mm
• Finish: Satin Chrome
