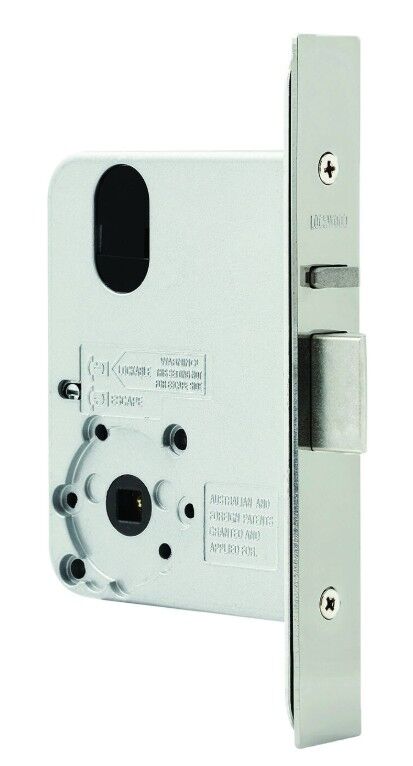

Lockwood Fluid Exit Device Mortice Lock

Panic Exit Device is used on doors in public buildings to provide a quick and easy means of exiting a building in the event of an emergency, such as a fire or other life-threatening situations.

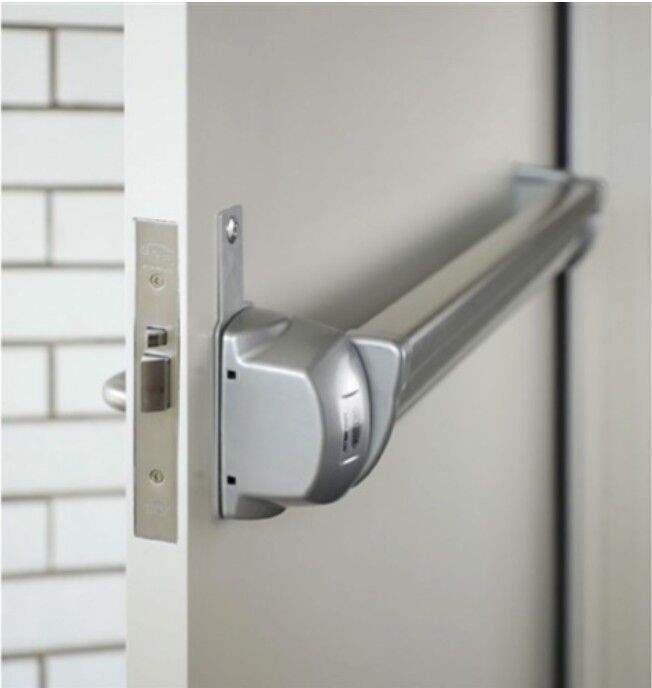

Panic Exit Device Function - Operated by a horizontal push bar, which when pushed in a downward arc withdraws either the bolts or latch, releasing the door for immediate escape in the event of an emergency.


  • Includes panic bar and mortice lock (external handle ordered separetely)
  • Handing is field reversible
  • Compatible with 570 Cylinder type and the ability to adapt to most master key systems.
  • Provides for the fundamental means of escape whilst offering a completely unique locking mechanism and design aesthetic


  • Length:
    • 900mm
    • 1200mm

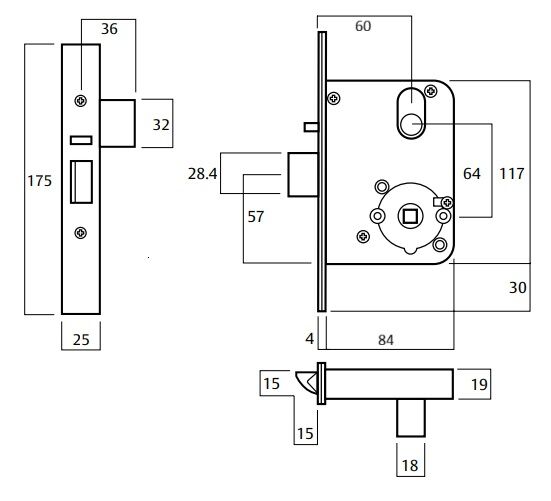

  • Backset: 60mm
  • Door Thickness: 32mm - 50mm
  • Width: 117mm
  • Projection: 87mm
  • Finish: Silver

Standards and Compliance:

  • Successfully tested on fire door assemblies in accordance with Australian Standard AS1905.1-2005. Fire Resistant Doorsets.
Brand Lockwood
