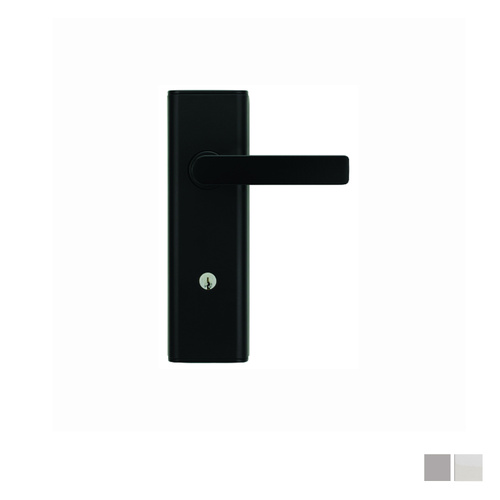

Lockwood Nexion Vision Mechanical Door Handle Lever 3
NXV12/1L3

PLEASE NOTE: This item is Non returnable. Upon placing your order, it CAN'T be cancelled or returned (unless faulty or damaged)

This is a non-stocked item which leaves the warehouse in 8 business days after payment is made.

Door Lever can be found on all types of doors including exterior doors of internal doors, residential and commercial buildings.

Door Lever Function - Lever design provides an easier grip when opening a door and it prevents your hand from slipping.

Features:

• SafetyRelease™ automatically unlocks the inside handle upon entry to minimise the risk of being locked in.
• Lockout Release automatically unlocks the outside handle when the inside handle or snib is operated.
• Factory set for left hand opening doors, easily changed for right hand opening doors.
• Can be keyed alike with other Lockwood door locks
• 2 Keys Included
• Quick Installation
• Case high purity zinc alloy
• Field selectable handing
• Backset 60mm standard
• 70mm backset latch available as an accessory
• Latch is stainless steel with13mm projection.
• Cylinders internal and external are 5 pin tumbler mechanism with 6 pin capability
• Brass cylinders and brass barrels
• Supplied in trade pack

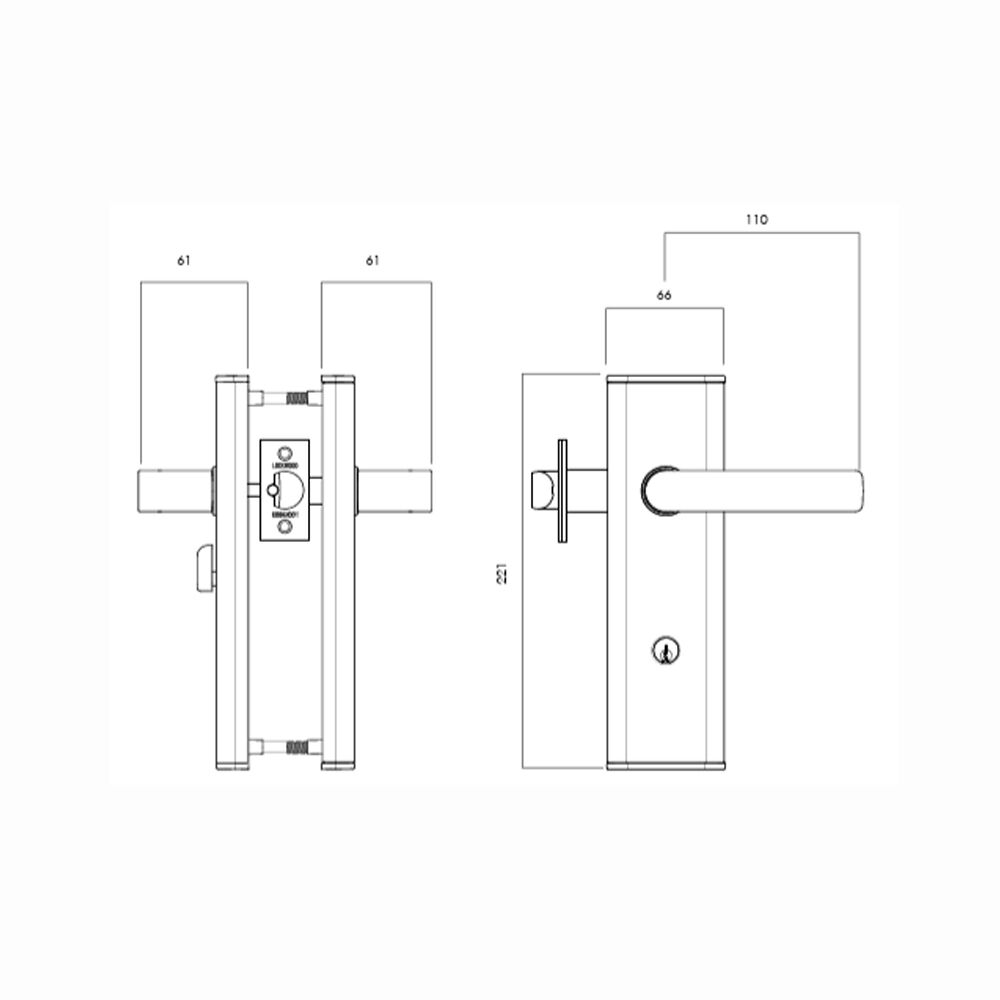

Specifications:

• Plate Dimension:
  • Height: 221mm
  • Width: 66mm

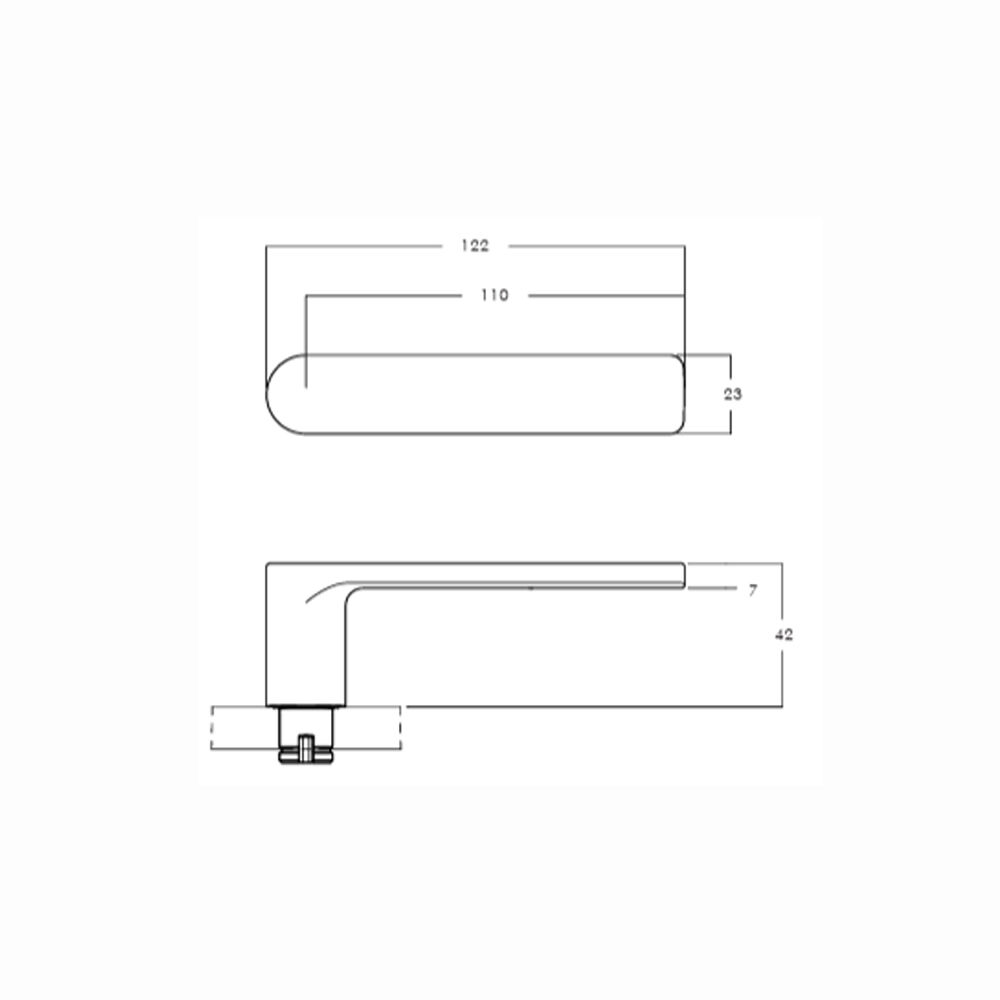

• Lever Dimensions:
  • Length: 122mm
  • Projection: 62mm
  • Finger clearance: 61mm
• Backset: 60mm
• Door Thickness: 32mm to 45mm
• Finish:
  • Chrome Plate
  • Matt Black
  • Satin Chrome

Standard and Compliance:

• Conforms to Australian Standard AS4145.2-2008 SL7D8C5K6
• SafetyRelease™ automatically unlocks the internal knob upon entry minimising the risk of being locked in.
• Kinetic Defence® is bump and pick resistant.
