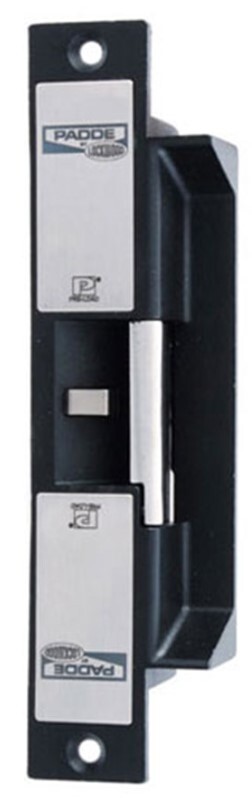

Padde By Lockwood Series Electric Strike with 25kg pre load
ES9000-060

NOTE: This is a non-stocked item and has a handling time of ten(10) business days after payment has been cleared. Please DO NOT purchase if you require this item urgently.

Electric Strike intended for door security in commercial & industrial applications with heavy traffic that require access control systems. Suitable for use on hinged doors to work with an extensive range of locks.

Electric Stike Function - replaces a standard door strike and connected to a power supply. An electric strike's ramped surface can, upon command, pivot out of the way when the lock on the door is in the locked position and the door is opened.

  • A high security product manufactured from solid stainless steel and designed to be used with most access control systems.
  • 4 hour fire rating. And Australian Government listed.
  • Designed, developed and manufactured in Melbourne.
  • Overcomes the real life issue of side pressure, commonly known as pre-load, easily opening with up to 25kg of pre-load applied to the strike. Pre-load is commonly caused by pulling on a door before it unlocks, by the weight of warped or drooping doors or by differential air pressure created by heating and cooling systems.

Features:

  • Includes lip holes
  • Operates under pre-load up to 25kg
  • 4hrs fire rating when used with an approved door set
  • Suitable for use on hinged doors with fire or security requirements
  • Field selectable fail safe / fail secure
  • Equipped with a silencer pad on the keeper which significantly reduces noise when the strike is operated
  • Fully monitored strike locked and door closed status
  • Australian designed and made Approvals / Certifications C-Tick & CE compliant.
  • Solenoid rated for continuous use
  • Built in protection diode.
  • Mounting tabs as supplied standard
  • Weather resistant (IP54)
  • Solenoid monitor - 1 amp NO/NC microswitch
  • Door/latch monitor - 1 amp NO/NC microswitch
  • Stainless steel striker
  • Suitable for 15 mm latch and 3 mm door gap
  • 3 hardened locking pins.
  • Solenoid can be continuously powered
  • Self adhesive installation template
  • 1300kg static strength rating
  • 1,200,000 cycles endurance rating @ 25kg pre-load

Specifications:

  • Current: 250mA@12V DC - 130mA@24V DC
  • Drilled for Lip Extension: Yes
  • Field Selectable Fail Safe/Fail Secure: Yes
  • Holding Strength: 1300kg
  • IP Rating: 54
  • Monitored Latch: Yes
  • Monitored Solenoid: Yes
  • Operates Under Pre-load up to: 25kg
  • SCEC Endorsed: Yes
  • Working Voltage: 10V~30V DC
  • Fire Rated: Yes
SKU ASS109001060
Barcode # 9340116077772
Brand Lockwood
