Lockwood Push and Pull Plate
214CONPPSS

PLEASE NOTE: This item is Non-returnable. Upon placing your order, it CAN'T be cancelled or returned (unless faulty or damaged)

This is a non-stocked item which leaves the warehouse in 4 business days after payment is made.

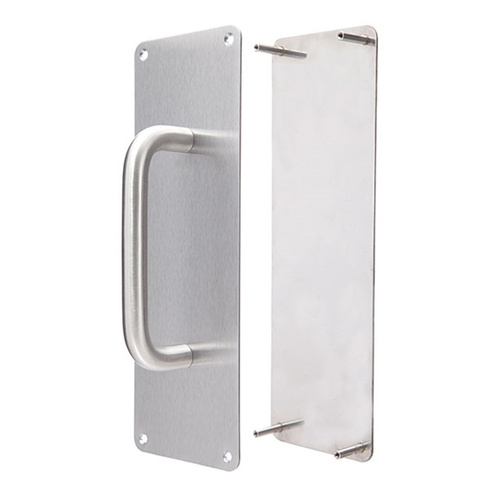

Pull and Push Plate commonly used in high-traffic places like auxiliary vestibule doors or large restrooms.

Pull and Push Plate Function - pushing or pulling the handle engages individual leverage and causes the axis to rotate. This unlocks the door. The handle is returned to its original position by the lock's spring.

Features:

• Concealed fixing exterior plain push plate
• Visible fixing interior handle on plate
• Stainless steel construction
• Supplied with fixing screws

Specifications:

• Door Thickness: 35mm - 45mm
• Plates Measures: 300mm x 100mm x 2mm
• Radius Corners: 10mm
• Finger Clearance: 40mm
• Material: Stainless Steel
• D-Handle Length: 170mm
• D-Handle Diameter: 17.5mm
• Fixing: Concealed Push - Visible Pull
• Lever/Knob Projection From Plate: 54mm
• Finish: Satin Stainless Steel
