Lockwood Square End Plate Privacy Disabled Turn & 180 Lever
1941/180SC

PLEASE NOTE: This item is Non-returnable. Upon placing your order, it CAN'T be cancelled or returned (unless faulty or damaged)

This is a non-stocked item which leaves the warehouse in 8 business days after payment is made.

Square End Plate with Turn & Lever is commonly used in accessible public or commercial restrooms, such as in offices, healthcare facilities, schools, and public buildings.

Square End Plate with Turn & Lever Function - designed to allow users especially in accessible spaces like public restrooms to easily lock the door from the inside using a turn snib, while the outside displays an occupancy indicator for privacy awareness.

Features:

• Lockwood lever 180
• Internal plate with visible fixings (screws not included)
• Privacy indicating accessibility turn
• Non-handed

Specifications:

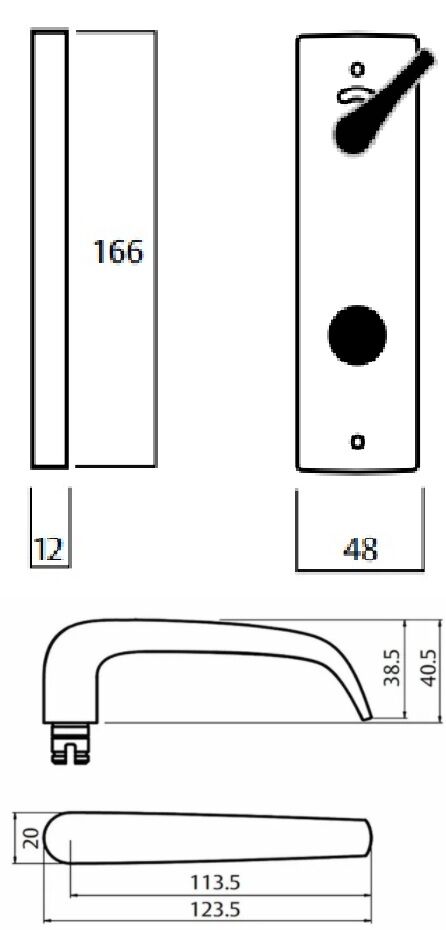

• Plate Dimensions:
  • Height: 166mm
  • Width: 48mm
  • Depth: 12mm
• Lever Dimensions:
  • Length: 123.5mm
  • Projection: 52.5mm
  • Finger clearance: 40mm
• Cylinder Pitch: 64mm
• Fixing Centres: 148mm
• Handing: Symmetrical levers may be reversed by removing the stop screw.
• Fixing: Plates are designed to fit back to back. If outside plate is specified with concealed fixing, then the inside plate must be visible fixed.
• Door Thickness: 32mm - 45mm
• Finish: Satin Chrome
