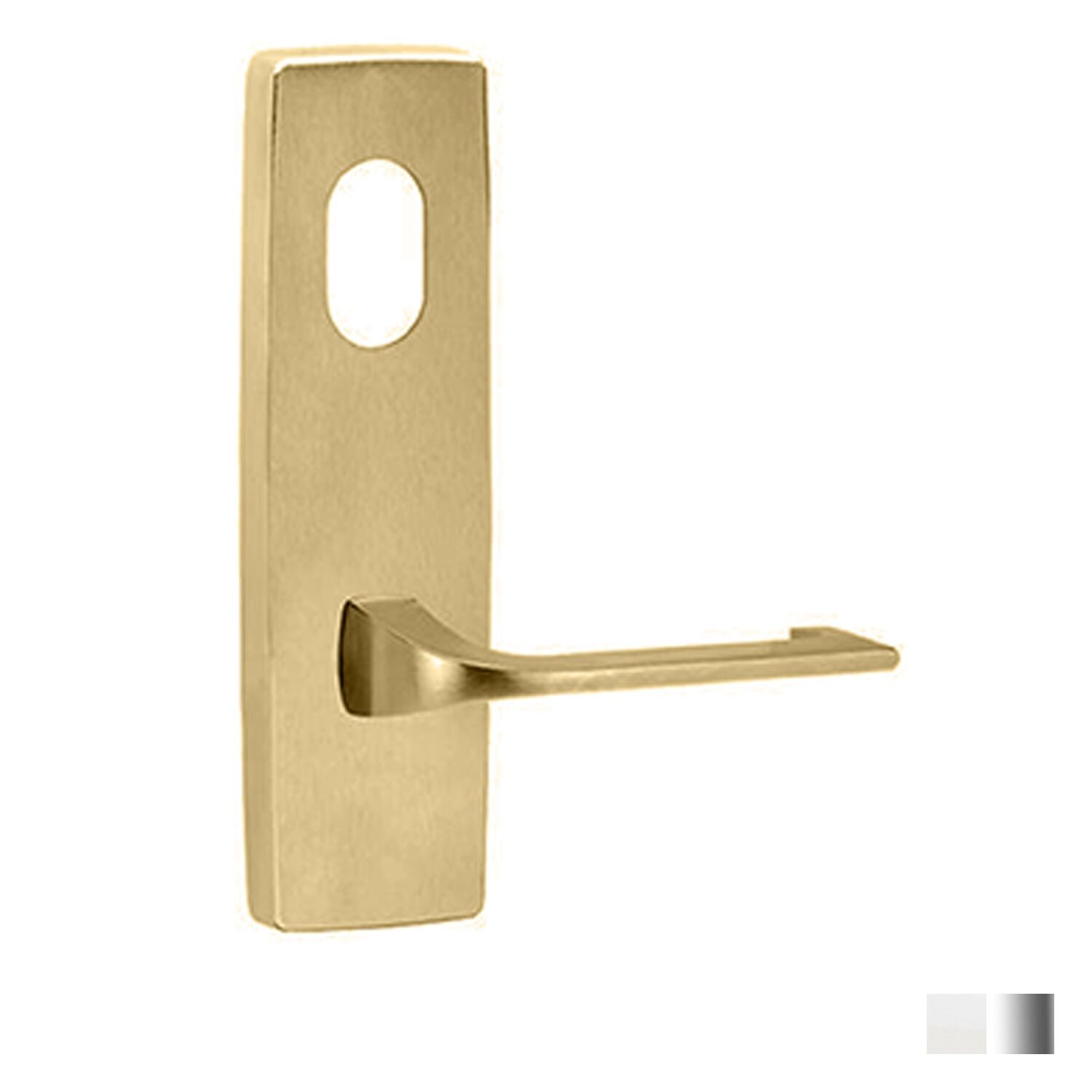

Lockwood Square End Plate with Cylinder Hole and 124 Lever

Door Lever can be found on all types of doors including exterior doors of internal doors, residential and commercial buildings.

Door Lever Function - Lever design provides an easier grip when opening a door and it prevents your hand from slipping.

Features:

  • Style and versatility are combined in this range which comprises four architecturally designed plates which give you the flexibility to mix and match to suit the aesthetics of every application.
  • Lockwood Brass Plate furniture is made from the highest quality materials and is available in a comprehensive array of levers in a range of superb finishes that provide complete freedom of choice.
  • The Lockwood Brass Door Furniture range is the culmination of decades of experience in the design and manufacture of high quality door furniture. Over the years the Lockwood brass door range has evolved as the product of choice for leading Australian architects in commercial, institutional and industrial applications.

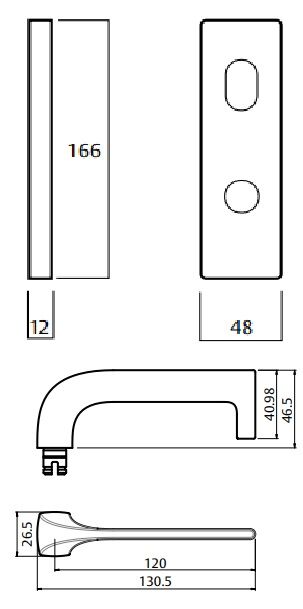

Specifications:

  • Handle Type: Lever 124
  • Door Thickness: 32mm to 45mm
  • Height: 166mm
  • Width: 48mm
  • Thickness: 12mm
  • Application: Designed for use with the Lockwood Selector and Synergy Series Mortice Latches
  • Turn Functions: Adjustable Tailbar Turn functions feature a unique mechanism that automatically adjusts the length of the tail bar to suit a particular door thickness
  • Available Finish:
    • Polished Brass
    • Polyester Powdercoat
    • Satin Chrome

Standard and Compliance:

  • 1800 series has been successfully tested up to 4 hours with a fire rated Lockwood mortice lock on fire door assemblies (depending on type of doorset) in accordance with Australian Standard AS1905.1:2005, Fire Resistant Doorsets.
  • 1800 series door furniture has been successfully tested with a Selector 3772 mortice lock and Abloy Protec2 CY504 cylinder to conform with Level SL8 under AS4145.2-2008, Locksets and hardware for doors and windows.
  • 1800 series lever sets have been successfully tested to conform with Level D8 (500,000 cycles) under Australian Standard AS4145.2-2008, Locksets and hardware for doors and windows.
  • 1800 series in brushed satin chrome finish has been successfully tested to conform with Level C10 (1000 hours) under Australian Standard AS4145.2- 2008, Locksets and hardware for doors and windows.
  • 1800 Series is designed, assembled and customised in Australia to suit the requirements of the Australian Market.
  • 1800 series includes levers and turns (as shown) that meet the requirements of AS1428.1-2009, Design for access and mobility
SKU ASS1801124_
Brand Lockwood
