Lockwood Square End Plate with Cylinder Hole and 155 - Available in Various Finishes
SKU : ASS1801155_
LEAVES WAREHOUSE IN 8 BUSINESS DAYS
YOU SAVE $7.70 (5%)

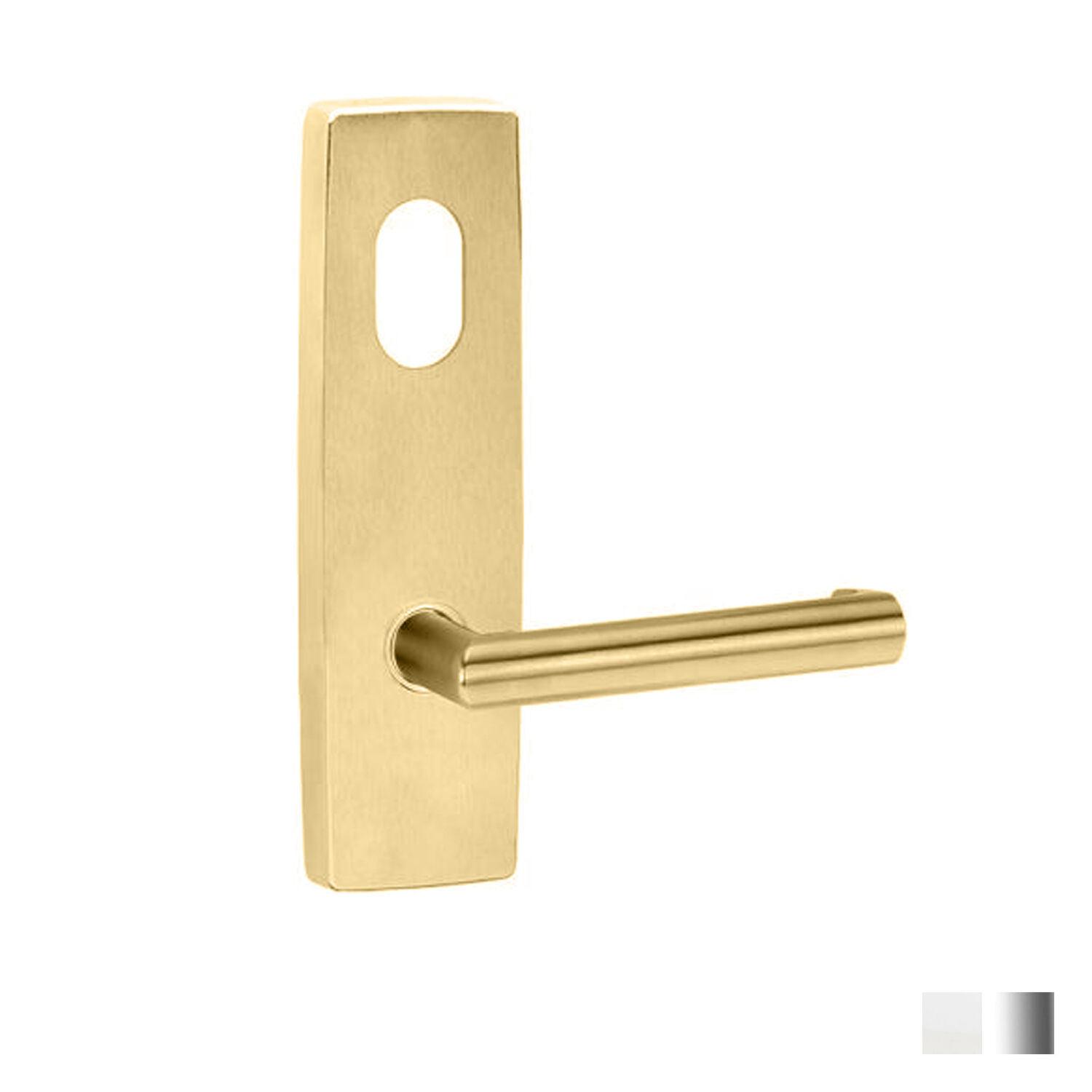

Lockwood Square End Plate with Cylinder Hole and 155 Lever
Door Lever can be found on all types of doors including exterior doors of internal doors, residential and commercial buildings.
Door Lever Function - Lever design provides an easier grip when opening a door and it prevents your hand from slipping.
Features:
- Style and versatility are combined in this range which comprises of architecturally designed plates which give you the flexibility to mix and match to suit the aesthetics of every application.
- Lockwood Brass Plate furniture is made from the highest quality materials and is available in a comprehensive array of levers in a range of superb finishes that provide complete freedom of choice
- The Lockwood Brass Door Furniture range is the culmination of decades of experience in the design and manufacture of high quality door furniture. Over the years the Lockwood brass door range has evolved as the product of choice for leading architects in commercial, institutional and industrial applications
- A statement of simplicity, the Lockwood lever 155 features straight lines, cut ends and a lever that sits over the turning point
- The 1800 Series features a classic rectangular plate with bevelled edges suiting corporate, commercial and public spaces with high use requirements. Designed for use with Lockwood Synergy 3570 and Selector 3770 Series Mortice Locks
- External plate with concealed fixing (screws included)

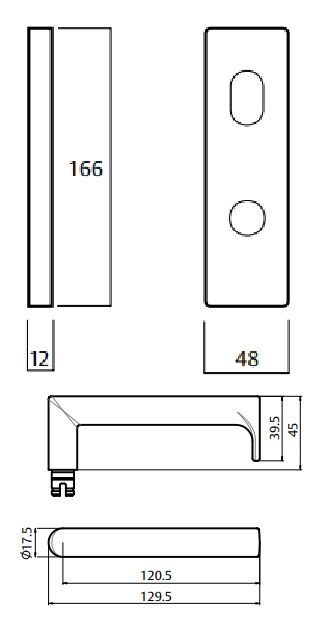

Specifications:
- Handle Type: Lever 155
- Cylinder Pitch: 64mm
- Fixing centres: 148mm
- Height: 166mm
- Width: 48mm
- Depth: 12mm
- Length: 129.3mm
- Projection: 57.5mm
- Finger clearance: 40mm
- Available Finish:
- Polished Brass
- Polyester Powdercoat
- Satin Chrome
Standard and Compliance:
- Fire Rating: Successfully tested up to 4 hours with a fire rated Lockwood mortice lock on fire door assemblies (depending on type of doorset) in accordance with Australian Standard AS1905.1:2005, Fire Resistant Doorsets
- D8: Successfully tested to conform with Level D8 (500,000 cycles) under Australian Standard AS4145.2-2008, Locksets and hardware for doors and windows
- Disabled Compliant: meet the requirements of AS1428.1-2009, Design for access and mobility
SKU | ASS1801155_ |
Brand | Lockwood |
