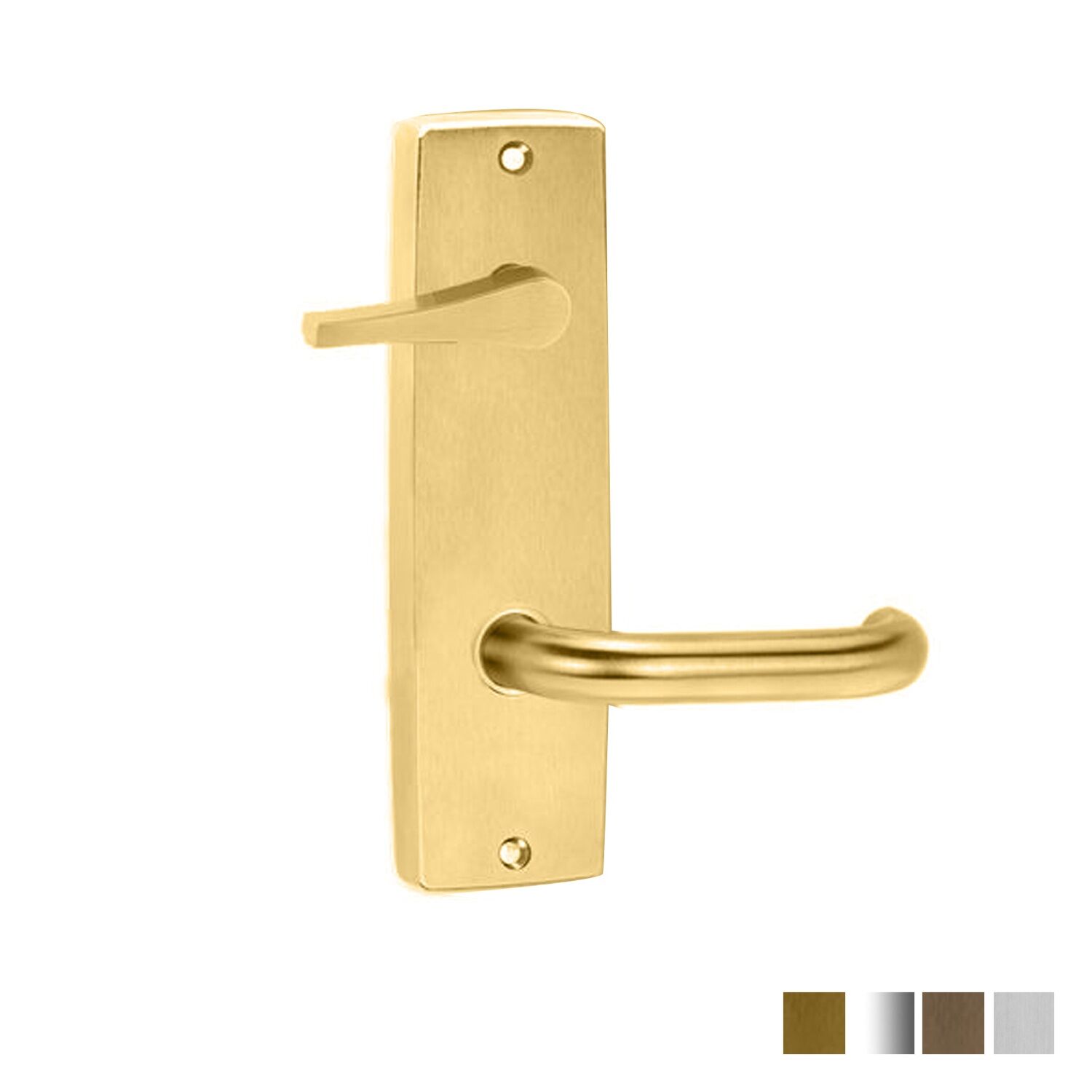

Lockwood Square End Plate with Disabled Turn

Door Lever can be found on all types of doors including exterior doors of internal doors, residential and commercial buildings.

Door Lever Function - Lever design provides an easier grip when opening a door and it prevents your hand from slipping.

Features:

  • Style and versatility are combined in this range which comprises four architecturally designed plates which give you the flexibility to mix and match to suit the aesthetics of every application
  • Lockwood Brass Plate furniture is made from the highest quality materials and is available in a comprehensive array of levers in a range of superb finishes that provide complete freedom of choice
  • The Lockwood Brass Door Furniture range is the culmination of decades of experience in the design and manufacture of high quality door furniture

Specifications:

  • Handle Type: Lever 70
  • Door Thickness: 32mm to 45mm

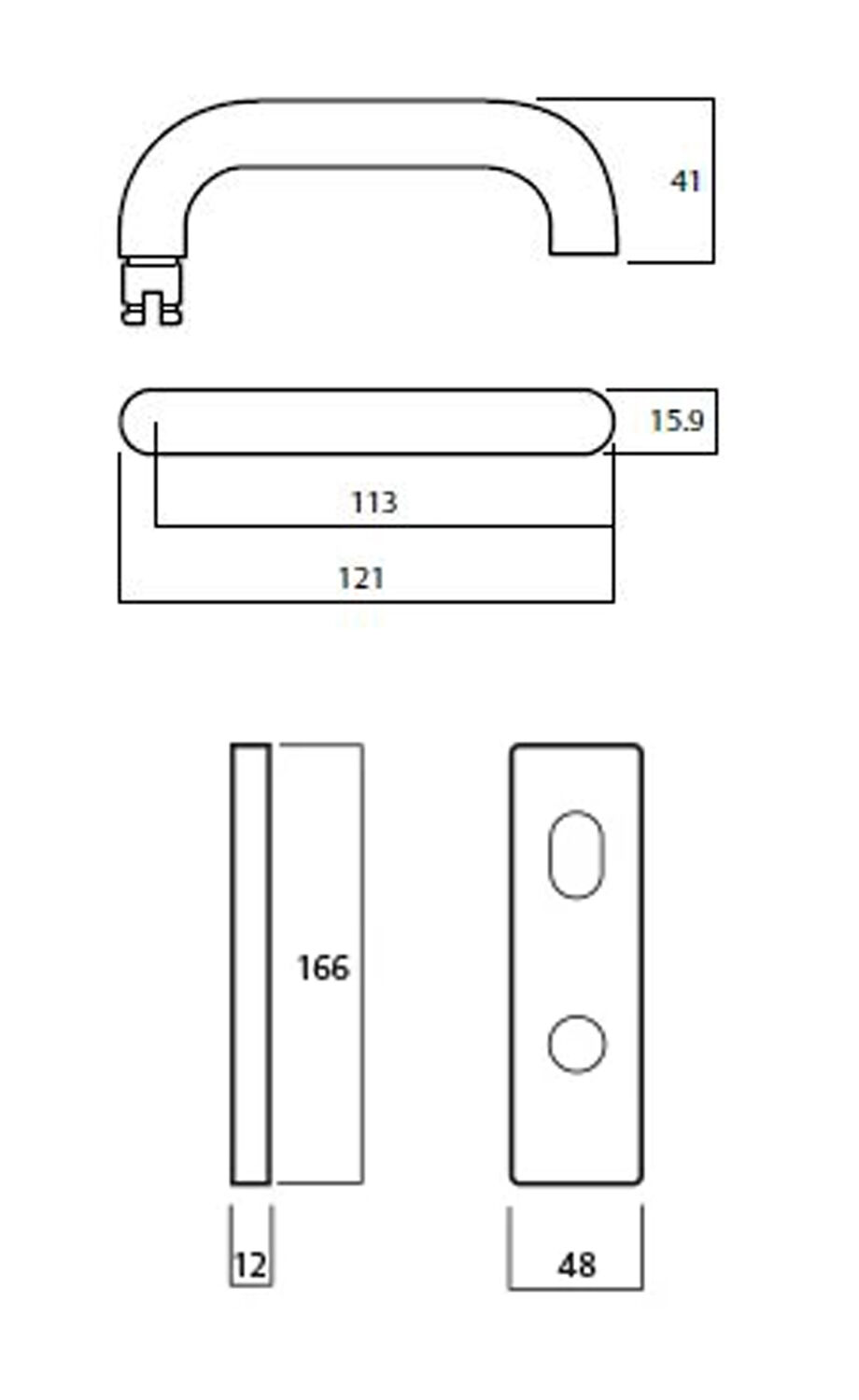

  • Plate Dimension:
    • Height: 166mm
    • Width: 48mm
    • Depth: 12mm
  • Lever Dimension:
    • Length: 121mm
    • Projection: 53mm
    • Finger clearance: 37mm
  • Available Handing:
    • Left Hand
    • Right Hand
  • Available Finish:
    • Architectural Bronze
    • Chrome Plate
    • Oil Rubbed Bronze
    • Polished Brass
    • Satin Chrome Dual Plated

Standard and Compliance:

  • Fire Rating: Successfully tested up to 4 hours with a fire rated Lockwood mortice lock on fire door assemblies (depending on type of doorset) in accordance with Australian Standard AS1905.1:2005, Fire Resistant Doorsets
  • D8: Successfully tested to conform with Level D8 (500,000 cycles) under Australian Standard AS4145.2-2008, Locksets and hardware for doors and windows
  • Disabled Compliant: meet the requirements of AS1428.1-2009, Design for access and mobility
SKU ASS193970_
Brand Lockwood
