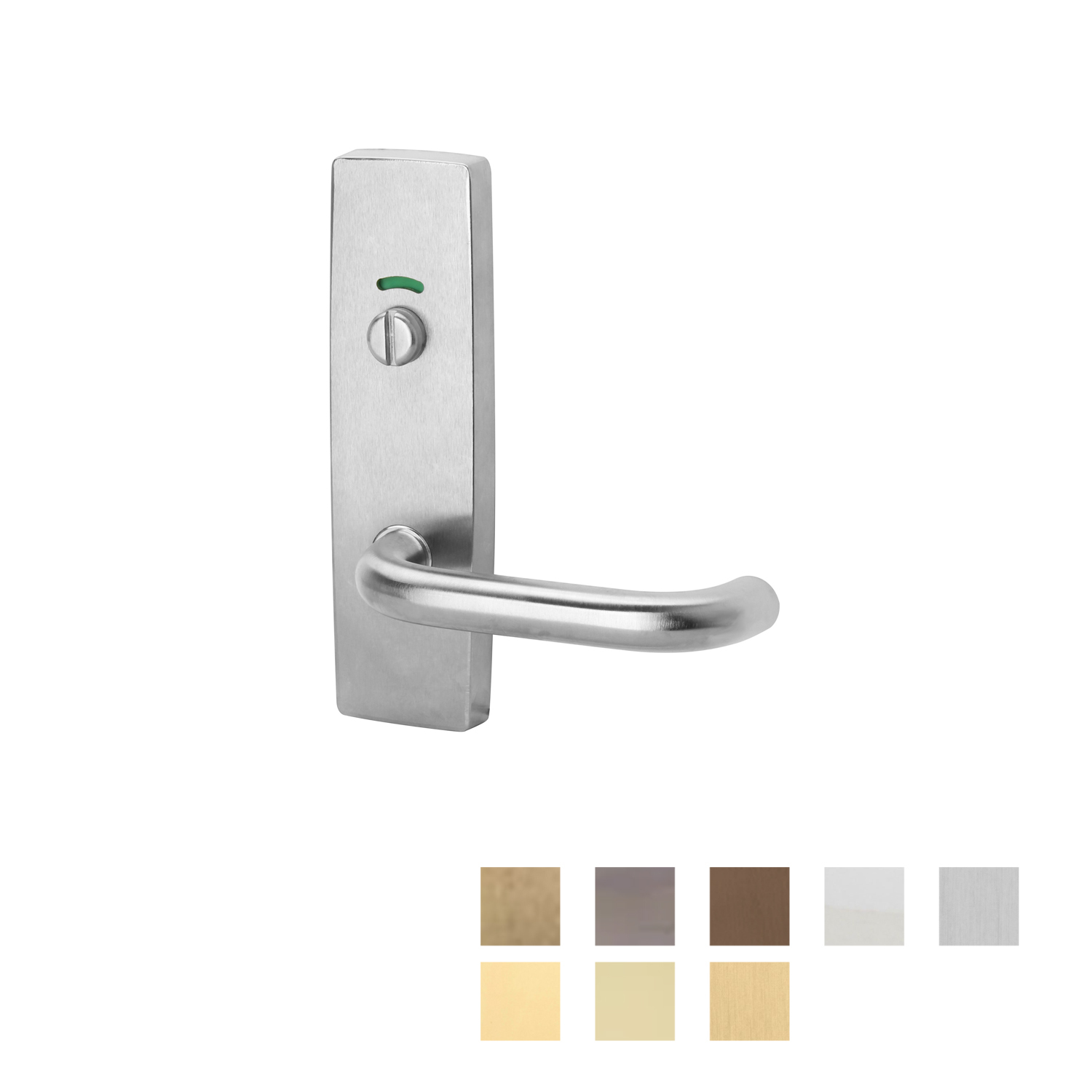

Lockwood 1814 Square End Plate with Privacy Indicator Emergency Turn & 70 Lever

PLEASE NOTE: This item is Non-returnable. Upon placing your order, it CAN'T be cancelled or returned (unless faulty or damaged)

This is a non-stocked item which has a handling time of 8 business days after payment is made.

Square End Plate a classic rectangular plate with bevelled edges. Suits corporate, commercial and public spaces with high use requirements.

Square End Plate Function - external plates designed to fit back to back. If outside plate is specified with concealed fixing, then the inside plate must be visible fixed.


  • Lockwood 1800 series exterior square end plate furniture
  • Designed for use with Lockwood 3570 series locks
  • BCA AS1428.1 -2009 compliant leverset
  • Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets
  • Rectangular exterior square end plate
  • Slotted indicating coin turn and 70 series lever
  • Concealed fixing
  • Designed to fit back to back
  • External plates supplied with fixing screws

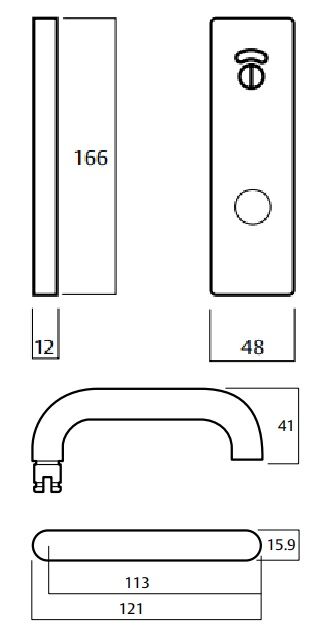

  • Plate Size: 166mm x 48mm x 12mm
  • Door Thickness: 32mm - 50mm
  • Screw Fixing Centres: 148mm
  • Internal / External: External
  • Plate Type: Square End
  • Material: Brass
  • Plate Has A Lever: Yes
  • Plate Has An Emergency Slot Turn: Yes
  • Plate Has An Indicator: Yes
  • Available Finish:
    • Aged Brass
    • Architectural Bronze
    • Chrome Plate
    • Oil Rubbed Bronze
    • Polished Brass
    • Polished Brass Unlacquered
    • Satin Brass
    • Satin Chrome
    • Satin Chrome Dual Plated


SKU ASS181470_
Brand Lockwood
