Lockwood Storeroom Door Pack 3572 Mortice Lock w/ Kaba Handles Round

Storeroom Function: Outside lever rigid, key retracts the latch only. Inside lever always free.

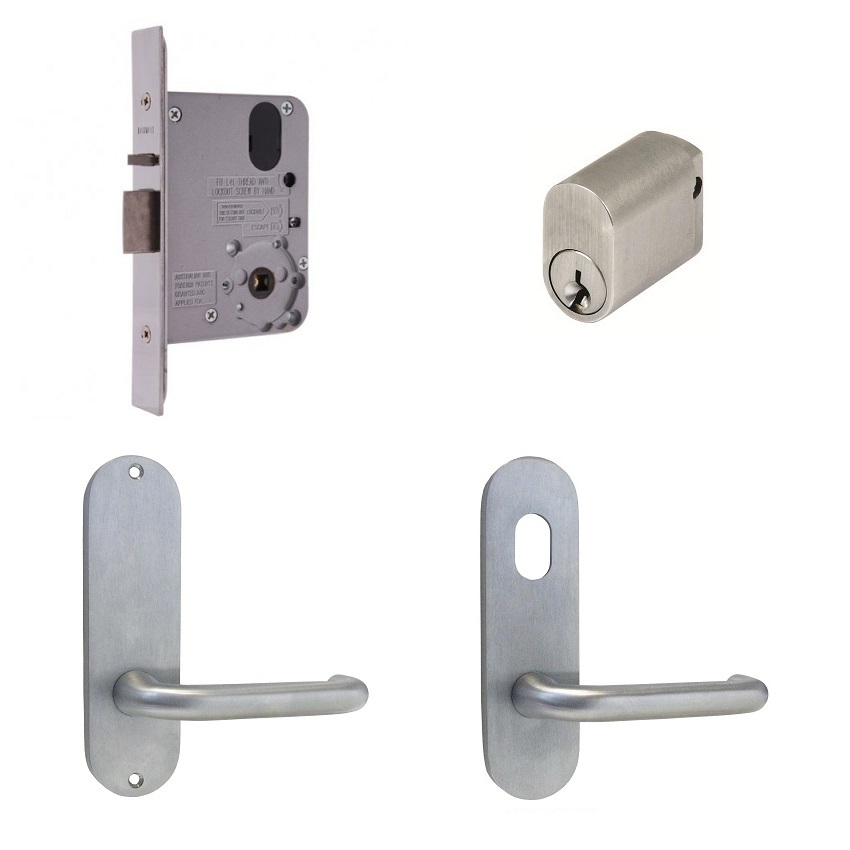

Includes:

• 1 x Lockwood 3572 Universal Primary Lock 60mm Backset Satin Chrome (3572SC)
• 1 x Dormakaba Door Lever on External Plate Cylinder Hole Satin Stainless Steel (6700/30G)
• 1 x Dormakaba Furniture Round End Plate Visible Fix with Lever Satin Stainless Steel (6706/30G)
• 1 x Brava Oval Cylinder X W Z Rabbit Cams 6 Pin Keyed Differ Satin Chrome (5070USCKD)

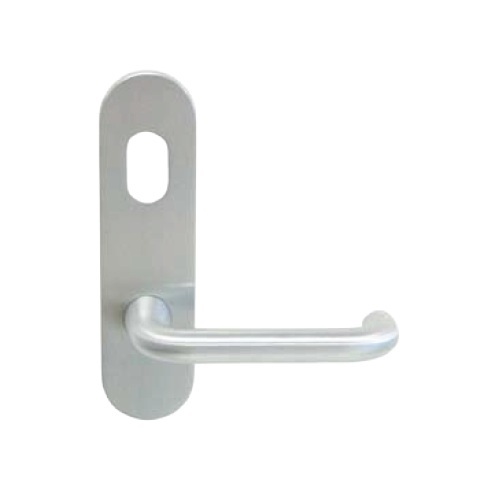

Dormakaba Door Lever on External Plate Cylinder Hole
6700/30

Features:

• A stylish alternative to the rectangular plate displaying clean modern lines with bevelled edges
• Manufactured using hygienic and corrosion resistant
• A characteristic feature of Stainless Steel door furniture is the naturally gleaming finish
• Concealed fixed external plates with visible fixed internal plates connected with bolt through fixings
• Extensive range of optional plate functions
• Designed with bolt through the door fixing for use with the dormakaba MS2602 series mortice locks and latches
• Non handed plate with removable stop screw for opposite handing
• Heavy duty spring mechanism manufactured using the highest grade materials
• Nylon bush preventing metal to metal wear and providing a smoother friction free movement
• All turn snibs and privacy snibs on plate are supplied with a heavy duty star spindle for positive turn actuation and furthermore provides for true installation alignment
• Compatible with all Coastal and Urban series lever designs

Compliance:

• Fire Rating: The 6700 series plate furniture is fire rated and complies with AS1905.1-2005 Part 1
• Disabled Compliance: Disabled turn’s on plates 6707, 6748, 6617, 6758 and 6757 feature a user friendly finger grip of non entrapment design. Designed with the assistance of access consultants.

Specifications:

• Material: 316 Satin stainless steel
• Door Thickness: 32mm - 50mm
• Length: 165mm
• Width: 45mm
• Depth: 10mm
• Includes Fixing Screws: Yes
• Finish: Satin Stainless Steel

Dormakaba Furniture Round End Plate Visible Fix with Lever
6706/30G

Features:

• Rectangular interior round end plate
• Plain plate and Noosa 30 series lever
• Manufactured using 316 corrosion resistant solid stainless steel
• Visible fixing

Compliance:

• Fire Rating: The 6700 series plate furniture is fire rated and complies with AS1905.1-2005 Part 1
• Disabled Compliance: Disabled turn’s on plates 6707, 6748, 6617, 6758 and 6757 feature a user friendly finger grip of non entrapment design. Designed with the assistance of access consultants.

Specifications:

• Door Thickness: 32mm - 50mm
• Internal / External: Internal
• Plate Type: Round End
• Fire Rated: Yes
• Material: Stainless Steel
• Length: 165mm
• Width: 45mm
• Depth: 10mm
• Plate Has A Lever: Yes
• Finish: Satin Stainless Steel

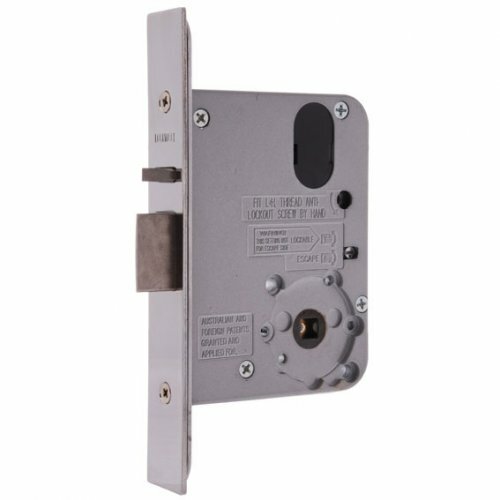

Lockwood 3572 Universal Primary Lock 60mm Backset
3572SC

Features:

• Suitable for heavy duty use in industrial and commercial buildings, institutions, clubs, schools, hospitals, hotels, and similar buildings
• Made from quality materials to meet high durability and strength requirements

Specifications:

• Backset: 60mm
• Body Depth: 84mm
• Bolt Throw: 15mm
• Bolt Width: 15mm
• Bolt Height: 28.4mm
• Body Height: 117mm
• Body Width: 19mm
• Plate Height: 175mm
• Plate Width: 25mm
• Plate Thickness: 4mm
• Finish: Satin Chrome

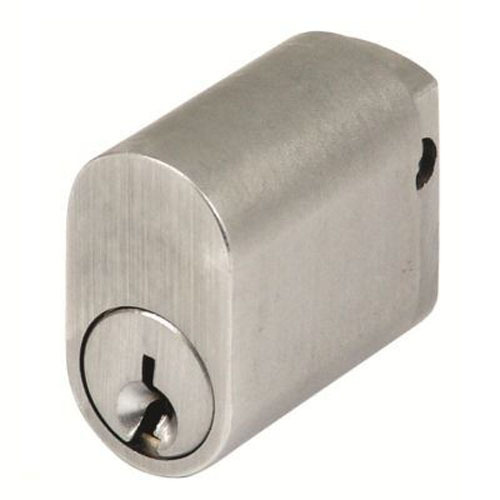

Brava 570 Oval Cylinder
5070USCKD

Features:

• Brava type 570 cylinder
• Includes X, W, Z & Rabbit Cams
• 2 keys supplied

Specifications:

• Cylinder: 6 Pin
• Keying: Keyed to Differ
• Finish: Satin Chrome
