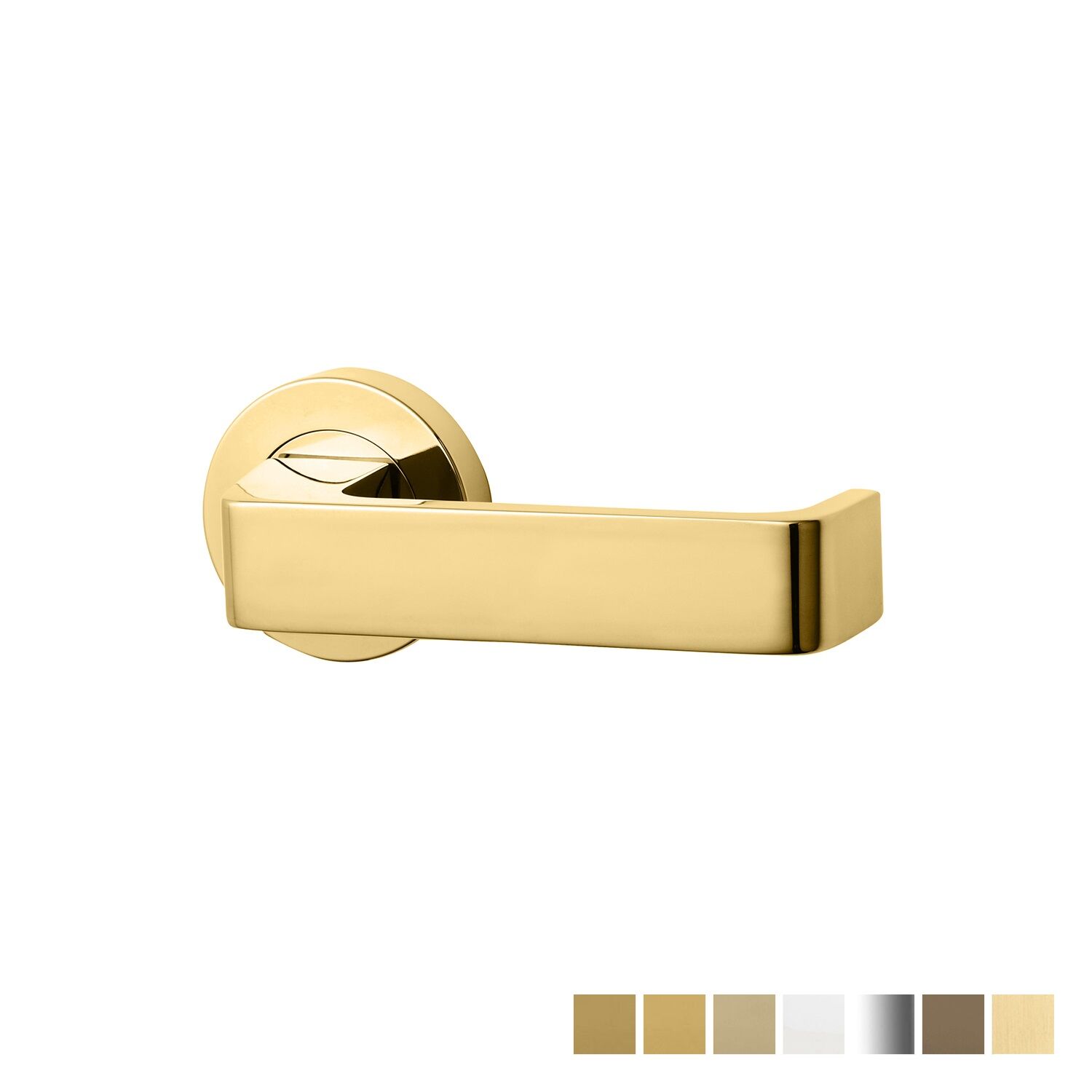

Lockwood Symphony 90 Door Lever on Round Rose

Door Lever can be found on all types of doors including exterior doors of internal doors, residential and commercial buildings.

Door Lever Function - Lever design provides an easier grip when opening a door and it prevents your hand from slipping.

Features:

• Simple and versatile, this elegantly styled round brass rose features concealed fixing
• The Lockwood Brass Door Furniture range is the culmination of decades of experience in the design and manufacture of high quality door furniture. Over the years the Lockwood brass door range has evolved as the product of choice for leading Australian architects in commercial, institutional and industrial applications
• All Lockwood roses and levers contained in the 1220 series are of a solid brass construction
• Designed for use with Lockwood 3770 Selector & 3570 Synergy Series Mortice Latches and with 5260 Tubular Latches

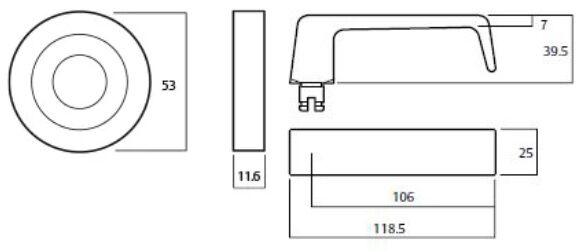

Specifications:

• Handle Type: Lever 90
• Rose Diameter: 53mm
• Door Thickness: 32mm to 50mm
• Length: 118.5mm
• Projection: 51.6mm
• Finger Clearance: 44mm
• Available Finish:
  • Aged Brass
  • Architectural Bronze
  • Architectural Bronze Unlacquered
  • Chrome Plate
  • Oill Rubbed Bronze
  • Polished Brass
  • Polished Brass Unlacquered
  • Polyester Powdercoat
  • Satin Brass
  • Satin Brass Unlacquered

Standard and Compliance:

• Fire Rating: Successfully tested up to 4 hours with a fire rated Lockwood mortice lock on fire door assemblies (depending on type of doorset) in accordance with Australian Standard AS1905.1:2005, Fire Resistant Doorsets
• D8: Successfully tested to conform with Level D8 (500,000 cycles) under Australian Standard AS4145.2-2008, Locksets and hardware for doors and windows
• Disabled Compliant: meet the requirements of AS1428.1-2009, Design for access and mobility
