Lockwood Vivid Cavity Door Slider Privacy Set
VIVCAV2/SBPVD

Privacy is used for internal doors that require locking. (e.g. bathrooms, bedrooms, and any room where privacy is needed)

Privacy Function - can be locked by a button or a turn piece on the inside with no key function.

Features:

• Specifically created to be installed flush with the sliding door panel so it can fully retract into the door cavity.
• Its retractable door pull offers both style and functionality
• perfect for smaller spaces such as bathrooms and ensuites.
• The bolt can be released as a door pull to pull your door away from the cavity.
  Simply press the bolt to release.
• Finishes are derived from a physical vapor deposition (PVD) surface treatment which offers a range of benefits, including sustainability and durability.
• Exhibit unparalleled hardness, with four times the robustness of chrome, along with superior scratch and wear resistance, and reduced susceptibility to corrosion.
• Coatings do not emit toxic liquids or gases during manufacturing, making them a cleaner and safer method of production.

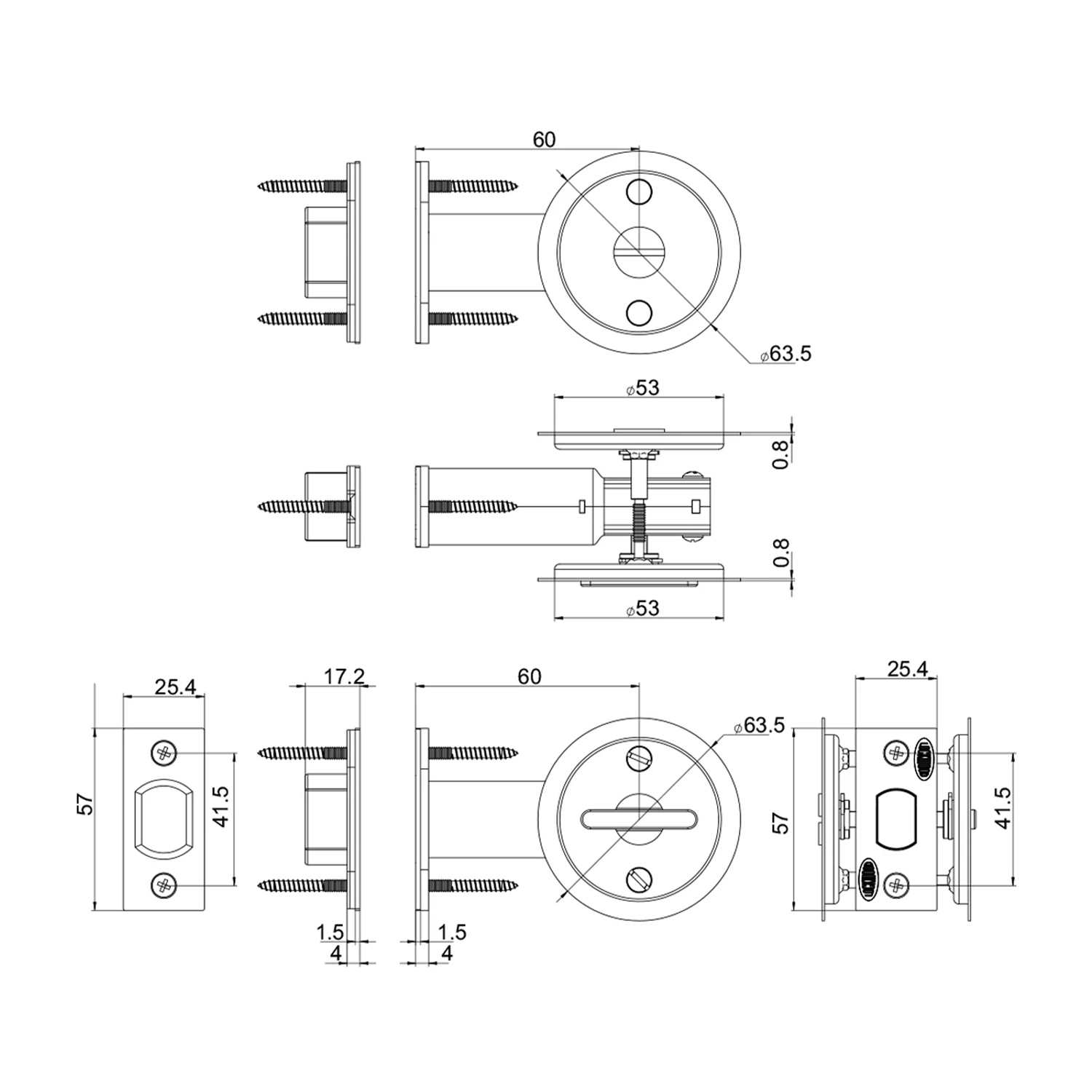

Specifications:

• Prep Hole Diameter: 54mm
• Outer Face Diameter: 63.5mm
• Inner Diameter: 53mm
• Door Pull Plate Height: 57mm
• Door Pull Plate Width: 25.4mm
• Door Pull Centre to Centre: 41.5mm
• Backset: 60mm
• Finish: Satin Brass
