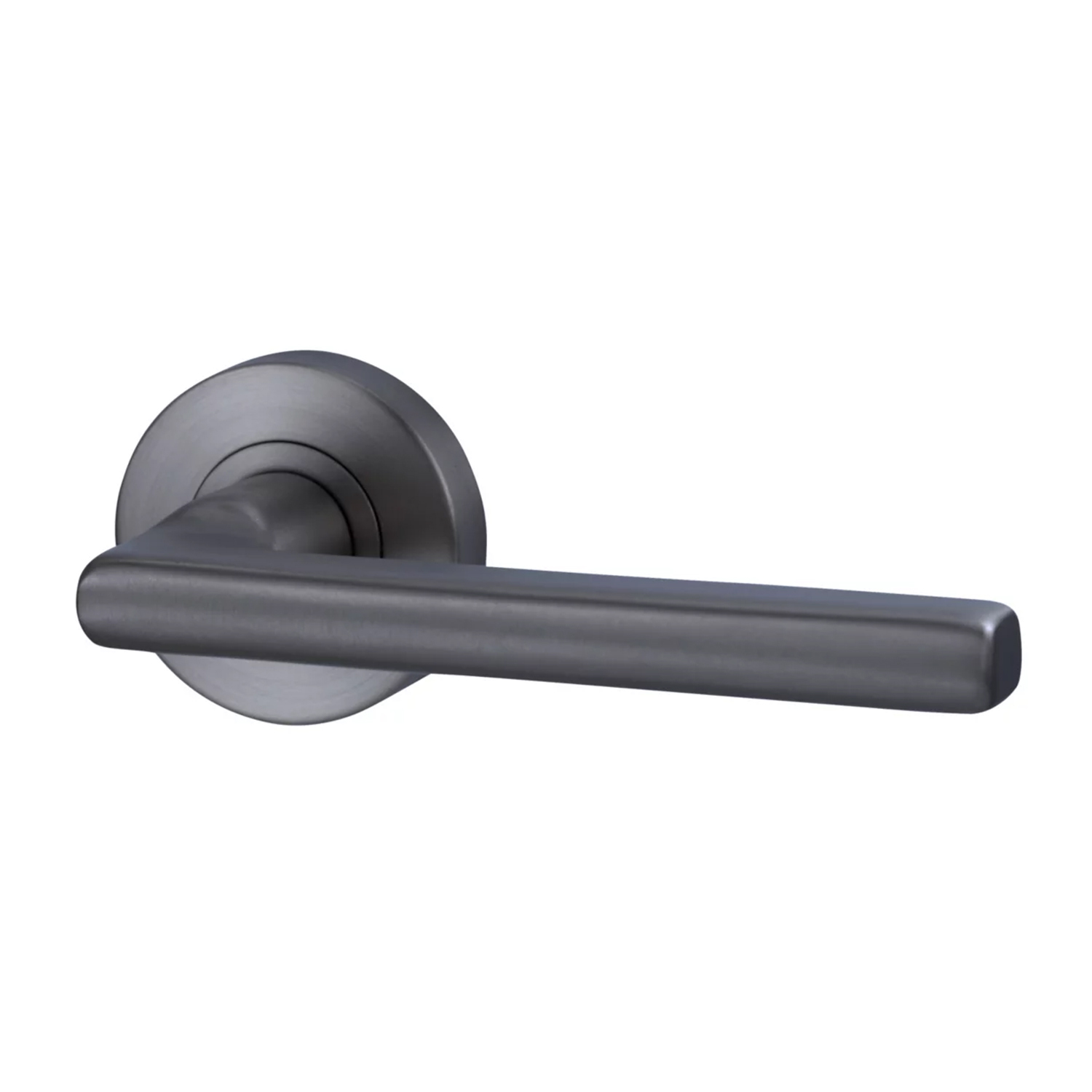

Lockwood Vivid V3 Passage Set
VIV1/V4GMPVD

Passage ideal for interior hallways, closets and other rooms that don't need privacy locks.

Passage Function - Both outside and inside levers are always free.

Includes:

• 2 x Lever
• 2 x Rose Trim
• 1 x Passage Latch
• 1 x Face Plate
• 2 x Spindle
• 2 x Spindle Springs
• 2 x Through Fix Screws
• 2 x Hex Inserts
• 1 x Strike Plate
• 1 x Dustbox
• 4 x Timber Mounting Screws

Features:

• A stylish range of internal door furniture suitable for use in residential dwellings.
• All fixings are concealed beneath a removable rose trim providing an aesthetically appealing installation.
• Finishes are derived from a physical vapor deposition (PVD) surface treatment which offers a range of benefits, including sustainability and durability.

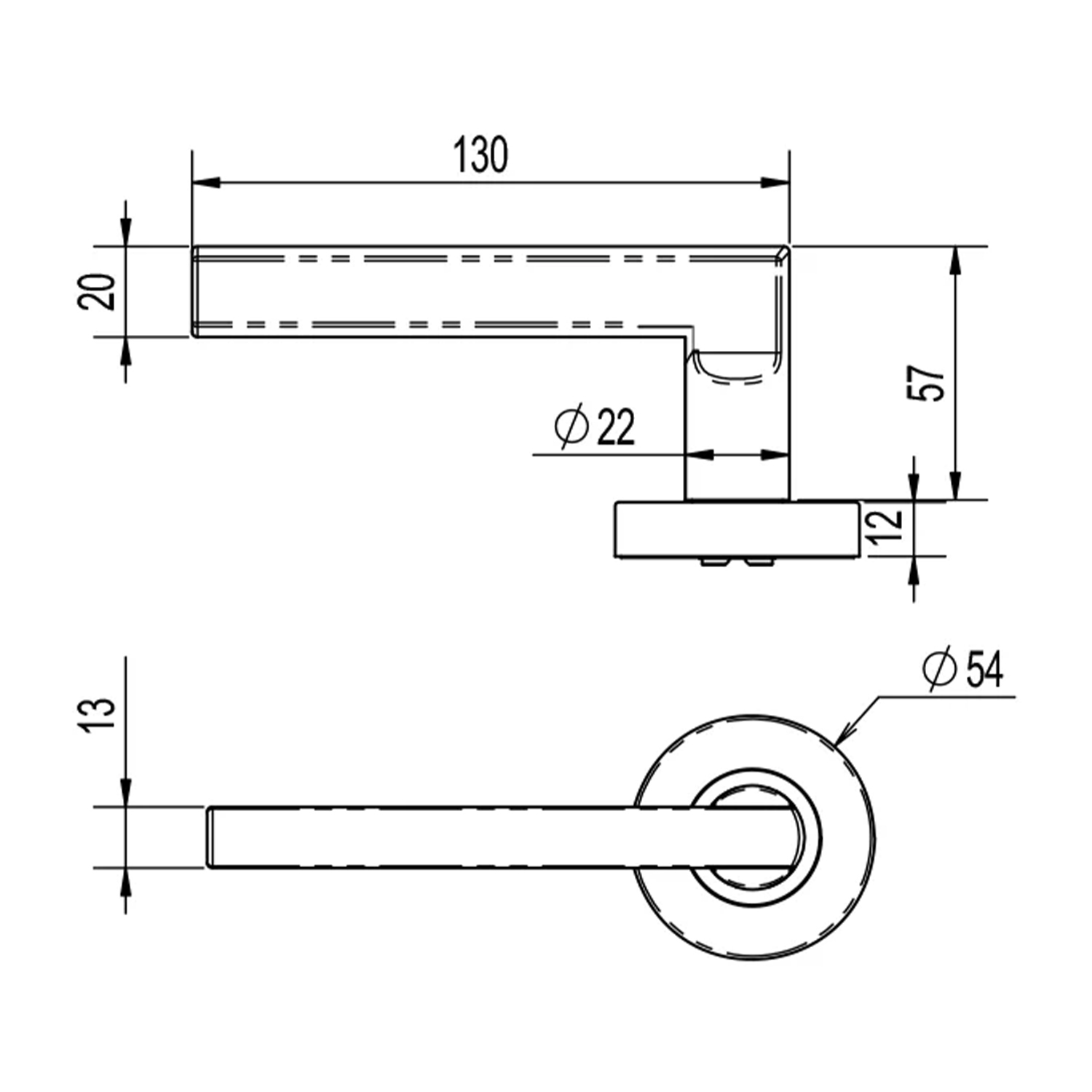

Specifications:

• Rose Diameter: 54mm
• Rose Thickness: 12mm
• Lever Length: 130mm
• Lever Width: 13mm
• Lever Thickness: 22mm
• Door Thickness: 32mm - 45mm
• Projection: 69mm
• Finish: Gunmetal

Standards and Compliance:

• Tested to AS4145.2 2008 for Durability passing D7 - 300,000 cycles.
• Tested to AS4145.2 2008 for Neutral Salt Spray, passing C6 - 168 hours.
• AS1428.1-2009, Designed for access and mobility.
