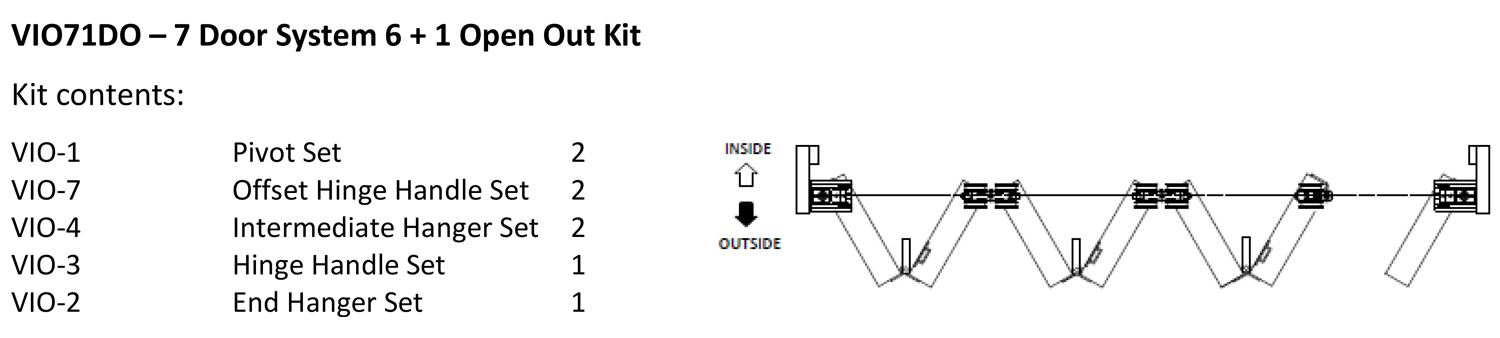

McCallum VIO Folding Door Hardware Kit For Outward Opening Doors - 7 Door System 6 + 1 Open Out Kit

Note: Tracks and channels are sold separately

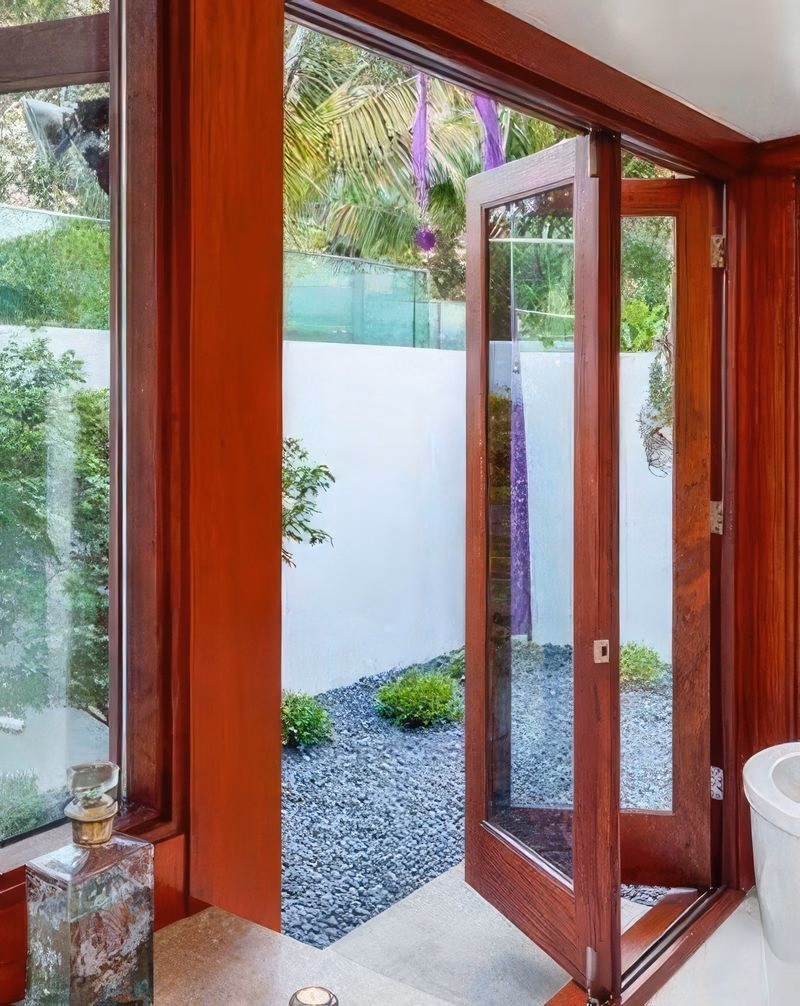

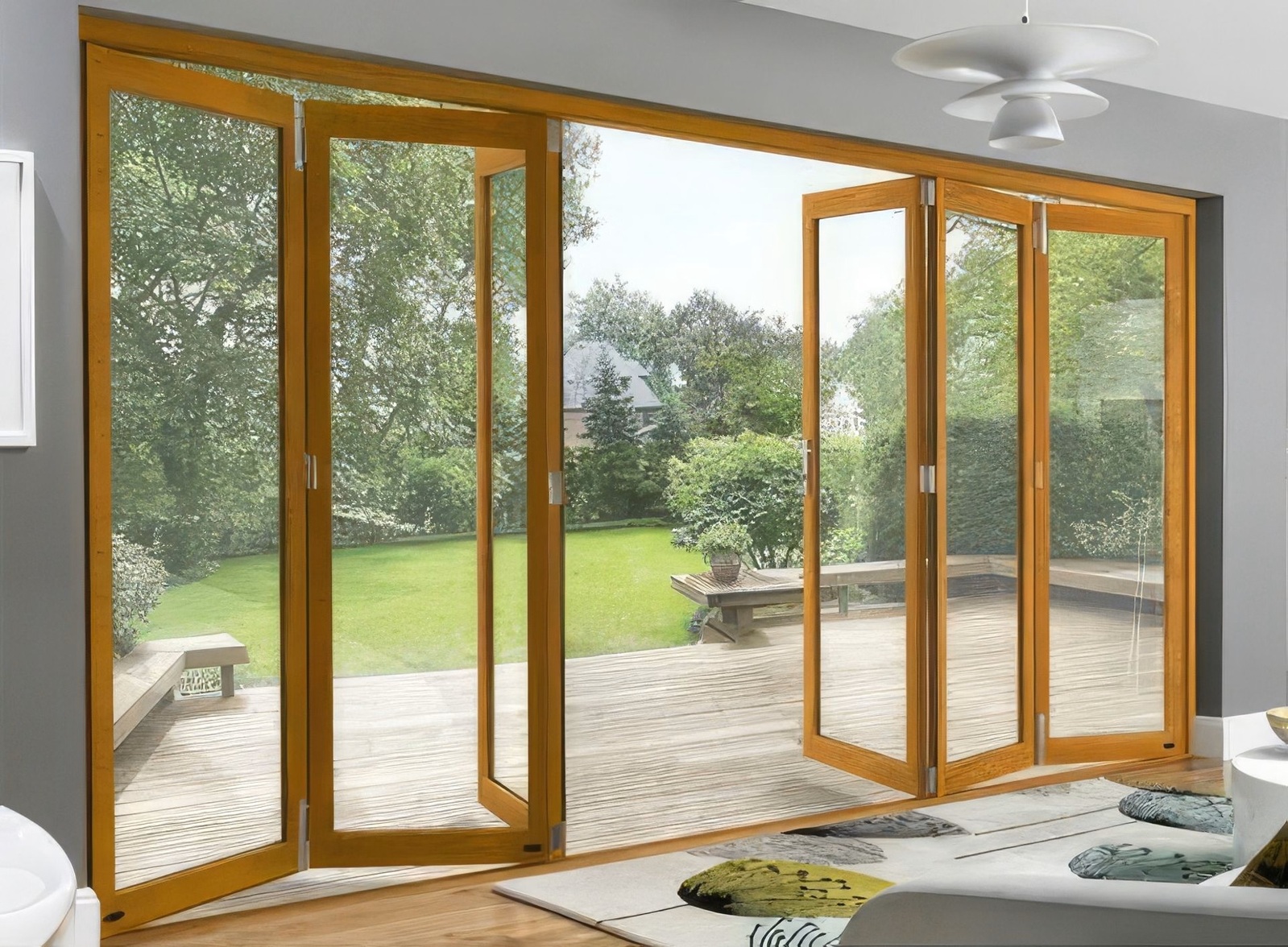

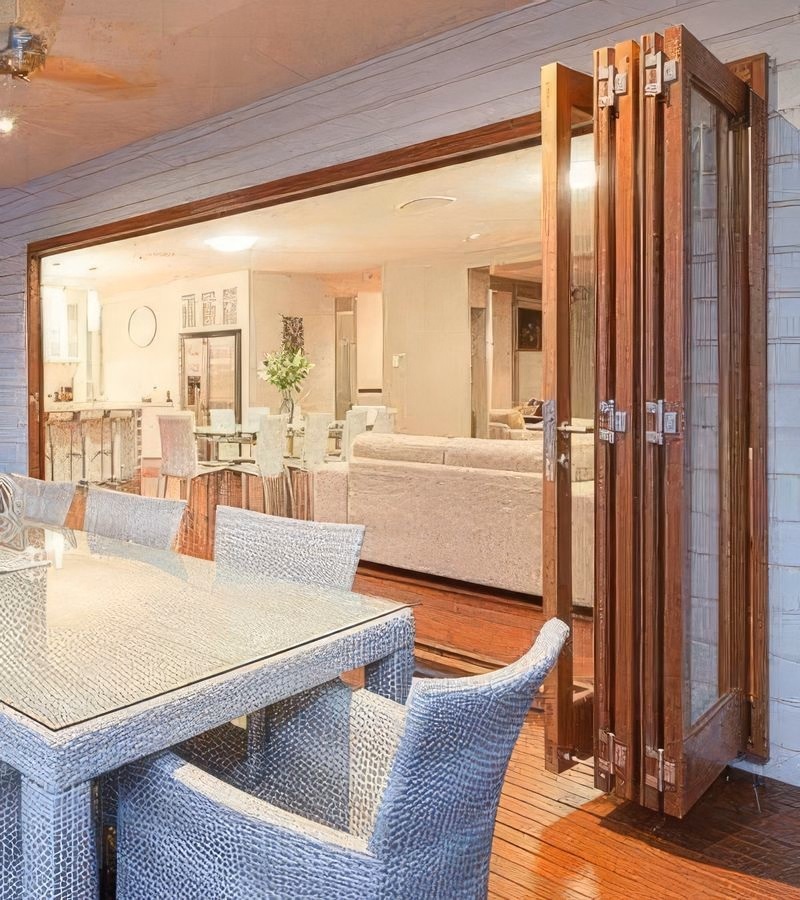

Top Hung Folding Door are incredibly popular because they are stylish and efficient as space-saving doors for separating rooms or partitioning huge workspaces in homes and offices.

Top Hung Folding Door Function - doors have rollers attached at the top. The guide on the floor then keeps the door in line as you slide it from one side to the other.

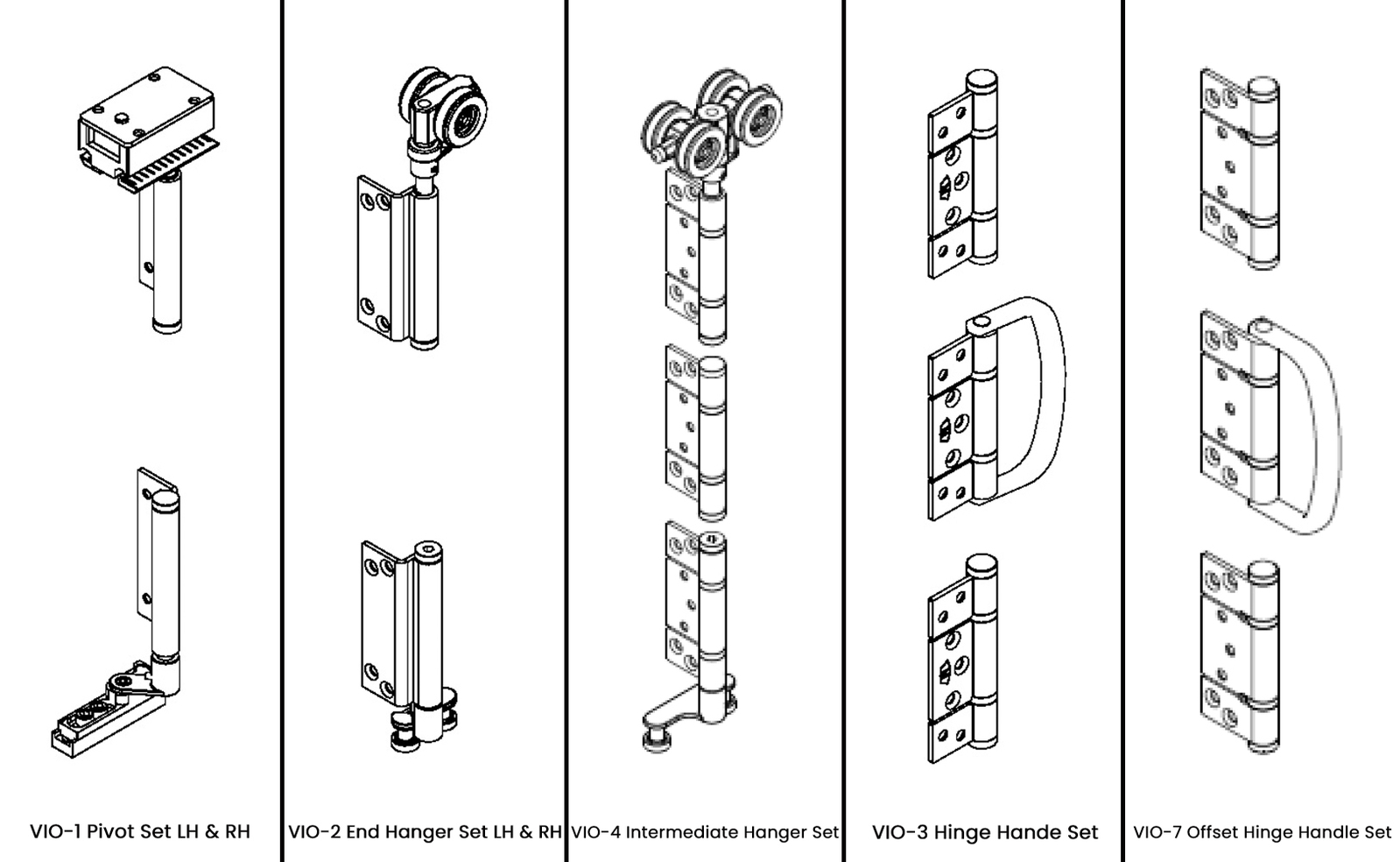

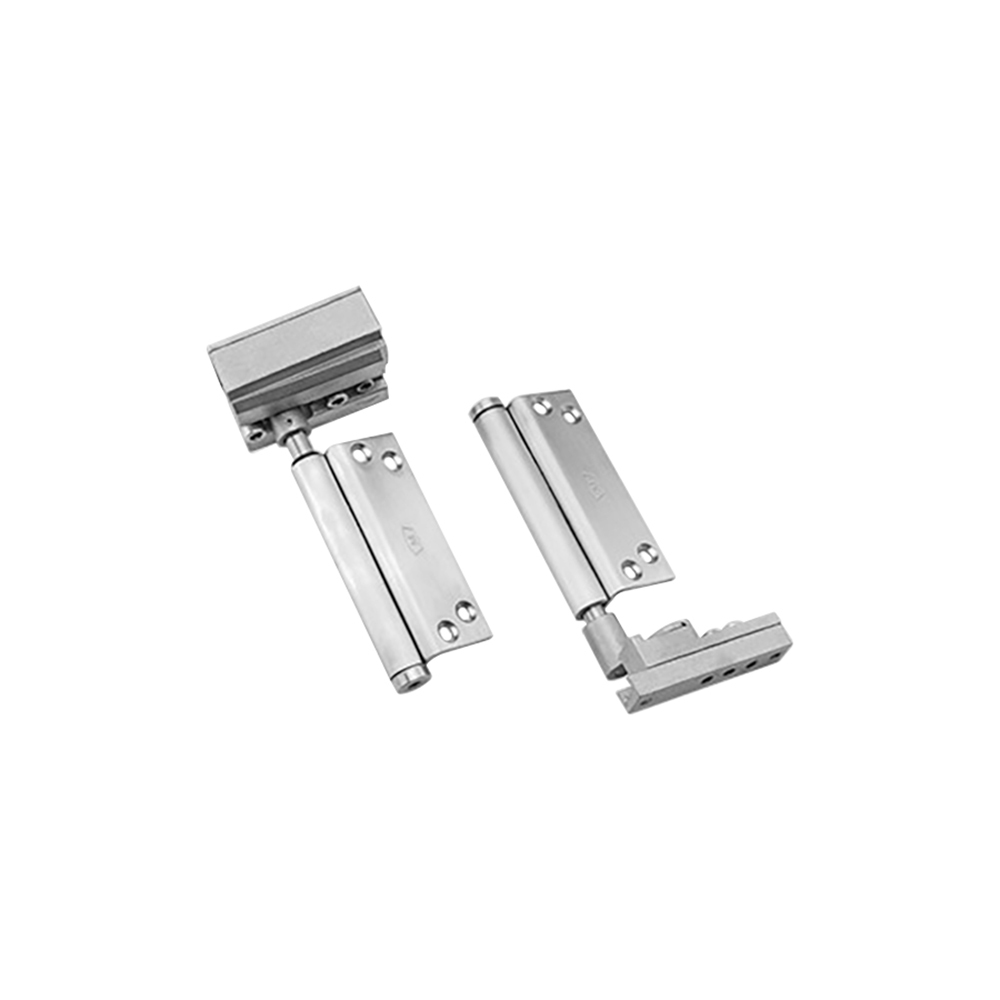

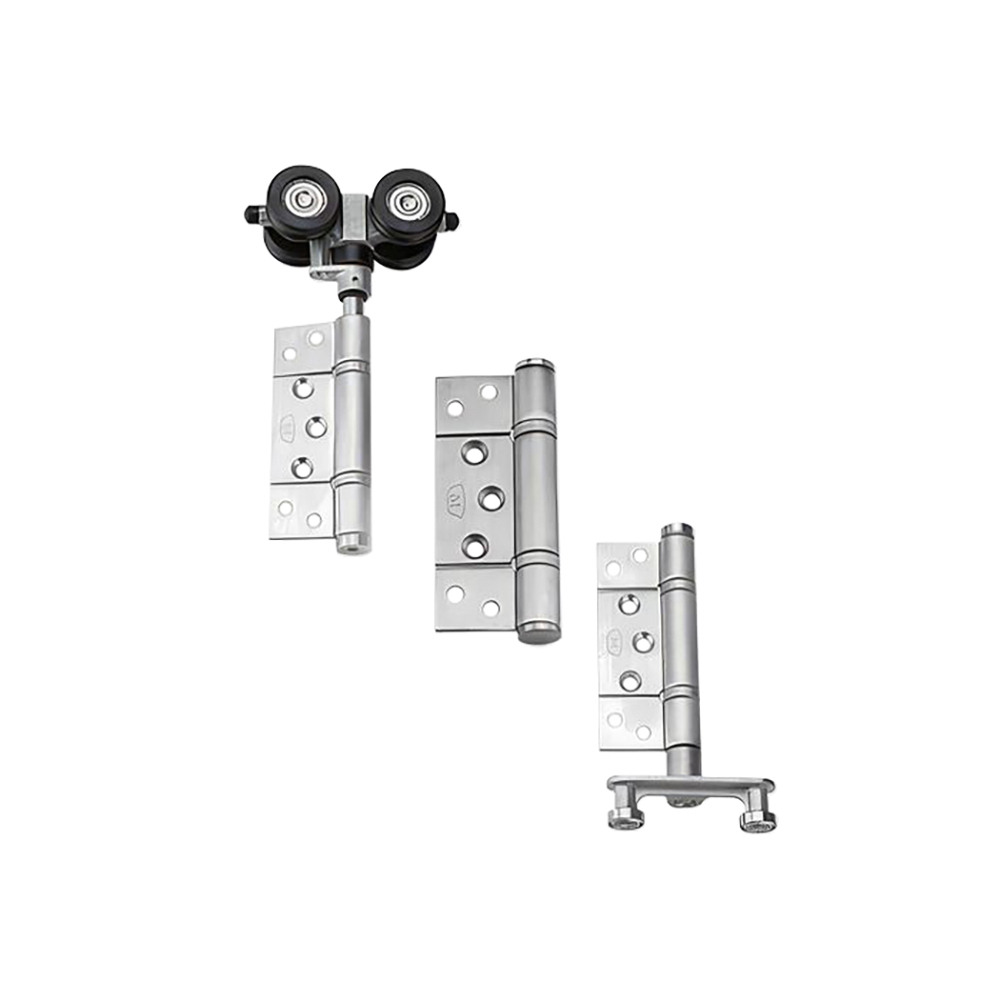

  • 2 x VIO Pivot Set Left and Right Satin Stainless Steel (VIO-1SSS)

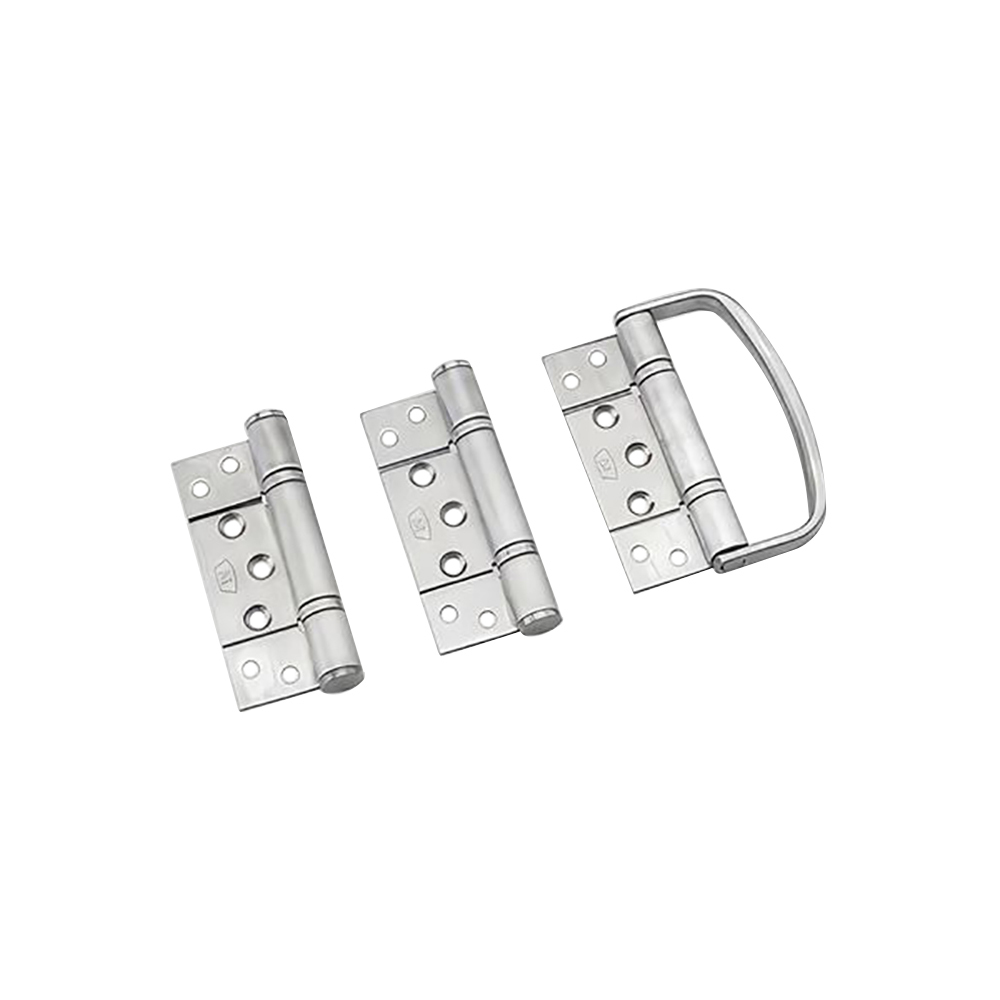

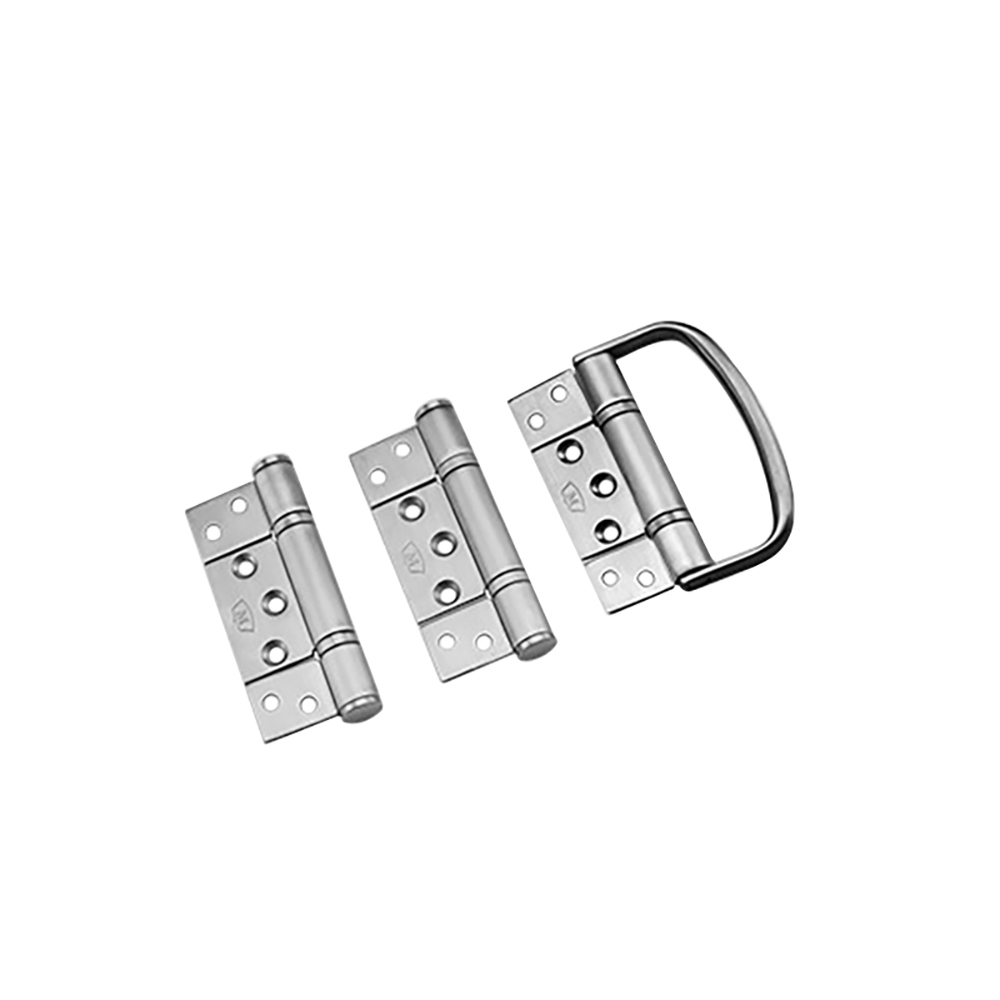

  • 2 x VIO Offset Hinge Handle Set Satin Stainless Steel (VIO-7SSS)

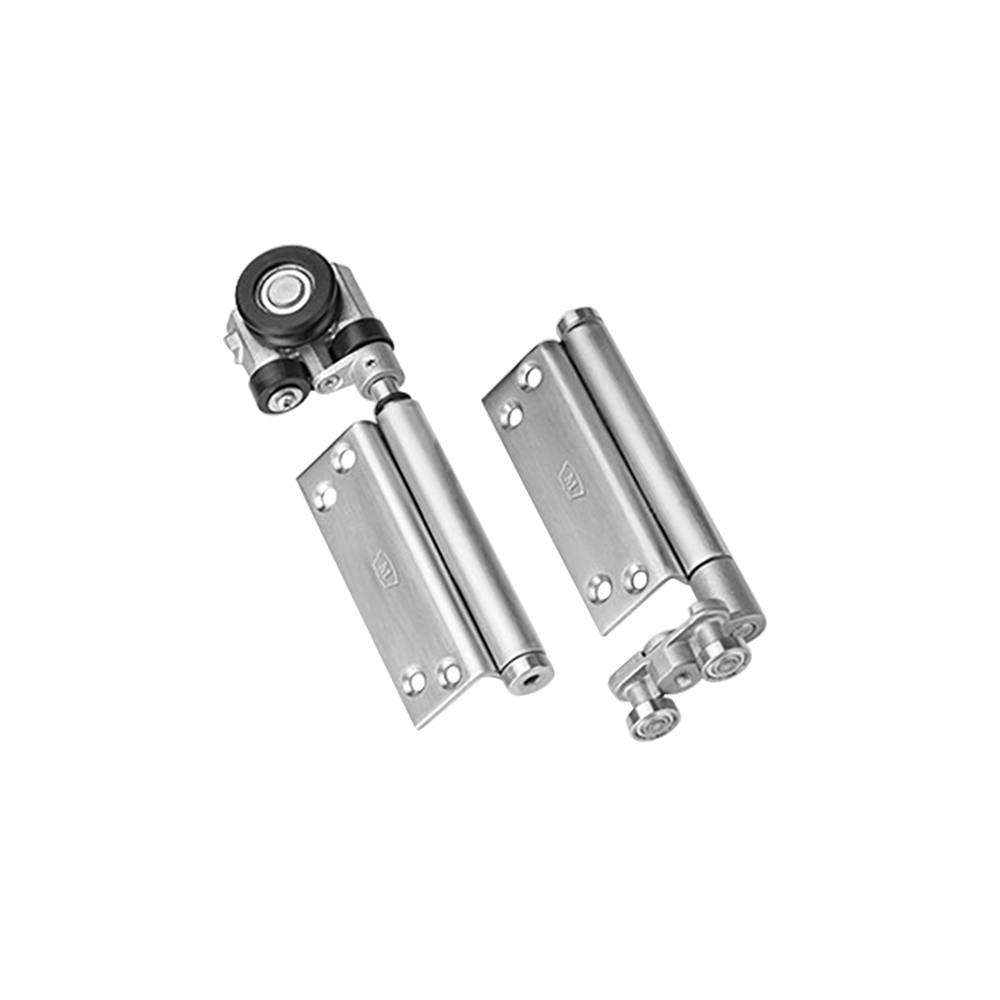

  • 2 x VIO Intermediate Hanger Set Satin Stainless Steel (VIO-4SSS)
  • 1 x VIO Hinge Handle Set Satin Stainless Steel (VIO-3SSS)
  • 1 x VIO End Hanger Set Satin Stainless Steel (VIO-2SSS)


  • Suitable for residential and commercial timber or aluminium exterior folding door
  • Ideal for external applications being manufactured from corrosive-resistant material
  • Top hung-end folding system suits door folding in one or both directions.
  • Stainless steel hangers, hinges, and precision stainless steel bearings along with engineered polymer components.


  • Material: Stainless Steel
  • Door Thickness: 35 - 65mm
  • Max Door Weight: 50kg or 100kg per leaf
  • Max Door Width: 1000mm
  • Max Door Height: 3000mm or 3300mm
  • Colour or Finish: Satin Stainless Steel
Brand McCallum
