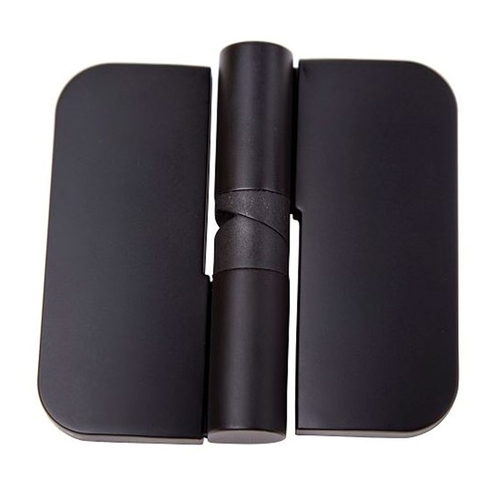

Metlam Gravity Hinge

Gravity Hinge is a type of hinge that operates based on the weight of the door itself.

Gravity Hinge Function - can be set to automatically open or close by utilizing the door’s weight as a constant force. Particularly useful for doors that need to swing smoothly without manual effort


  • Gravity-assisted door opening and door closing with lift-off capability


  • Material: 304 Stainless Steel Shaft and Diecast Zinc, Alloy ZP3
  • Load Rating: 15Kg per hinge
  • Minimum Hinge Clearance For Lift-Off Hinges: 30mm
  • Width: 82mm
  • Height: 83mm
  • Depth: 16mm
  • Thickness: 5mm
  • Centre to Centre: 56mm
  • Screw Hole Diameter: 5mm
  • Available Fixing:
    • Bolt Through Fix
    • Concealed Screw Fix
    • No Fixings
  • Finish: Matt Black


  • For optimum performance - 2 hinges per door up to 30Kgs
  • For doors over 30Kg allow for 15Kg per hinge
  • 3 Hinges per door is recommended to prevent door bowing
  • Gravity hinges contain no mechanical components. The functionality of these hinges can vary depending on the environment.
Brand Metlam
