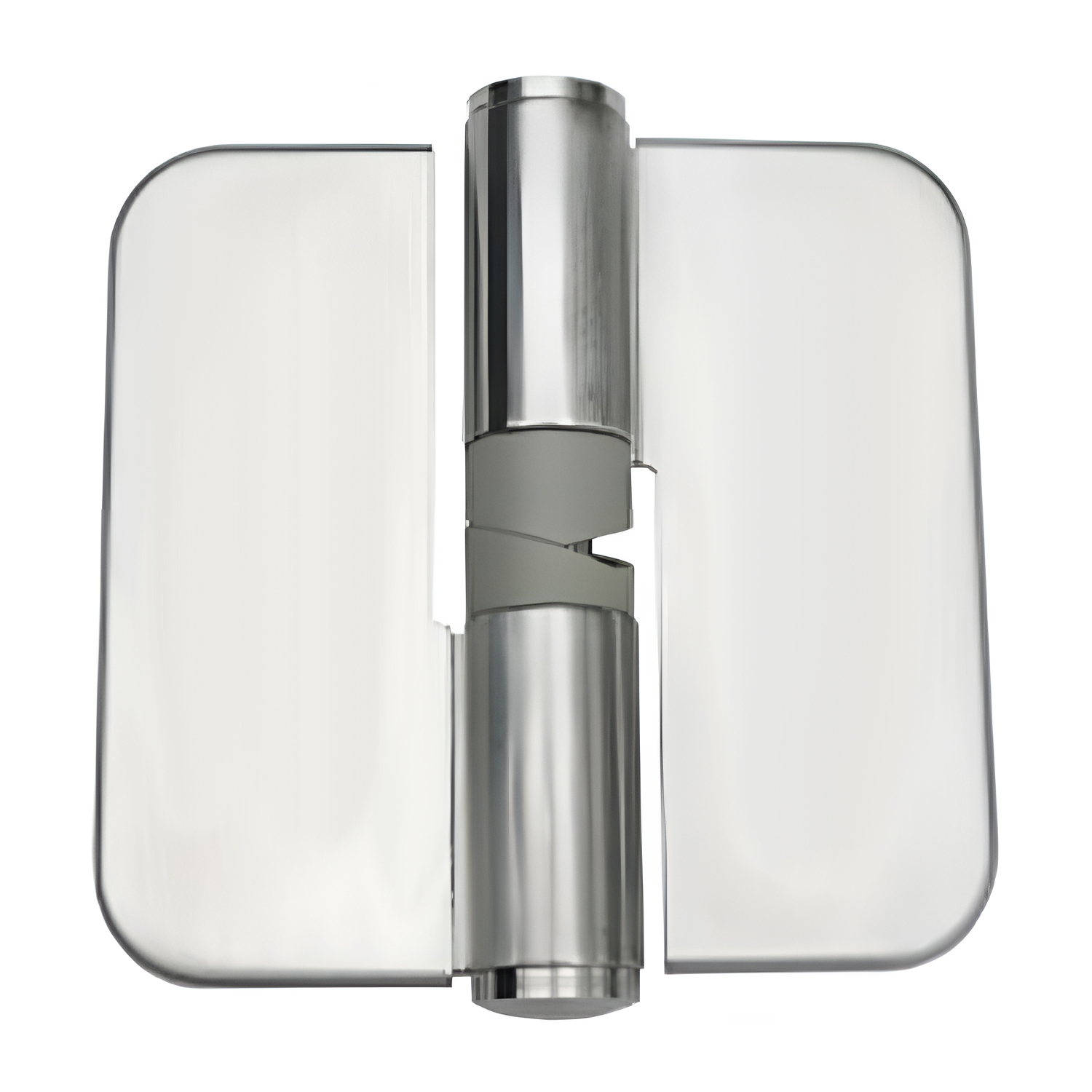

Metlam Gravity Hinge
207C_RHHC_SS

Gravity Hinge is a type of hinge that operates based on the weight of the door itself.

Gravity Hinge Function - can be set to automatically open or close by utilizing the door’s weight as a constant force. Particularly useful for doors that need to swing smoothly without manual effort

Features:

  • Gravity-assisted door opening/door closing with lift-off capability

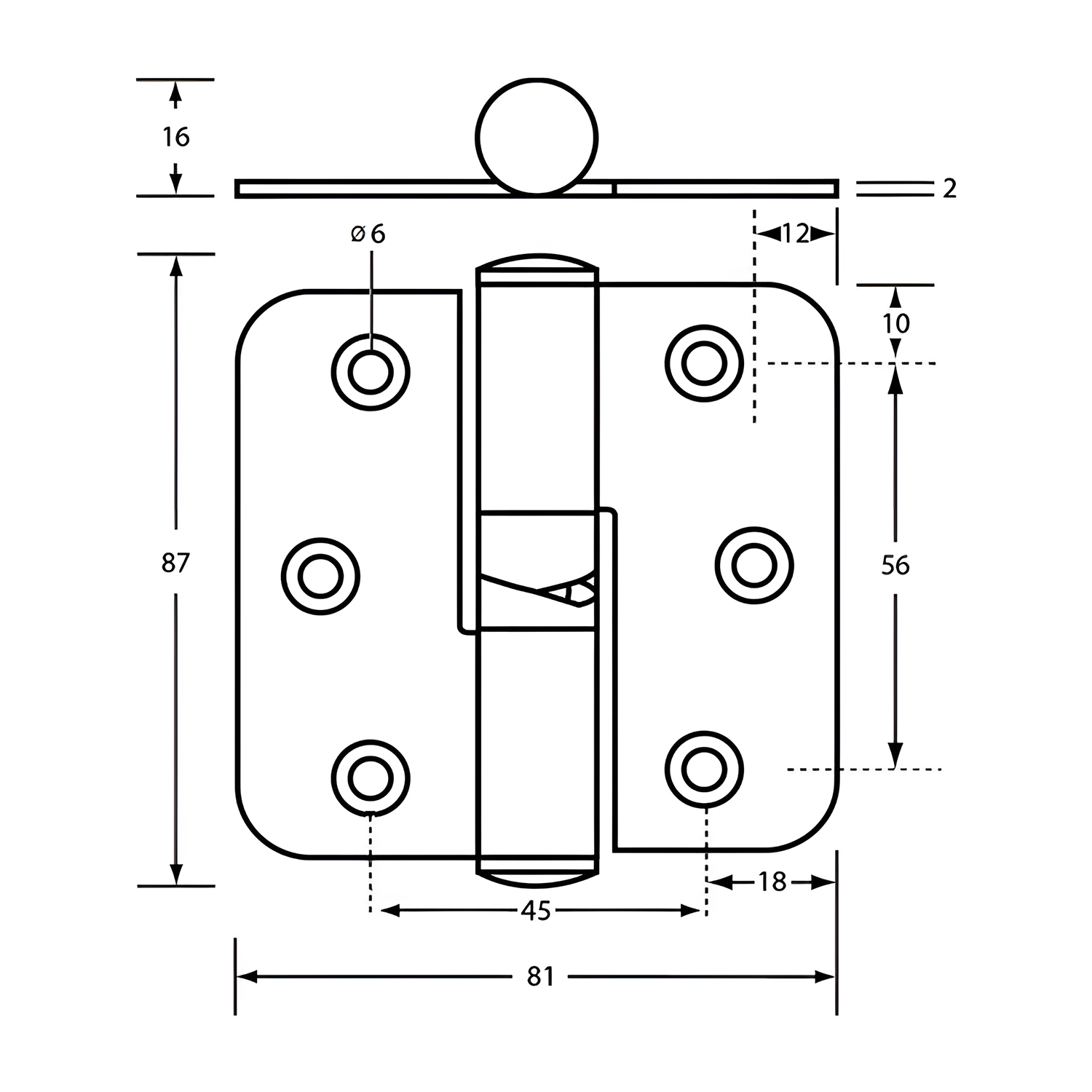

Specifications:

  • Material: Diecast Zinc and Stainless Steel Shaft
  • Minimum Hinge Clearance: 35mm
  • Load Rating: 15kg per Hinge
  • Function: Hold Close

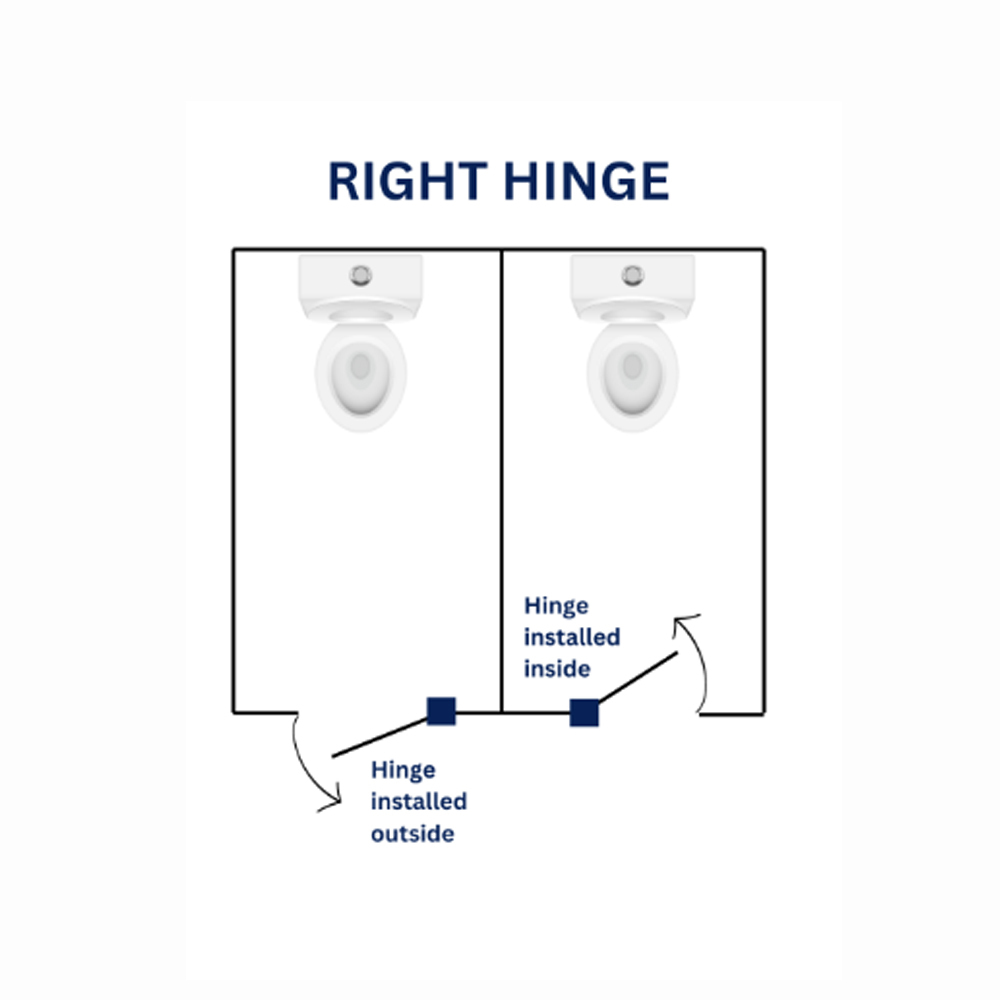

  • Handing: Right Hand
  • Height: 87mm
  • Length: 81mm
  • Thickness: 2mm
  • Centre to Centre: 56mm
  • Fixing: Concealed Bolt Through
  • Finish: Satin Stainless Steel
SKU MET207CRHHCSSBF
Brand Metlam
