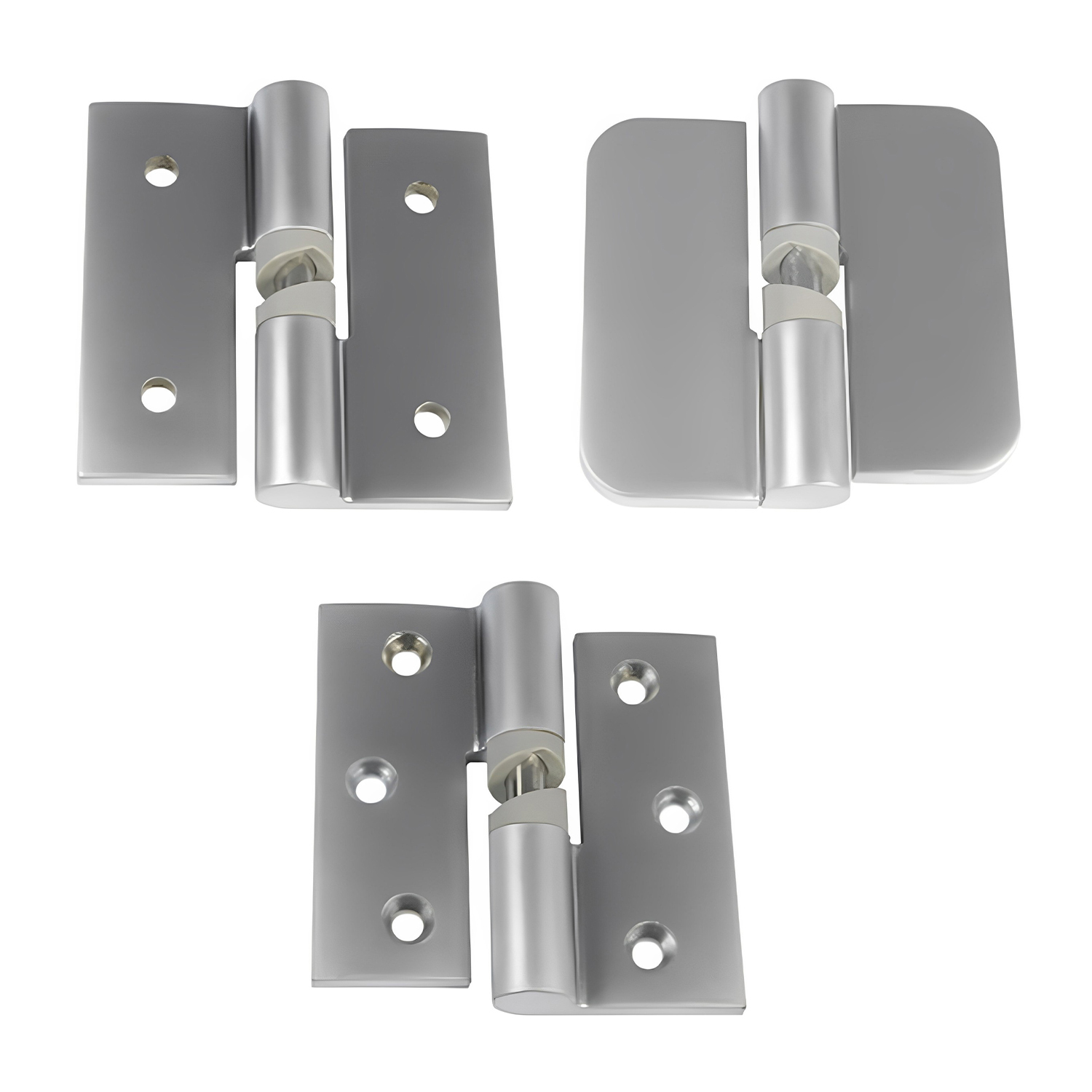

Metlam Gravity Hinge

Gravity Hinge is a type of hinge that operates based on the weight of the door itself.

Gravity Hinge Function - can be set to automatically open or close by utilizing the door’s weight as a constant force. Particularly useful for doors that need to swing smoothly without manual effort

Features:

  • Gravity-assisted door opening/door closing with lift-off capability

Specifications:

  • Material: Diecast Zinc and Stainless Steel Shaft
  • Minimum Hinge Clearance: 30mm
  • Load Rating: 15kg per Hinge
  • Function: Hold Open

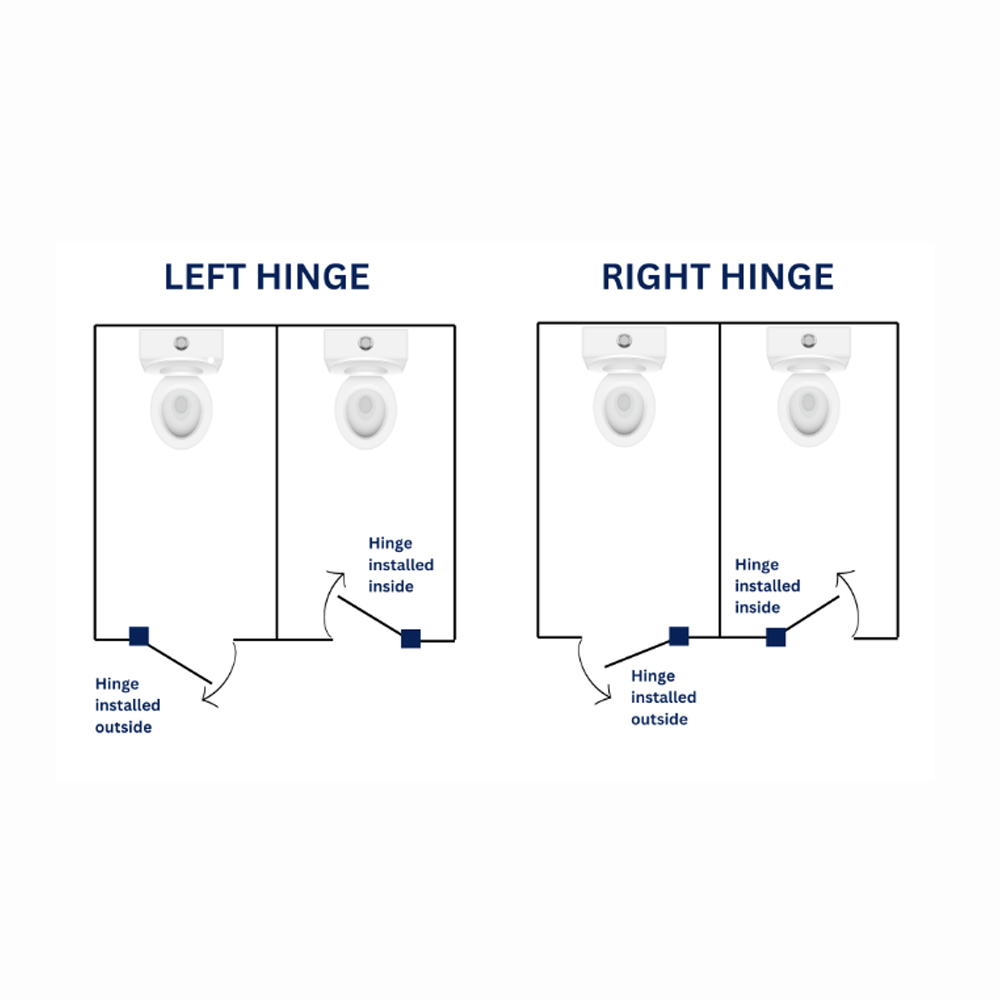

  • Handing: Right Hand
  • Height: 80mm
  • Length: 82mm
  • Thickness: 5mm
  • Centre to Centre: 56mm
  • Fixing:
    • Concealed Bolt Through
    • Concealed Screw Fix
    • Visible Bolt Through
    • Visible Screw Fix
  • Finish: Satin Chrome
SKU MET106CSCRHHO_
Brand Metlam
