Metlam Moda Advantage Kit

Privacy Indicator Bolt ideally used restrooms, especially public toilets. They offer more security compared to regular locks.

Privacy Indicator Bolt Function - is used to indicate whether a single-occupant room is occupied or not. These bolts also serve as the room's main lock or additional security.

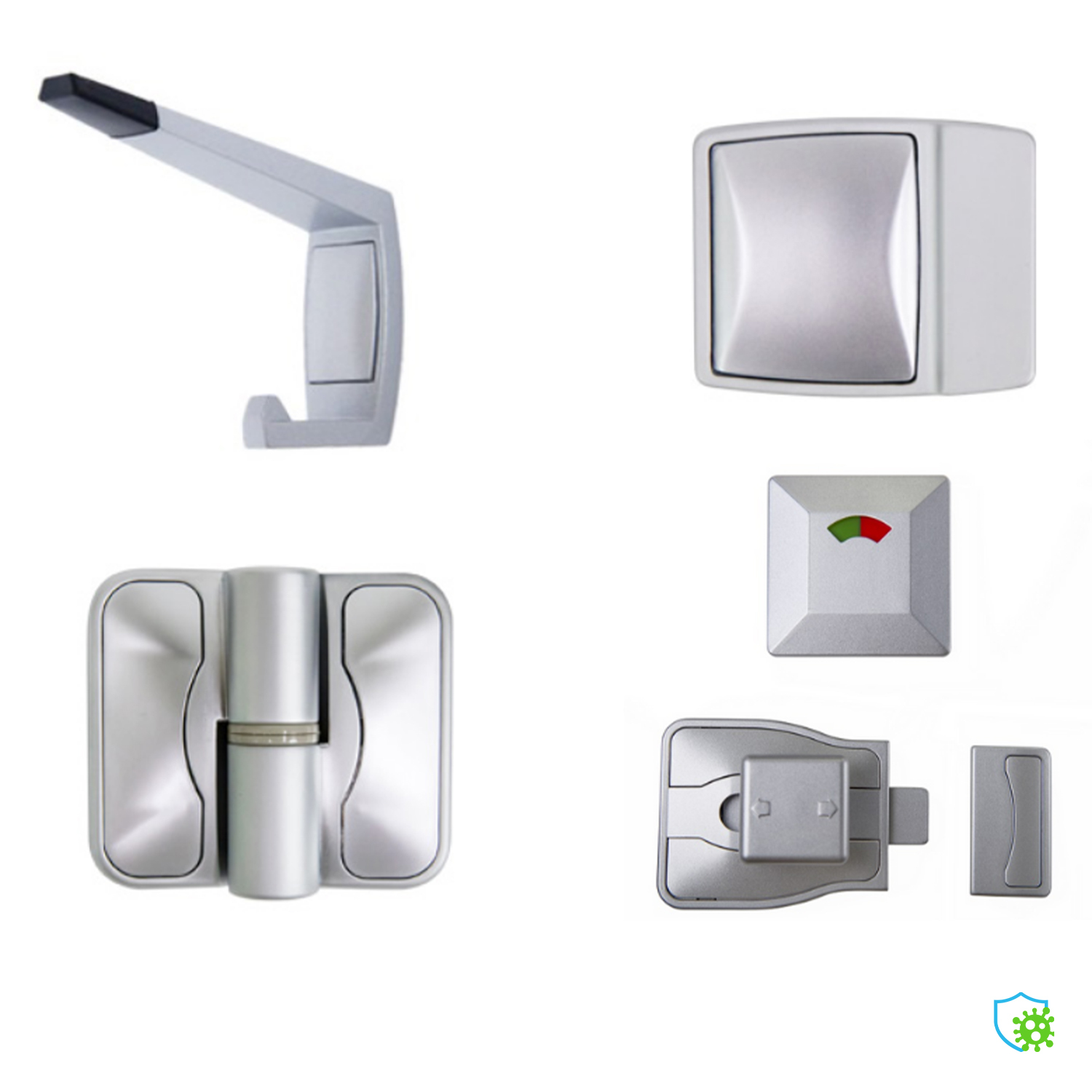

Includes:

• 1 x Lock and Indicator Set (XCEL_SLIDELOCK_ANMB)
• 3 x Spring Hinge (MODAHINGE_ANMB)
• 1 x Bumper (MODA_BUMP_ANMB)
• 1 x Coat Hook (MODA_HOOK_ANMB)

Specifications:

• Material: Diecast Zinc, Alloy ZP3 ABS Snap-On Cover
• Indicator Diameter: 50mm
• Indicator Projection: 10mm
• Indicator Depth: 8mm
• Indicator Centre to Centre: 38mm
• Slide Lock Height: 50mm
• Slide Lock Center to Center: 43mm
• Bolt Throw: 24mm
• Staple Center to Center: 8mm
• Staple Width: 28mm
• Staple Height: 36mm
• Staple Projection: 15mm
• Mounting: Concealed Screw Fix
• Hinge Load Rating: 15kg (per hinge)
• Hinge Mounting: Concealed Fix
• Minimum Hinge Clearance For Lift Off Hinges: 35mm
• Bumper Material: Diecast Zinc and Alloy ZP3
• Bumper Mounting: Concealed Fix
• Bumper Length: 55mm
• Bumper Width: 45mm
• Bumper Projection: 9.4mm
• Bumper Centre to Centre: 31mm
• Bumper Thickness: 7mm
• Hook Material: Diecast Zinc, Alloy ZP3 Rubber Bumper
• Hook Mounting: Concealed Screw Fix
• Hook Height: 60mm
• Hook Width: 25mm
• Hook Projection: 90mm
• Handing:
  • Left Hand
  • Right Hand
• Finish: Antimicrobial Coated

Compliance:

• Deemed to satisfy Disability Standard AS1428.1 for ambulant cubicle specification only.
