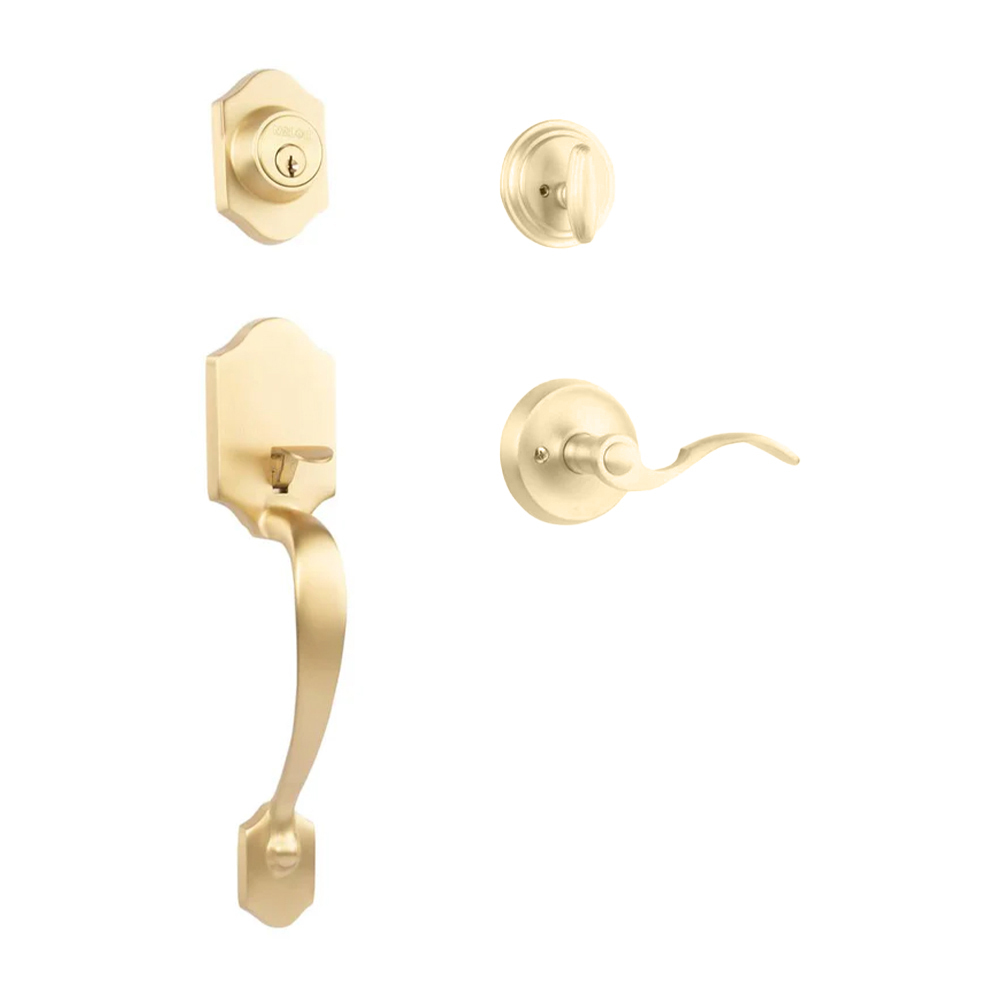

N2lok Charente Door Handle Single Cylinder Flutto Lever Entrance Set
765 CH SC FL/PI SB BP

Entrance Door Handle is defined as a lock that can be unlocked by a key from the outside when the outer lever is locked by a turn button on the inside lever. The inside lever is always unlocked.

Entrance Door Handle Function - Outside key unlocks the outside, the inside lever is free at all times, push button locks the outside.

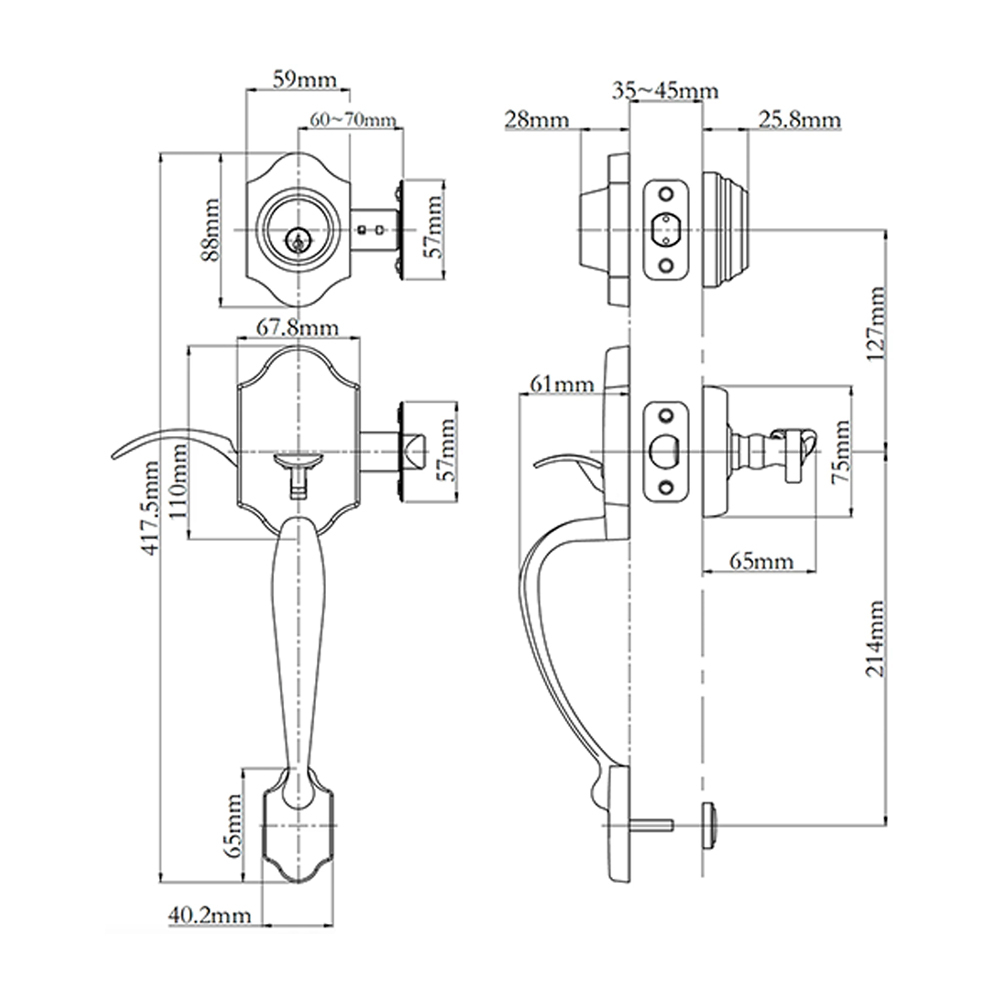

Specifications:

• Cylinder Height: 88m
• Cylinder Width: 59mm
• Cylinder External Projection: 28mm
• Cylinder Internal Projection: 25.8mm
• Overall Height: 417.5mm
• Handle Width: 67.8mm
• Handle Projection: 61mm
• Door Thickness: 35mm - 45mm
• Backset: 60mm - 70mm Adjustable
• Lever Projection: 65mm
• Finish: Satin Brass
