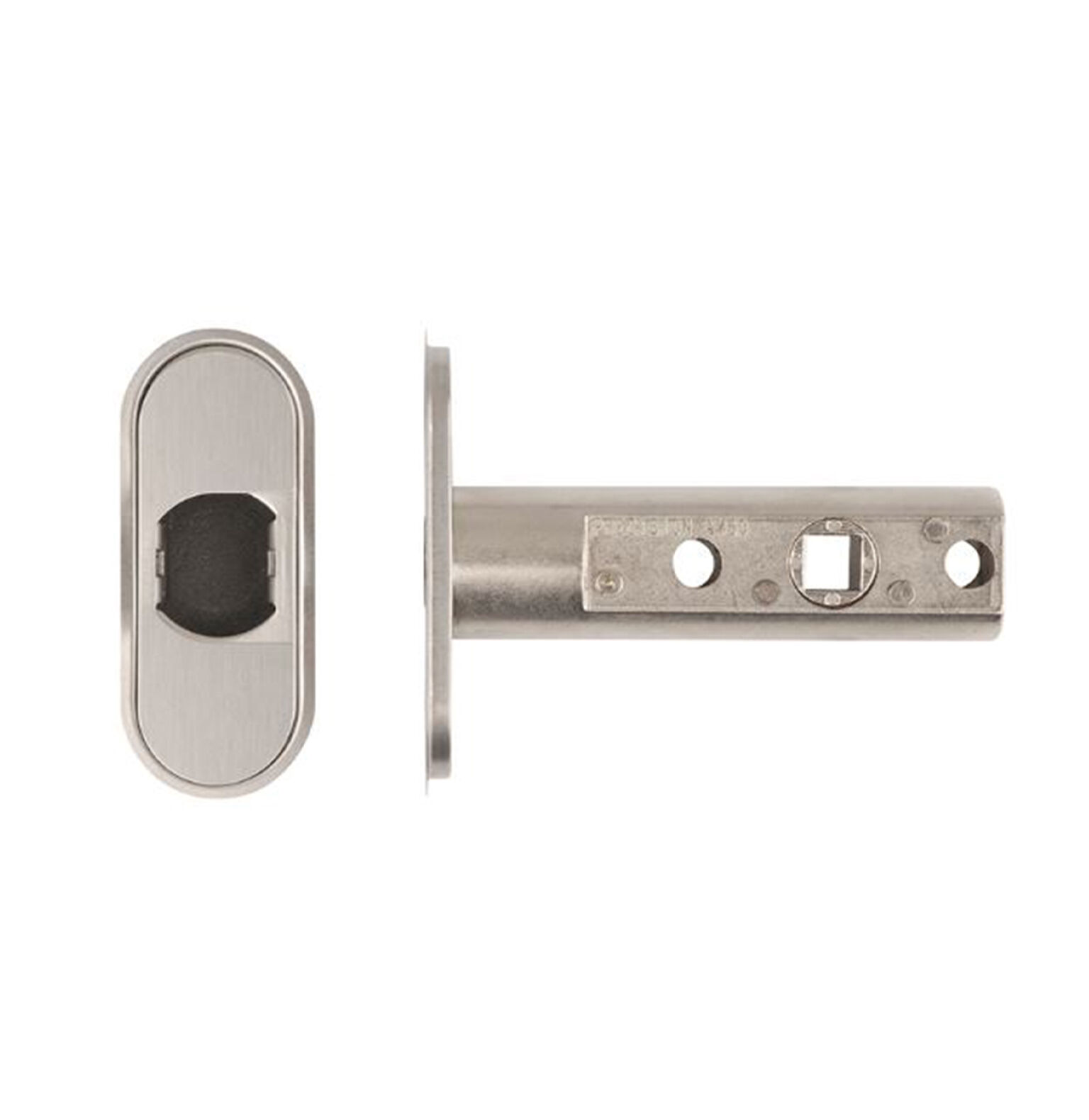

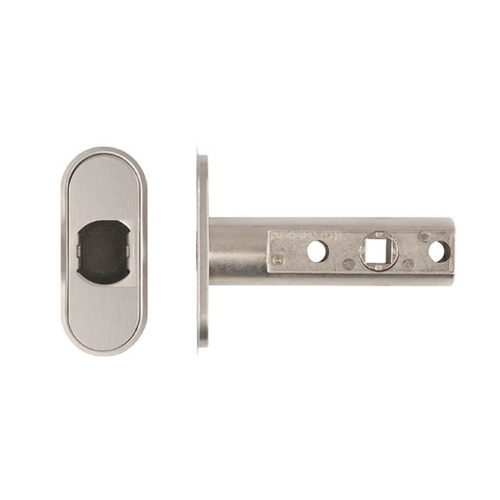

Precision Magnetic Tubular Latch
AM60-SS

Tubular Latch is suitable for all internal doors and can be used in conjunction with either lever handles or door knobs.

Tubular Latch Function - a mechanical device with spring assistance that shuts doors without the use of a lock.

Features:

• The AM60 has a modern, clean finish which is achieved with the use of magnets embedded in the latch and strikeplate
• This means the latchbolt remains flush in the door while it’s open and only extends when the door is closed
• The patented stainless-steel housings conceal any rough edges created during installation, while self-adhesive coverplates conceal the screwheads
• Padding in the strikeplate softens the impact of the latch entering the stikeplate, making it quieter than conventional latches
• Suitable with all types of sprung levers with 7.56mm and 8mm spindles, while innovative adjustment tabs on the strikeplate allow you to fine tune the fit of the latchbolt by up to 1.5 mm

Specifications:

• Material: Rare Earth Magnet, Stainless Steel, Die Cast
• Backset: 60mm
• Bolt Through Fixing Centres: 38mm to 41mm
• Finish: Satin Stainless Steel
