Raven Automatic Door Bottom Seal
A38SIB42

Door Bottom Seal - used to close gaps around door frames (the jambs and the header). Sound, light, draught, moisture, fire, and smoke can all be significantly reduced by closing the gaps along the door frame.

Door Bottom Seal Function - the seal has a spring loaded mechanism which lifts the seal clear of the floor, in a parallel motion, as soon as the door is opened. Pressure against the door jamb on the adjustable brass strike button operates the seal automatically.

A medium temperature smoke door bottom seal, with an extruded silicon sealing component. It is a heavy duty automatic door bottom seal which is spring loaded to lift clear off the floor as soon as the door leaf is opened by a few millimetres.

The seal is operated automatically by pressure against the door jamb on the adjusting screw. It seals when the door closes and retracts automatically when the door is opened. It is self levelling.

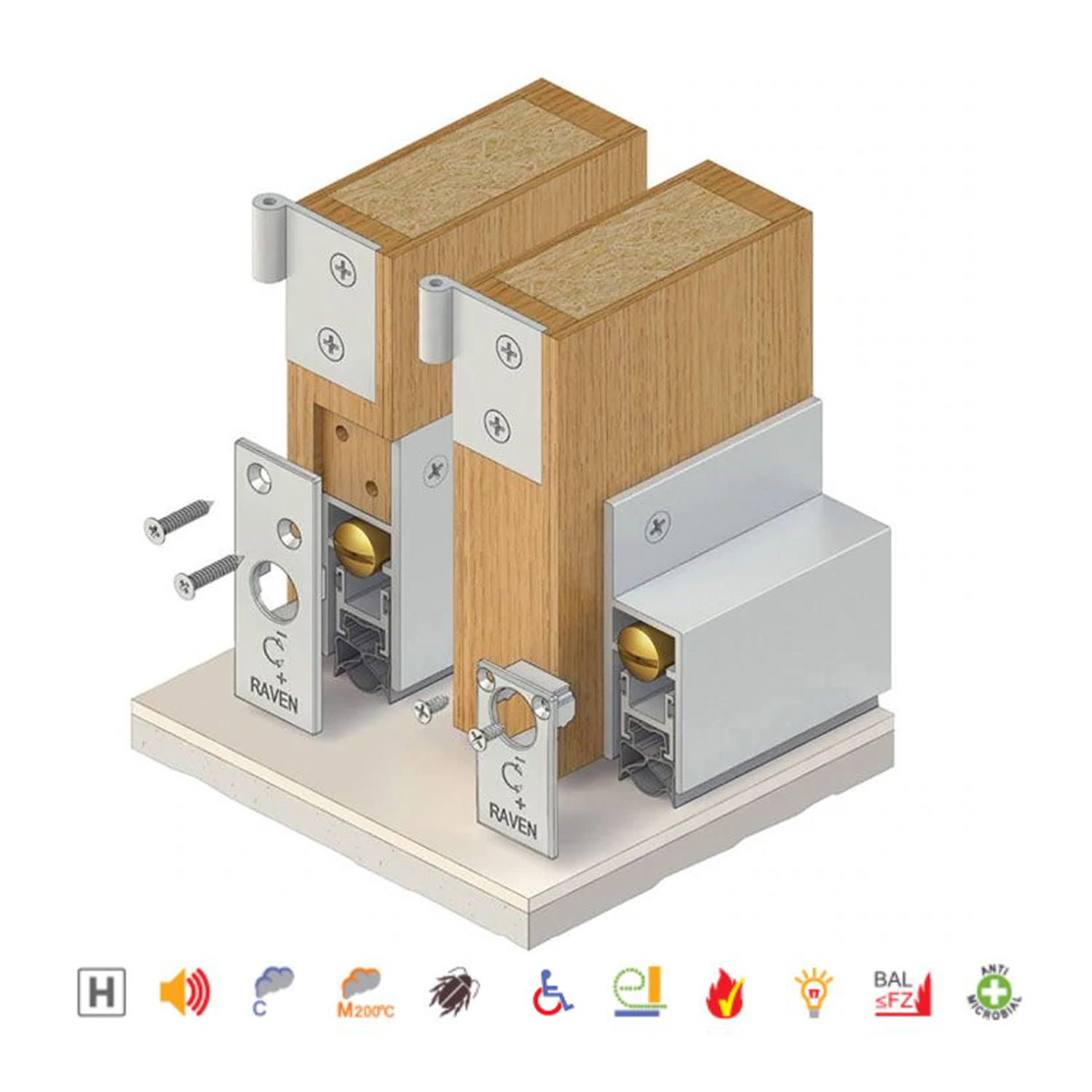

RP38Si can be face mounted or semi morticed in proprietary fire doors. It is adjustable for left and right handed operation.

These seals are equivalent to Kilargo IS8090si.

Specifications:

• Location: Single or double butt hinged door bottoms. Minimum door thickness 50mm for rebated meeting stiles and 40mm for plain meeting stiles (for semi mortice).

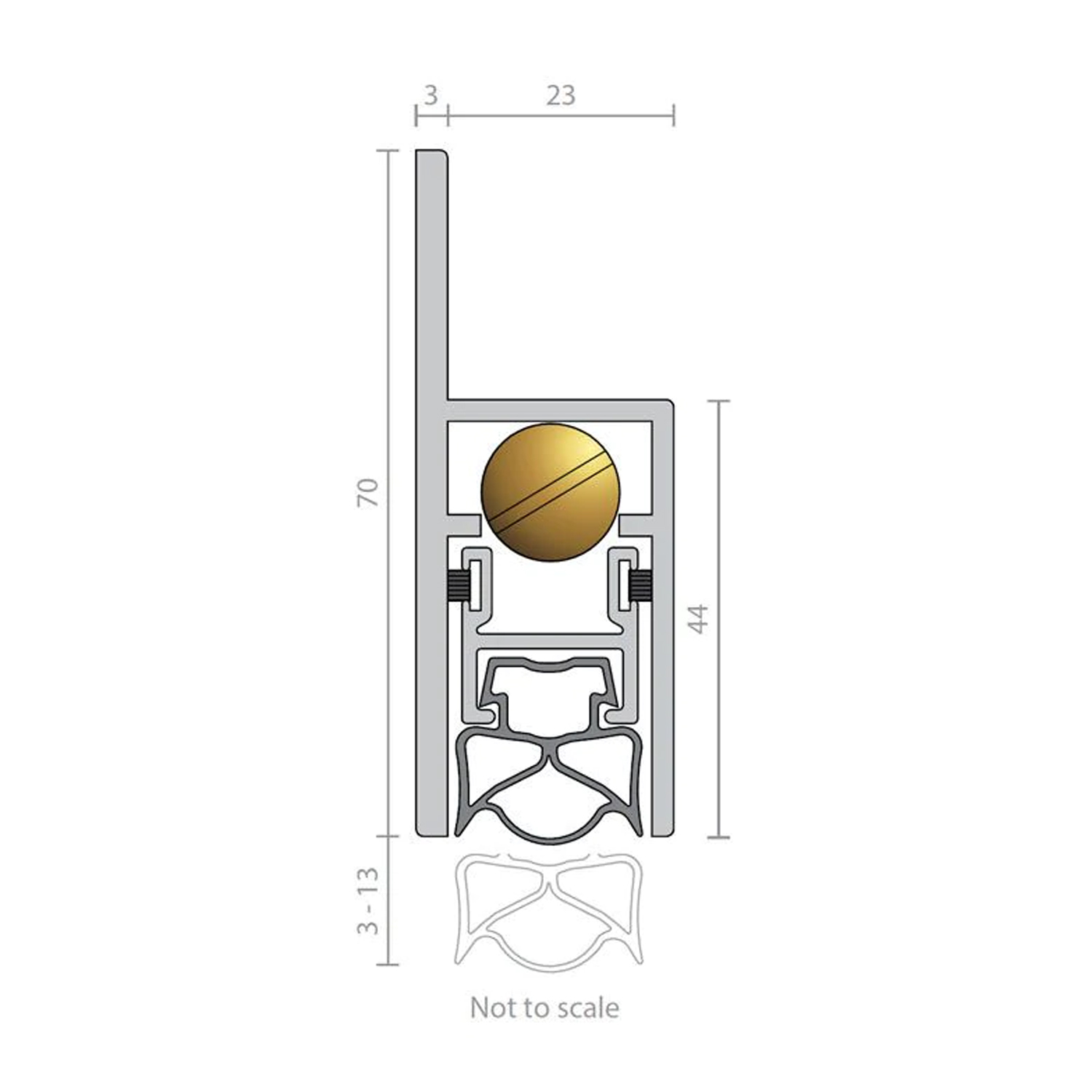

• Min/Max Gap: 3mm to 13mm.
• Seal Size: 1067mm
• Seal Material: Silicon Rubber (SE) (Grey).
• Fixing: Screw fix. Colour matched escutcheon plates and zinc plated, cross recess head S.T. screws supplied.
• Adjustment: Has screw for sealing action adjustment.
• Replacement Seal: RP338Si.
• Finish: Bronze Anodised

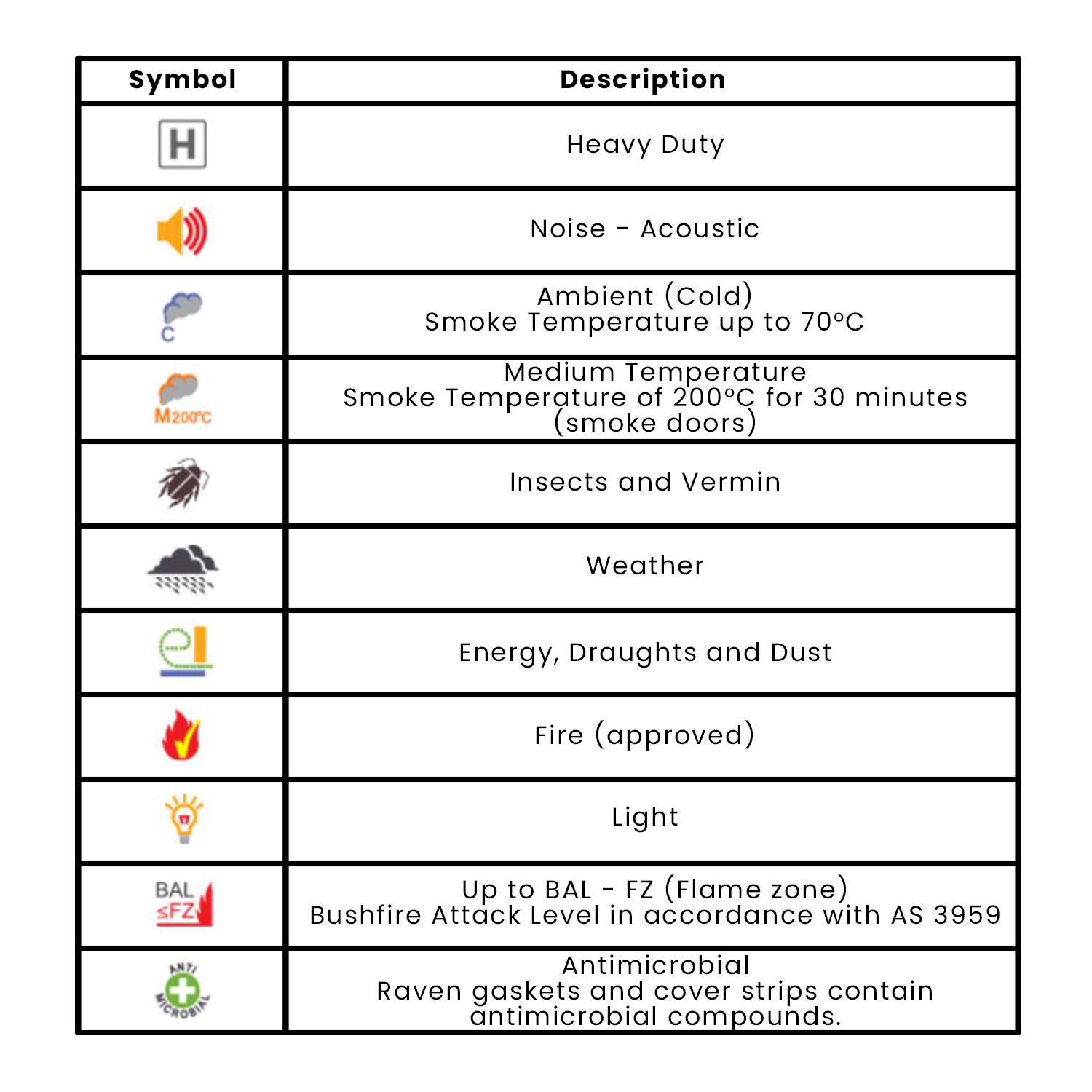

Approvals:

• Fire & Smoke:
  • AUS/NZ: Meets NCC BCA Spec. C3.4 for fire & smoke doors. Approved to AS 1530.4 & AS/NZS 1905.1. Meets requirements of NZ BC Compliance Doc. C/ASI 6.19.2 & App. C6.1.1.
  • UK/EU: Conforms to Approved Document B. Approved to BS 476 Pt. 20 & 22 (similar to BS EN 1634-1). Approved on fire rated doors up to FRL & FRR-/240/60 and FD240 Gasket flammability index 1 when tested to AS 1530.2.
• Smoke:
  • Tested to AS 1530.7, ISO 5925-1 & EN 1634-3 (similar to BS 476 section 31.1). Meets smoke leakage rates specified in AS 6905 & EN 13501-2 "Sa", "Sm".
• Durability:
  • Tested to over 1,000,000 operating cycles without failure.
• Energy:
  • Complies with NCC BCA Pt. 3.12.3.3 & J3.4 for Building Sealing and Energy efficiency.
• Patented, Registered Design.
