Raven RP105 Weather and Energy Seal

Weather and Energy Seal is designed to suit automatic sliding door operated, frameless glass and metal frame doors.

Weather and Energy Seal Function - is designed to prevent air, water, dust, insects, and noise from entering or escaping through gaps in doors and windows.

Features:

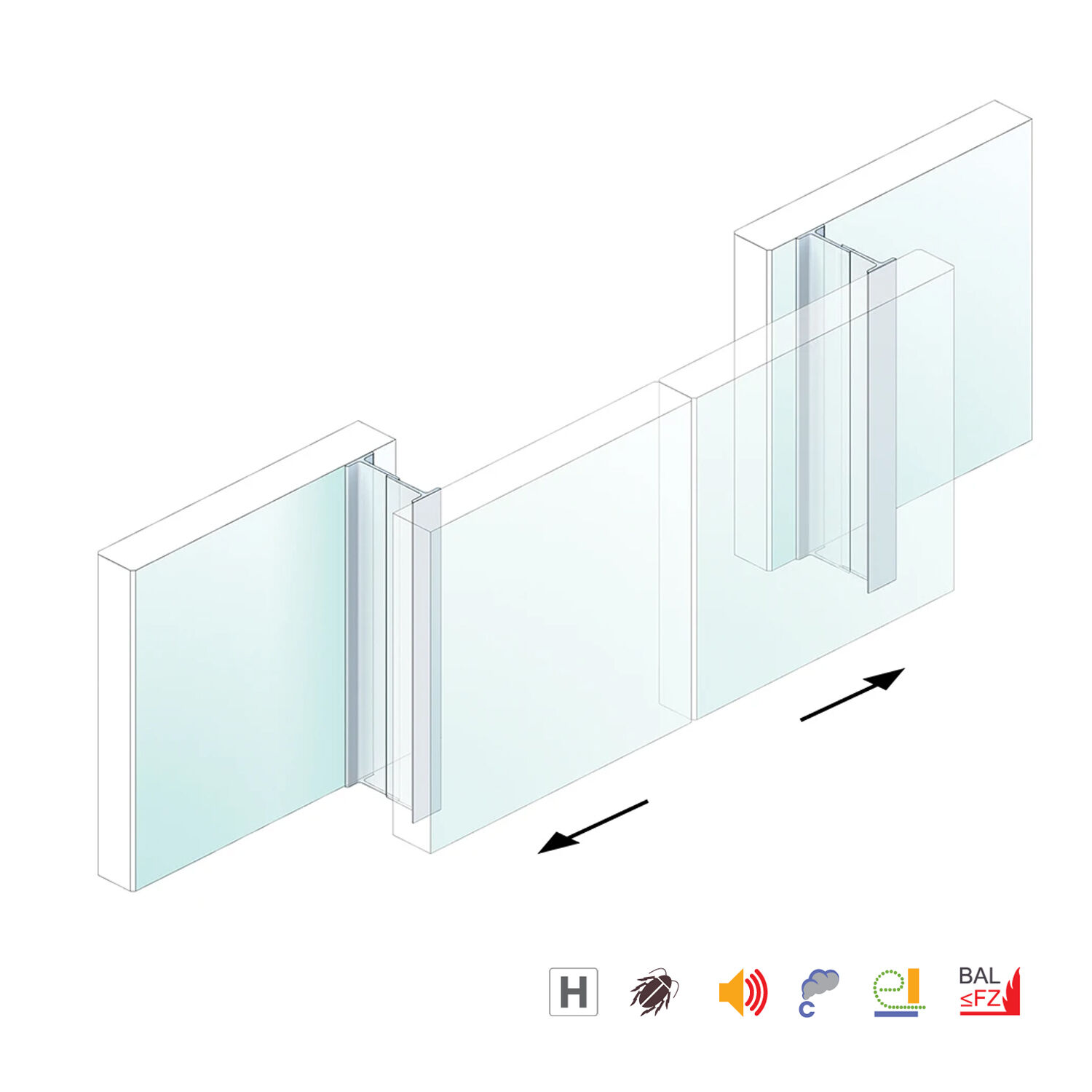

• Comprising of two sealing sections, the RP105 is fitted in an overlap configuration to effectively seal the vertical gap between the fixed and active sliding door leaf.
• Used in conjunction with Raven brush strip door bottom seal RP74F, meeting stile seals (astragals) RP103, RP104, RP42 and Raven Threshold plates.
• Global GreenTag - Platinum

Specifications

• Location: Automatic sliding door operated, frameless glass & metal frame doors.
• Size: 3000mm
• Fixing: Self-adhesive

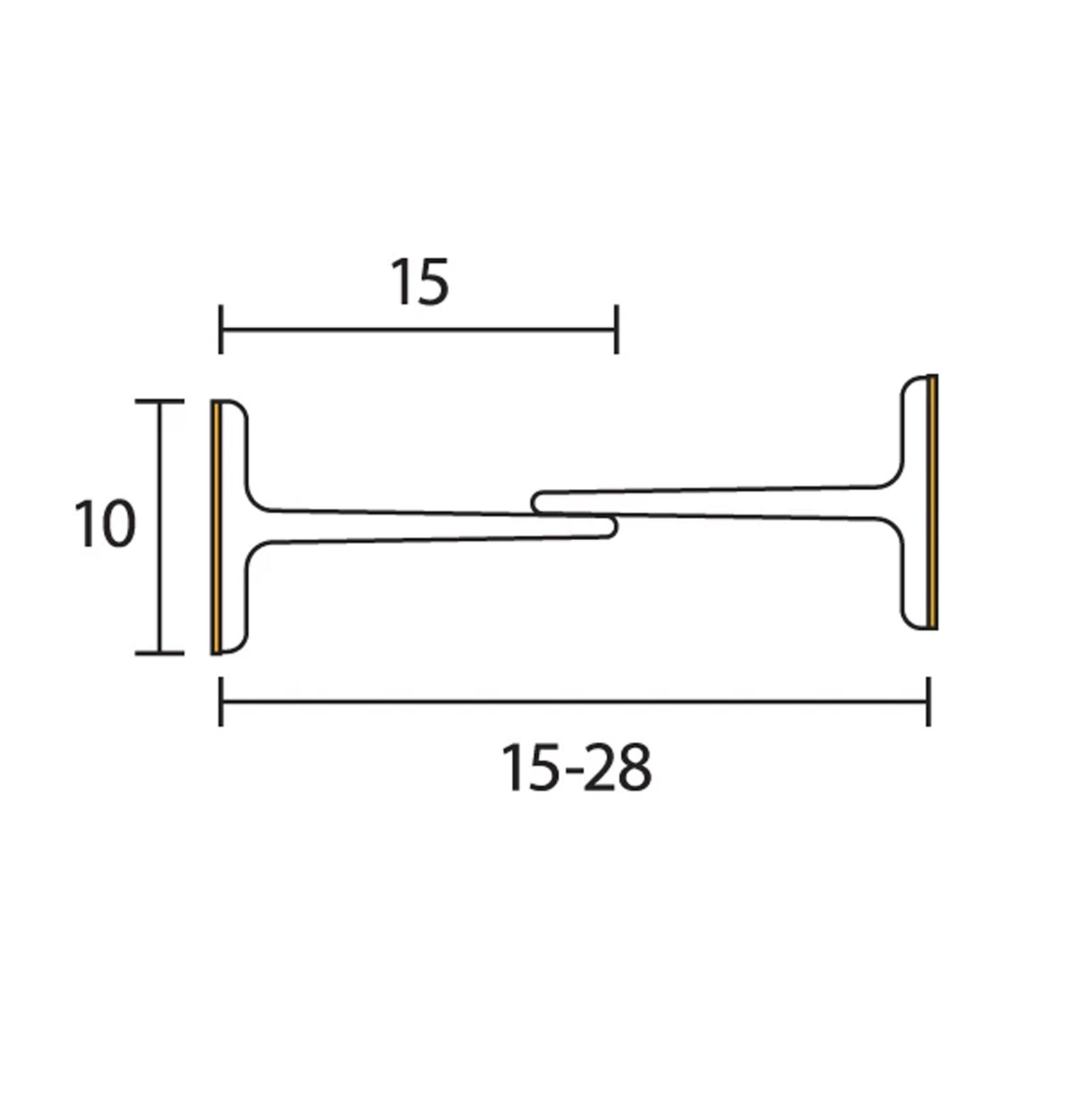

• Minimum and Maximum Gap: 15mm to 28mm (Gap is determined prior to installation)
• Material: Rigid and Flexible PVC (Clear rigid and flexible co-polymer seal)
• Door/Frame Construction: Aluminium, Glass
• Door Type: Sliding
• Finish: Translucent

Note: Contact surface must be clean, smooth and if painted, well cured. Self-adhesive seals will not adhere to oiled or alkyd finishes or to easy clean wash and wear paint surfaces.

Approvals:

• Energy AUS/NZ: ABCB Housing Provisions Standard 2022 13.4.4, NCC J5D5
