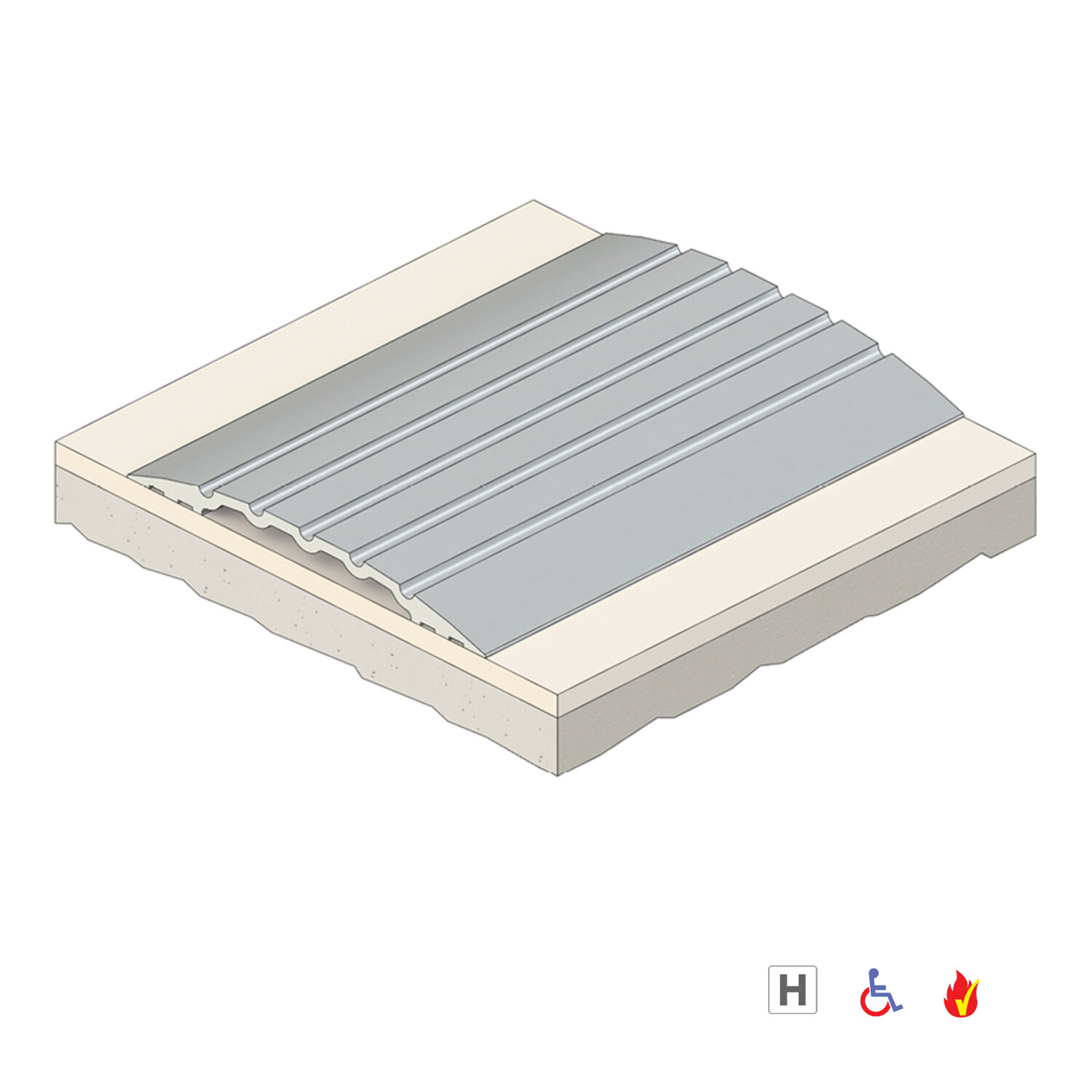

Raven RP115 Threshold Plates

Threshold Plate - enable a smooth entrance for mobility equipment or wheelchairs across uneven door thresholds.

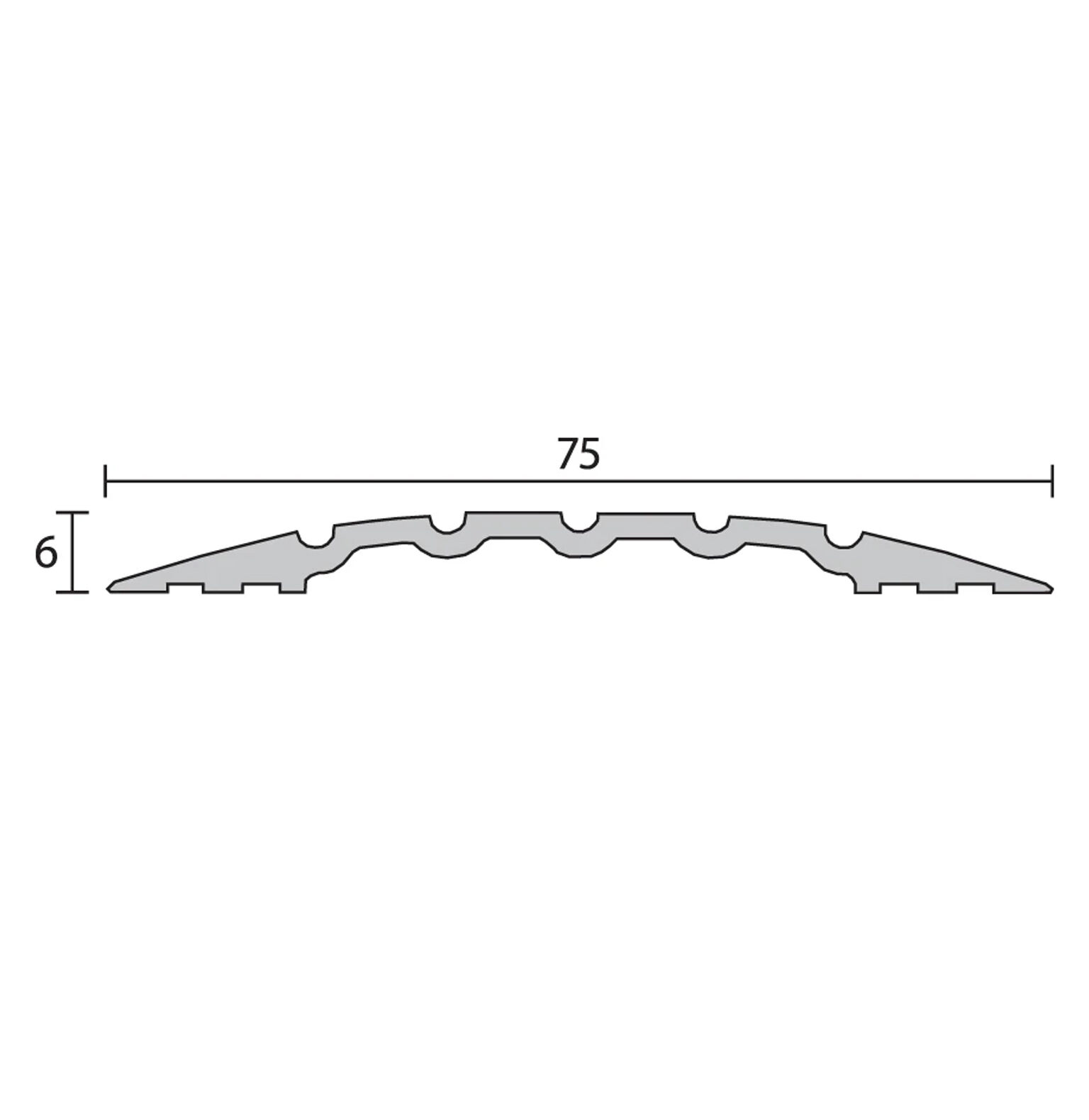

Threshold Plate Function - are hard anodized aluminum extrusions installed on the sill behind doors to give a smooth separation between neighboring floor surfaces.

Features:

• A heavy duty silicon rubber sweep seal for the bottom of outward opening doors. RP51Si has slotted fixing holes for adjustment with a push-in cover strip for concealed fixing.
• The RP51Si is ideal for use in conjunction with Raven threshold plates
• Bottom of single and double, outward opening, butt hinged doors, tilt up doors or can be used as a meeting stile seal (astragal)

Specifications:

• Location: Door sill
• Fixing: Screw Fixed, Adhesive Fixed (Screw fix or builders adhesive for concealed fixing (user determined)
• Material: Aluminium (Note: Architectural perimeter seal and door bottom extrusions are anodised 15andmu;m and threshold plates are anodised 25andmu;m for maximum durability. Black aluminium is anodised 25andmu;m to 40andmu;m)
• Available Sizes:
  • 1000mm
  • 1250mmn
  • 2000mm
• Finish: Clear Anodised

Approvals

• Access and Mobility AUS/NZ: NCC D3D16, NCC D4D4, AS1428.1:2009 Part 7.2. AS1428.1:2021 Part 4.2, NZBC D1/AS1 1.3.2
• Access and Mobility UK/EU: Approved Document M
• Accreditations: ANSI/BHMA: A156.21
• Fire AUS/NZ: AS 1905.1, NCC S12C2, NZBC C/AS2 4.16.2(a) andamp; App C6.1.1, AS 1530.4
• Fire UK/EU: Approved Document B, BS 476 Pt. 20 andamp; 22 (similar to BS EN 1634-1)
• Fire Rating: Up to FD180, Up to FRL andamp; FRR-/240/30
• BAL Statement: BAL FZ when used with a BAL rated door bottom seal in accordance with AS3959
