Raven RP120 Batwing Perimeter Seal
A120W3000

Perimeter Seal can be used to replace the door stop on both steel and timber door frames, where frames are non fire-rated.

Perimeter Seal Function - A wide selection of slimline perimeter seals for use around the head, jambs, and meeting stiles of doors. These seals are suited for use with drop seals or door bottom seals and can accommodate a wide range of gap widths and applications.

Features:

• RP120 is a co-extruded PVC acoustic and smoke seals

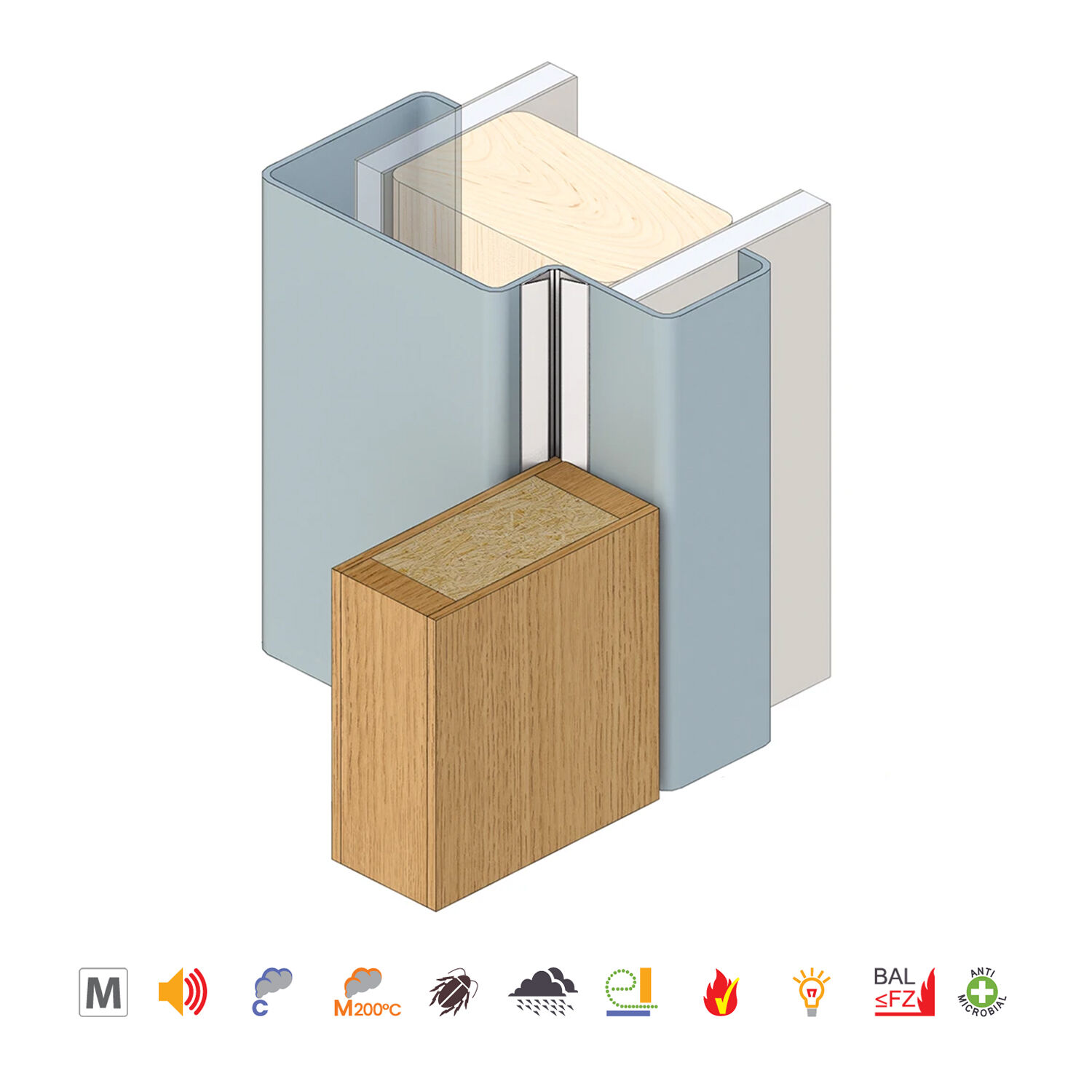

• Discreetly located in the protected corners of rebated timber or steel door and window frames
• Suitable for new and retrofit applications
• Can be used in conjunction with Raven door bottom seals and astragals and threshold plates

Specifications:

• Location: Around rebated frames of single and double butt hinged doors and windows
• Min/Max Gap: 3mm to 5.5mm
• Fixing: Aggressive self adhesive backing tape on both sides of the carrier
• Note: Contact surface must be clean, smooth and if painted, well cured
• Seal: Black co-extruded rigid and flexible flame retardant PVC

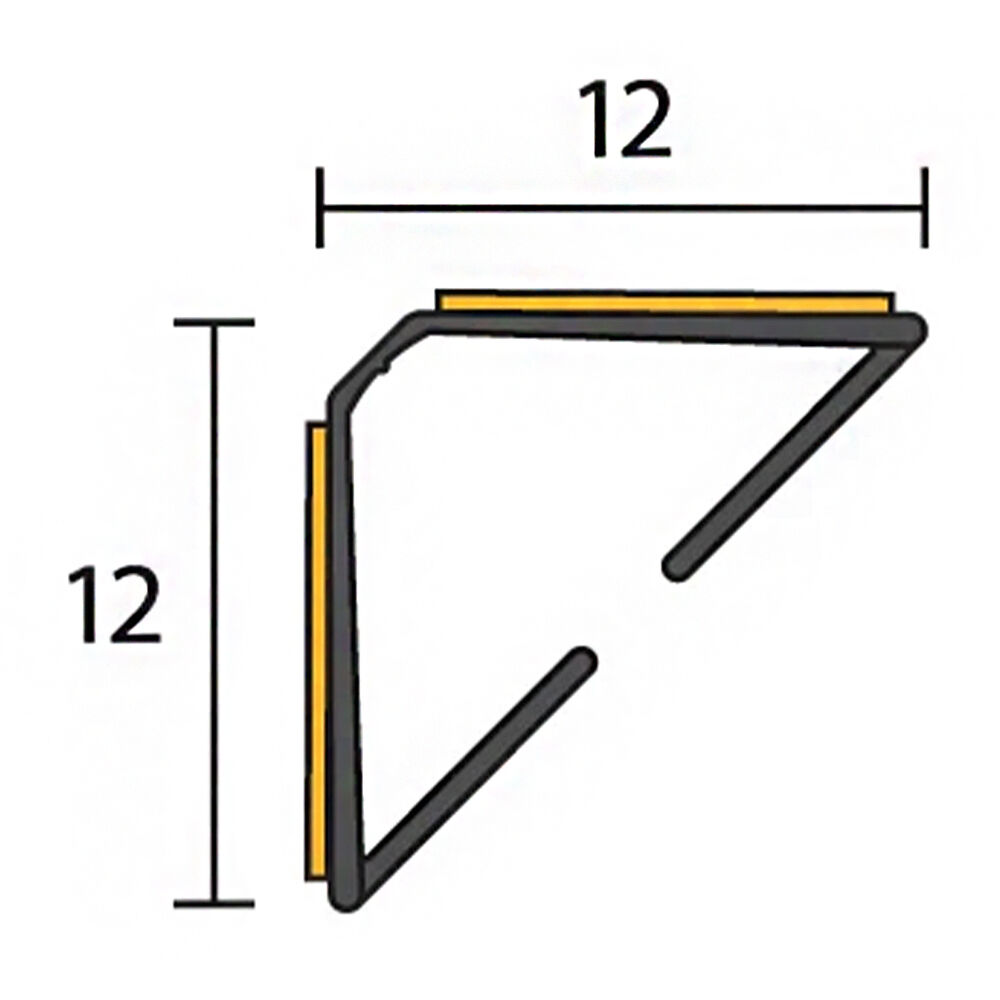

• Size: 3000mm
• Finish: White

Approvals:

• UL R37913.
• Certifire CF 5710
• UK/EU: Approved Document E. Rated to BS EN ISO 717.1.
• Fire AUS/NZ: NCC Spec. C3.4. AS1530.4 & AS/NZS 1905.1. NZ BC Compliance Doc. C/AS1 6.19.2 & App. C6.1.1.
• UK/EU: Approved Document B. (Tests above are similar to BS EN 1634-1 & BS 476 Pt. 20 & 22).
• FRL & FRR-/240/30 and FD240.Fire Approved
• Smoke NCC Spec. C3.4. AS1530.7 & BS EN 1634-3. Meets smoke leakage rates specified in AS6905 & EN 13501-2 “Sa”, “Sm”.
• Energy NCC Pt. 3.12.3.3 & J3.4.
