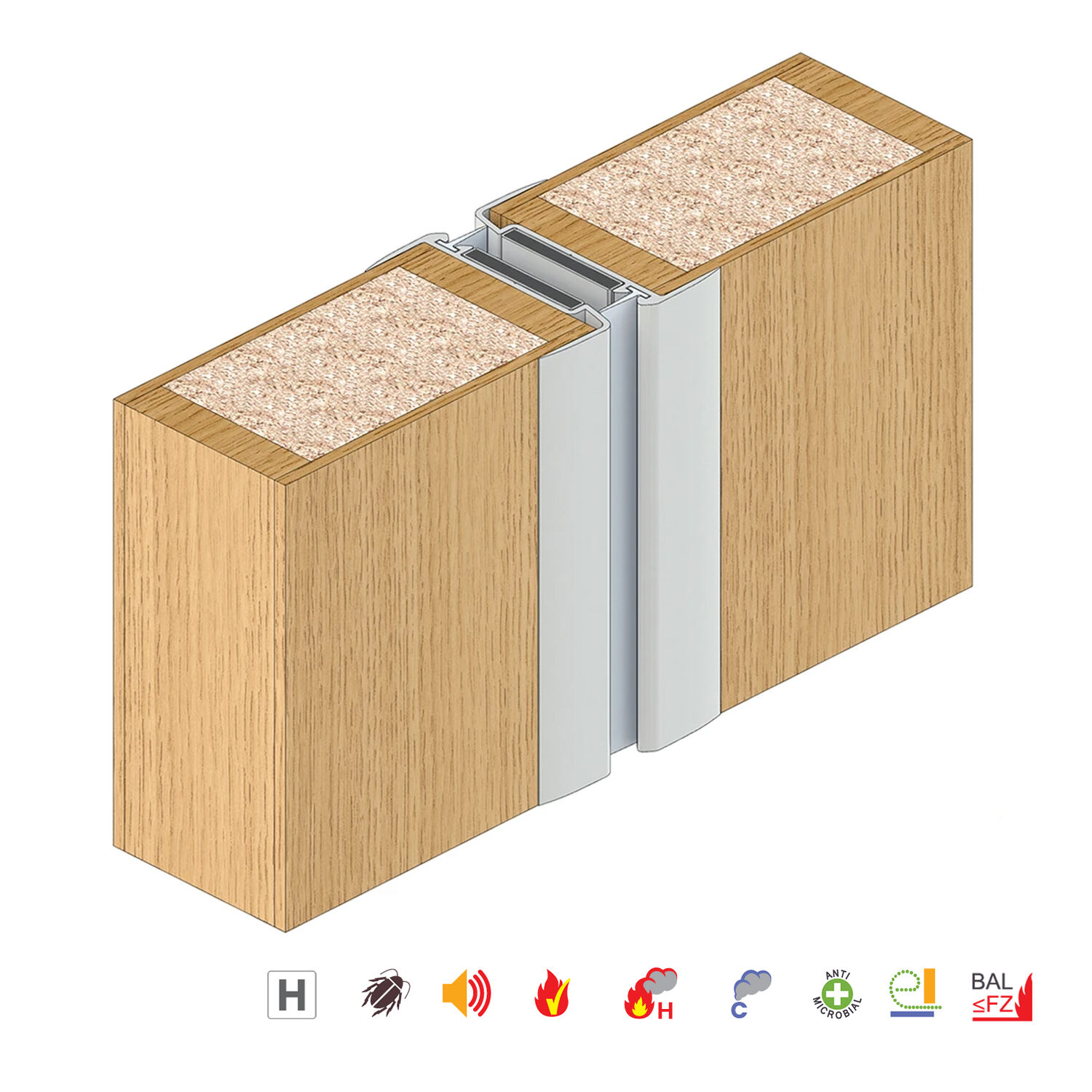

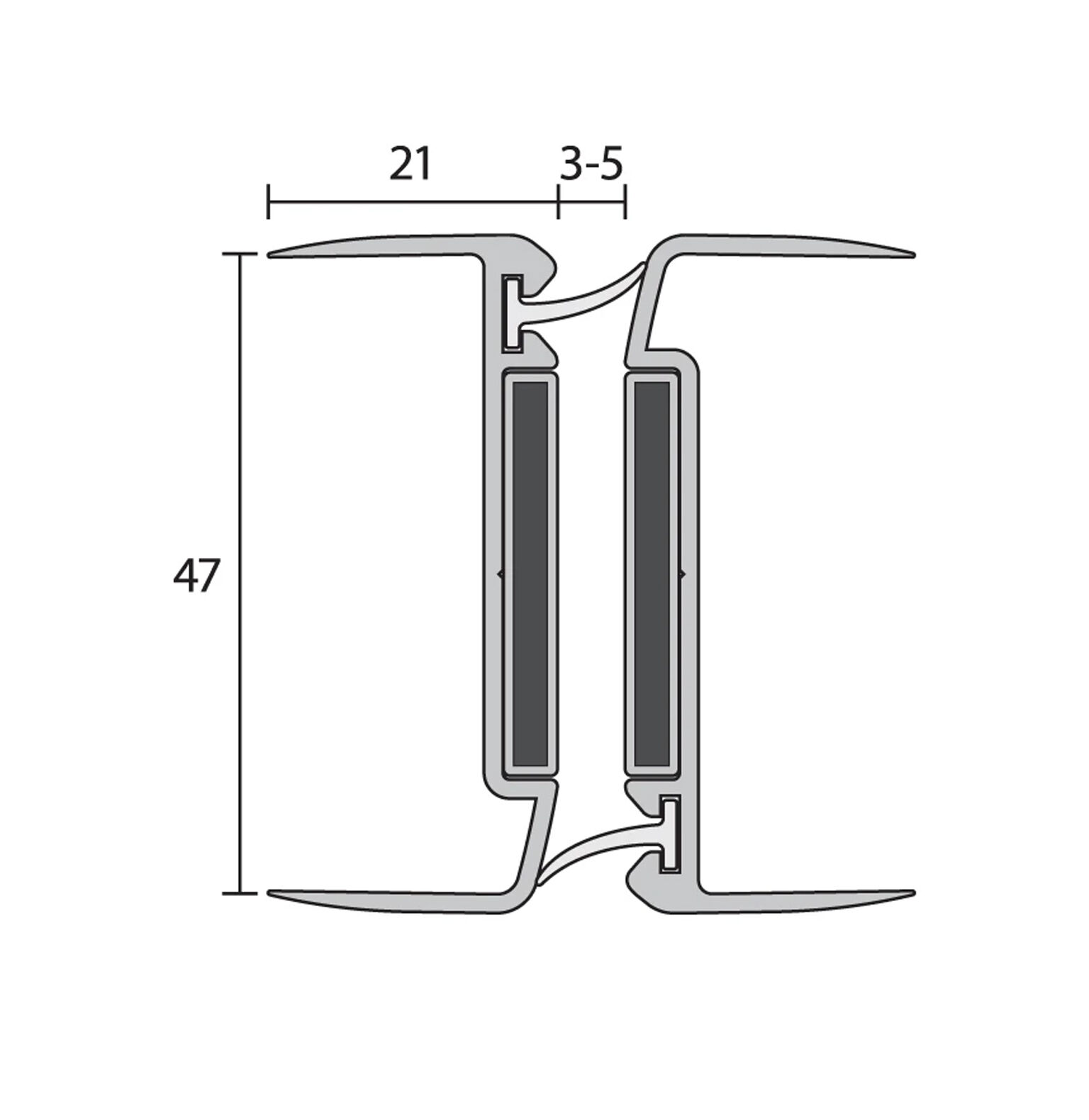

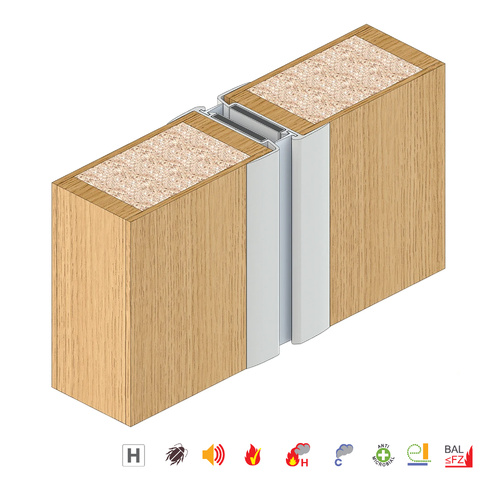

Raven RP122 Astragal Twin Section Meeting Stile Seal
A122C3000

Meeting Stile are seals for frameless glass sliding doors.

Meeting Stile Function - are applied to a pair of double doors to create a seal over the gap where the doors meet. Properly sealing a set of doors prevents infiltration of sound, light, drafts, thus creating an insulated environment. It can also be applied to contain fire and smoke in emergency situations.

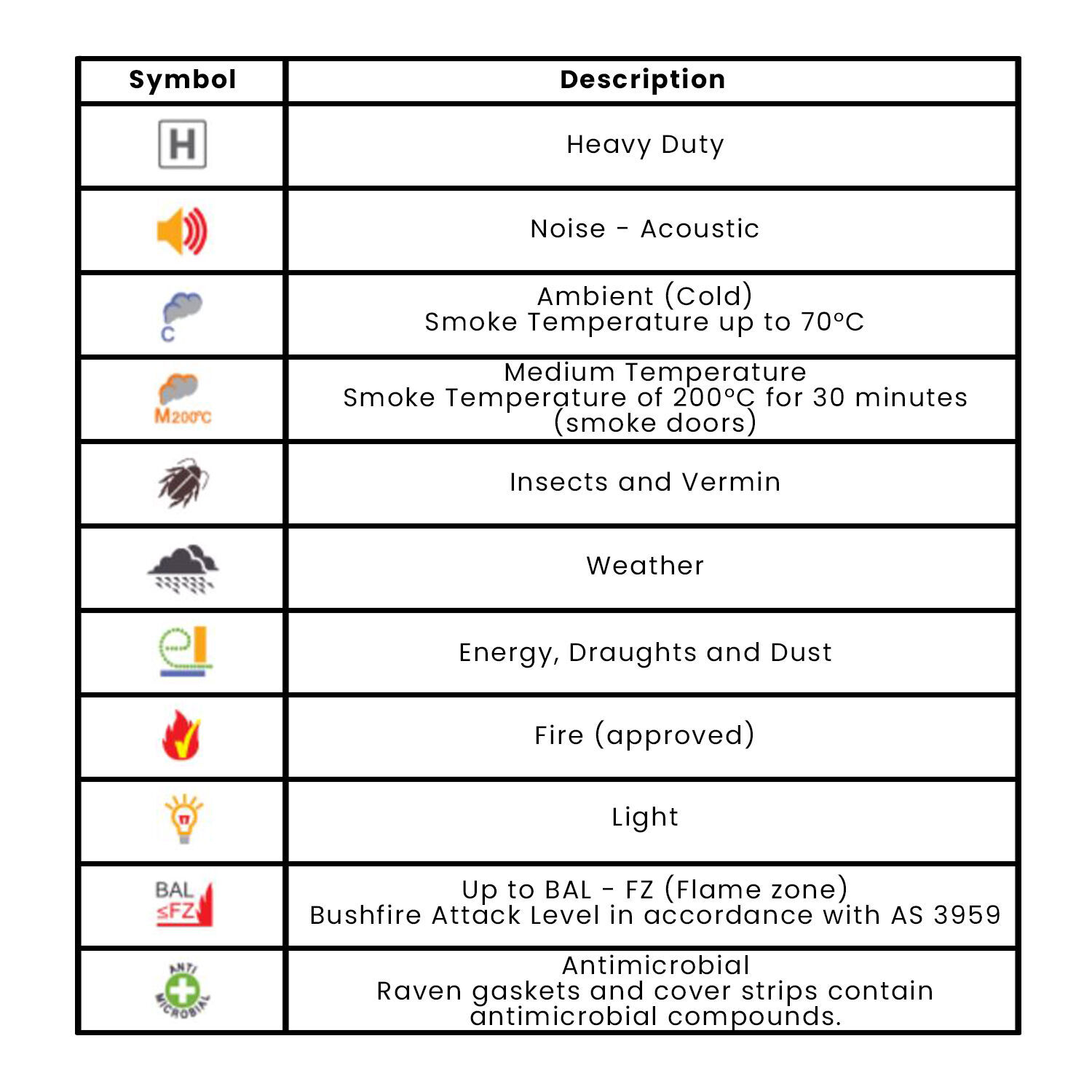

Features:

• An effective fire, smoke and acoustic seal designed for double action fire doors
• With concealed fixings, the RP122 is a twin section aluminium bullnose meeting stile seal (astragal) seal with an intumescent infill and PVC fin smoke seal

Specifications

• Location: Meeting stiles of pairs of 47mm nominal thickness double action fire doors.
• Size: 3000mm
• Fixing: Screw Fixed (Concealed screw fix. Zinc plated, cross recess head CSK S.T. screws supplied. Self-adhesive intumescent infill)
• Minimum and Maximum Gap: 14mm to 16mm (Gap is determined prior to installation)
• Replacement Seals: RP3122Si
• Material: Aluminium (Anodised aluminium with rigid PVC holder and intumescent infill, and silicon rubber (SE) medium temperature smoke seal fins)
• Door/Frame Construction: Timber
• Door Type: Double Inward Opening, Double Outward Opening, Pivot
• Finish: Clear Anodised

Note: Architectural perimeter seal and door bottom extrusions are anodised 15μm and threshold plates are anodised 25μm for maximum durability. Black aluminium is anodised 25μm to 40μm.

Approvals:

• Fire AUS/NZ: NZBC C/AS2 4.16.2, NCC Spec C3.4, AS 1530.4:2005 & earlier
• Fire UK/EU: Approved Document B, BS 476 Pt. 20 & 22 (similar to BS EN 1634-1)
• Fire Rating: Up to FD120, Up to FRL & FRR-/120/30
• Smoke AUS/NZ: BS EN 1634-3, NCC S12C4 - Meets smoke leakage rates specified in AS 6905 & EN 13501-2 “Sa”, “S200”, NCC S12C4, AS 1530.7
