Raven RP126Si Door Automatic Bottom Seal
A126SIC0920

Door Bottom Seal - used to close gaps around door frames (the jambs and the header). Sound, light, draught, moisture, fire, and smoke can all be significantly reduced by closing the gaps along the door frame.

Door Bottom Seal Function - the seal has a spring loaded mechanism which lifts the seal clear of the floor, in a parallel motion, as soon as the door is opened. Pressure against the door jamb on the adjustable brass strike button operates the seal automatically.

Features:

• Global GreenTag - Platinum
• An adjustable, automatic door bottom seal that is spring loaded to lift clear of the floor when the door is opened
• Acoustically designed, featuring extruded silicon gaskets for medium temperature smoke applications. RP126Si is operated automatically by pressure on the door jamb or stop by its adjustable strike. It is self levelling

Specifications:

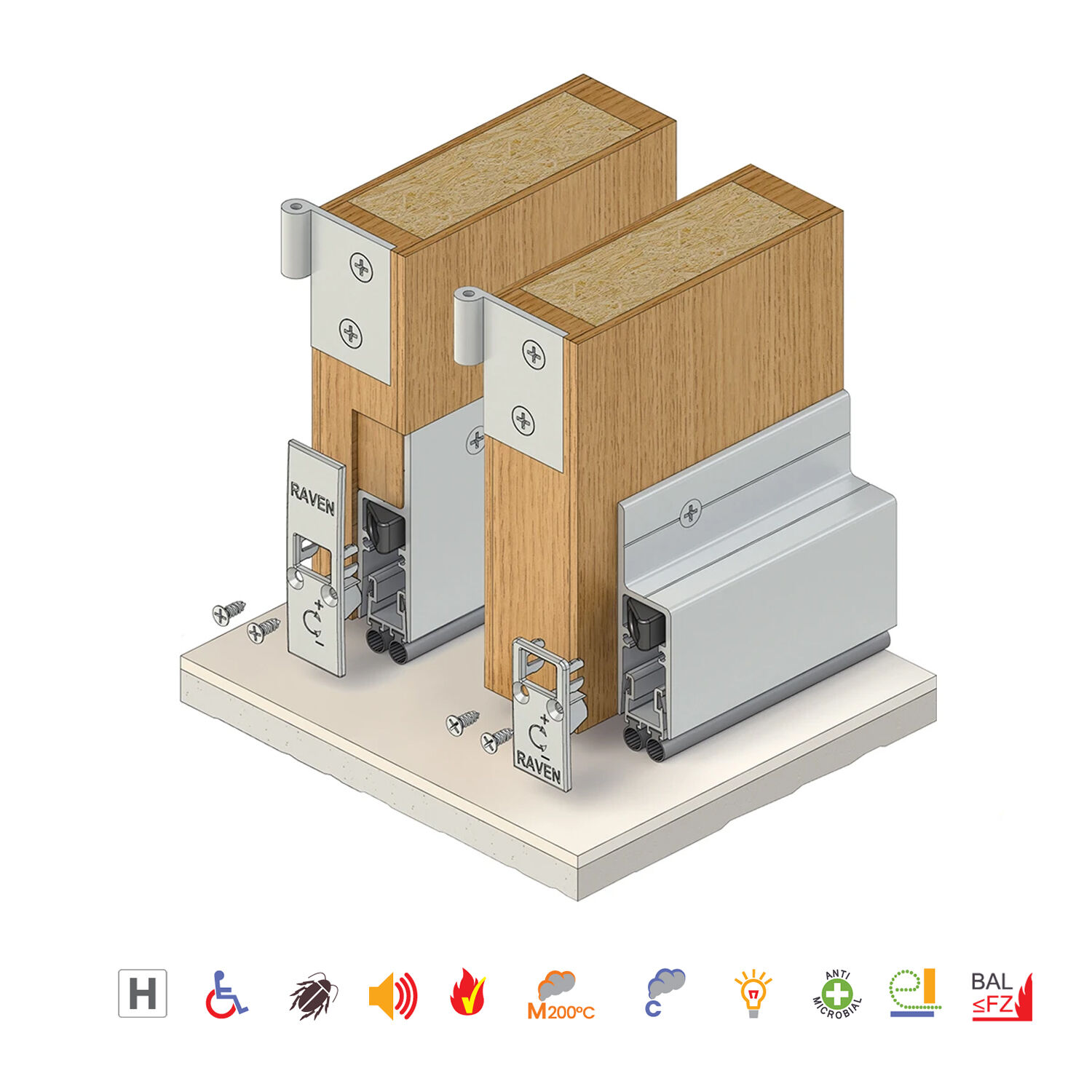

• Location: Face mounted or semi-morticed into the bottom of single and double Solid core butt hinged doors. Minimum door thickness of 35mm recommended for semi-morticed installations with plain meeting stiles. Minimum door thickness of 40mm recommended for semi-morticed installation with rebated meeting stiles. RP126Si can also be face mounted to the bottom of metal doors.
• Size: 920mm
• Fixing: Face Mounted, Semi-morticed, Screw Fixed

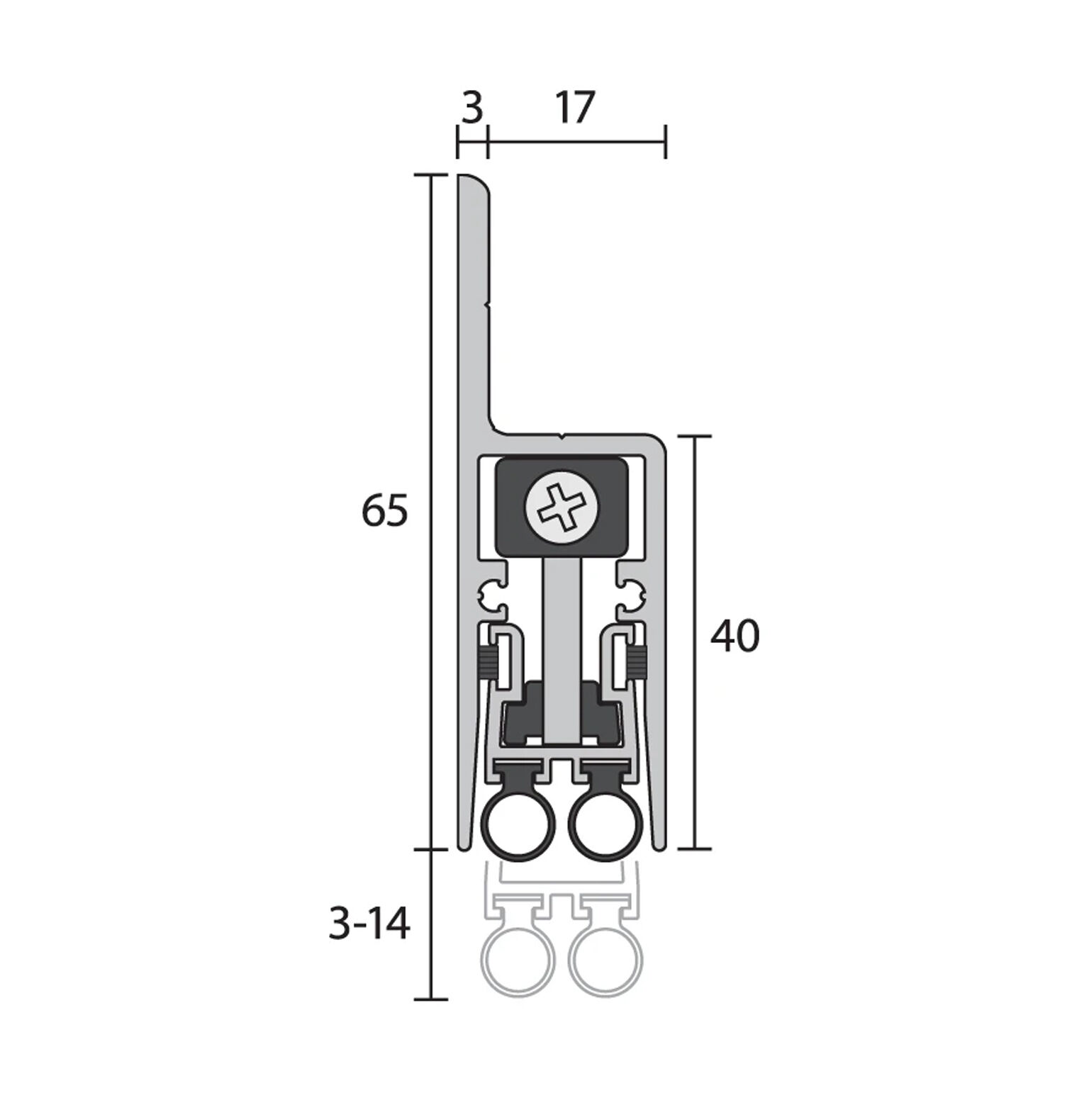

• Minimum and Maximum Gap: 3mm to 14mm
• Replacement Seals: RP3126Si
• Material: Aluminium (Anodised aluminium with silicon rubber (SE) gasket)
• Door/Frame Construction: Timber, Aluminium
• Door Type: Single Inward Opening, Single Outward Opening, Double Inward Opening, Double Outward Opening
• Patent Status: Patented
• Finish: Clear Anodised

Note: Architectural perimeter seal and door bottom extrusions are anodised 15μm and threshold plates are anodised 25μm for maximum durability. Black aluminium is anodised 25μm to 40μm.

Approvals:

• Accreditations: UL: R37913, Certifire: CF 5710, ANSI/BHMA: A156.22
• Acoustic AUS/NZ: NCC F7D6Acoustic UK/EU: Approved Document E, Rated to BS EN ISO 717-1
• Fire AUS/NZ: AS 1905.1, NZBC C/AS2 4.16.2, NCC S12C2, AS 1530.4\
• Fire UK/EU: Approved Document B, BS EN 1634-1
• Fire Rating: Up to FRL & FRR-/180/30
• Fire Flammability Index: Gasket flammability index 1 when tested to AS1530.2
• Smoke AUS/NZ: NCC S12C4 - Meets smoke leakage rates specified in AS 6905 & EN 13501-2 “Sa”, “S200”, BS EN 1634-3, NCC S12C4, AS 1530.7
• Energy AUS/NZ: ABCB Housing Provisions Standard 2022 13.4.4, NCC J5D5
• Durability: Tested to over 1,000,000 operating cycles without failure
• Insects & Vermin AUS/NZ: AS 4674 Sect. 2.1.5 Pt. (iv), AS 4674 Sect. 2.1.7
