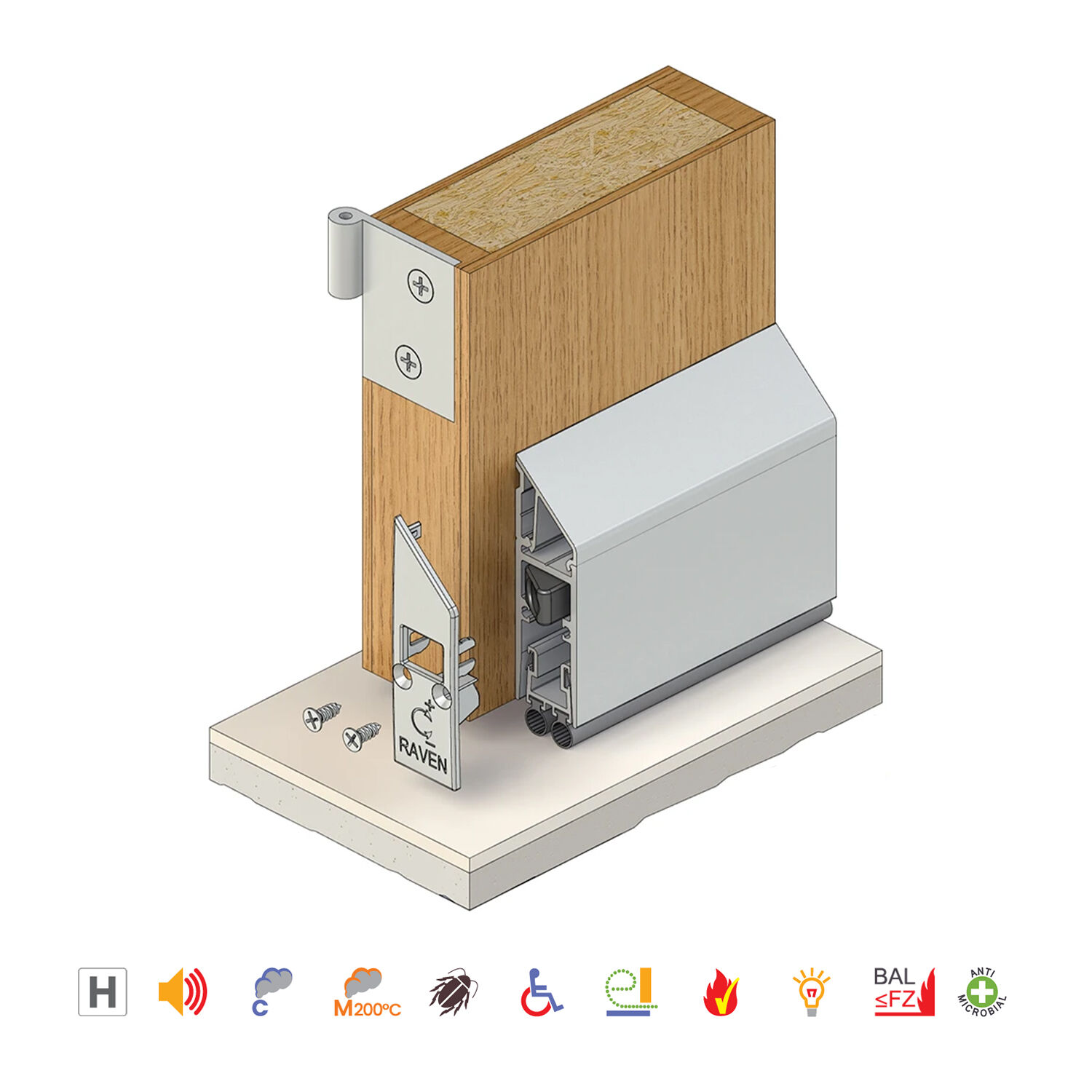

Raven RP128Si Automatic Door Bottom Seals

Door Bottom Seal - used to close gaps between the bottom edge of a door and the floor. Sound, light, draught, moisture, fire, and smoke can all be significantly reduced by closing the gaps along the door frame.

Door Bottom Seal Function - the seal has a spring loaded mechanism which lifts the seal clear of the floor, in a parallel motion, as soon as the door is opened. Pressure against the door jamb on the adjustable brass strike button operates the seal automatically.

Features:

• Adjustable, automatic door bottom seal that is spring loaded to lift clear of the floor when the door is opened
• Acoustically designed, featuring extruded silicon gaskets for medium temperature smoke applications
• Operated automatically by pressure on the door jamb by its adjustable strike. It is self levelling

Specifications:

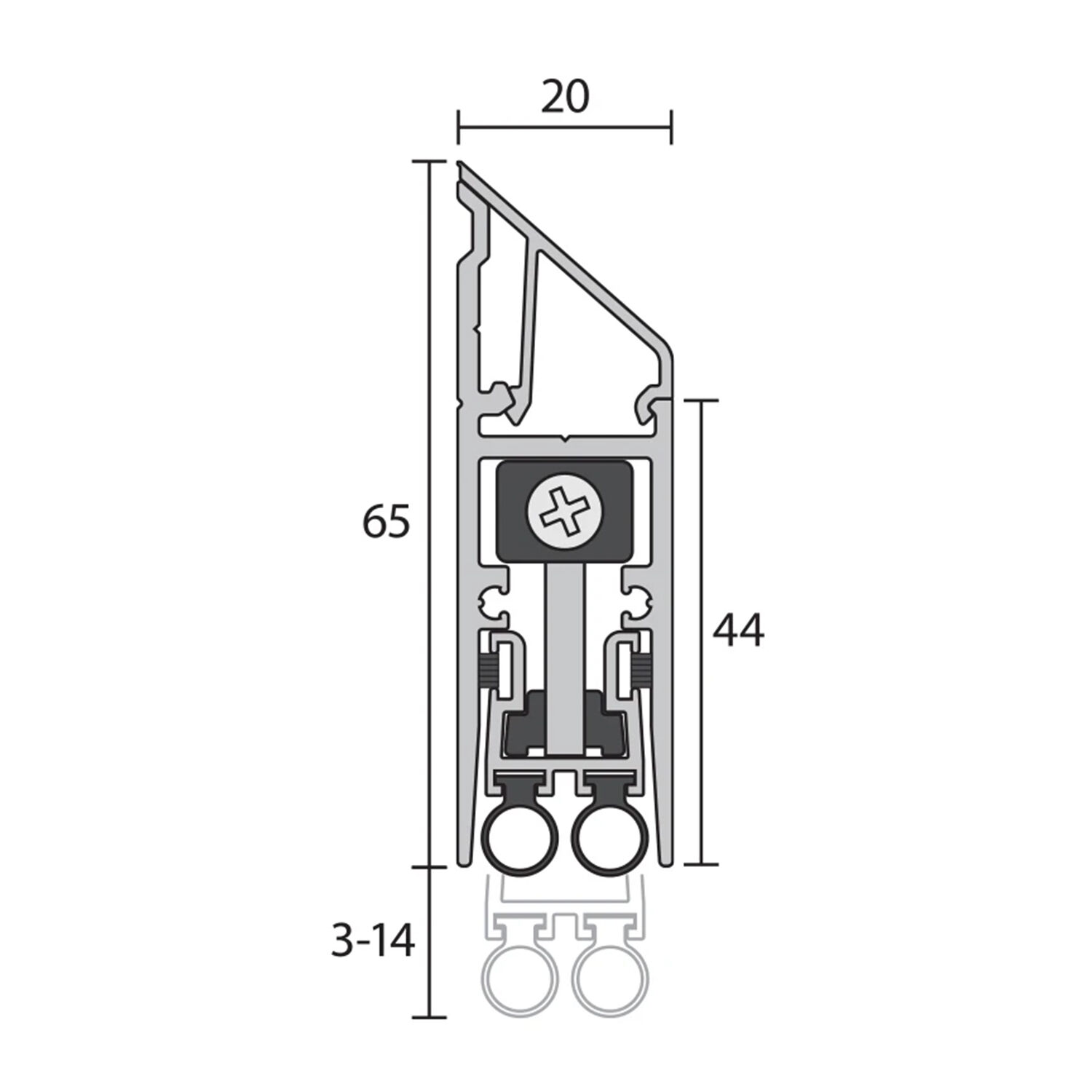

• Min and Max Gap: 3mm - 14mm
• Fixing: Screw Fix
• Inner Depth: 65mm
• Outer Depth: 44mm
• Width: 20mm
• Length:
  • 600mm
  • 820mm
  • 900mm
  • 1070mm
  • 1220mm
• Available Finish:
  • Black
  • Silver Anodised

Approvals:

• UL: R37913, Certifire: CF 5710, ANSI/BHMA: A156.22
• NCC F7D6
• Approved Document E, Rated to BS EN ISO 717-1
• NCC S12C2, AS 1905.1, NZBC C/AS2 4.16.2, AS 1530.4
• Up to FRL & FRR-/180/30
• Gasket flammability index 1 when tested to AS1530.2
• AS 1530.7, BS EN 1634-3, NCC S12C4 - Meets smoke leakage rates specified in AS 6905 & EN 13501-2 “Sa”, “S200”, NCC S12C4
• ABCB Housing Provisions Standard 2022 13.4.4, NCC J5D5
• Tested to over 1,000,000 operating cycles without failure
• AS 4674 Sect. 2.1.5 Pt. (iv), AS 4674 Sect. 2.1.7
