Raven RP160 Intumescent Fire Seal

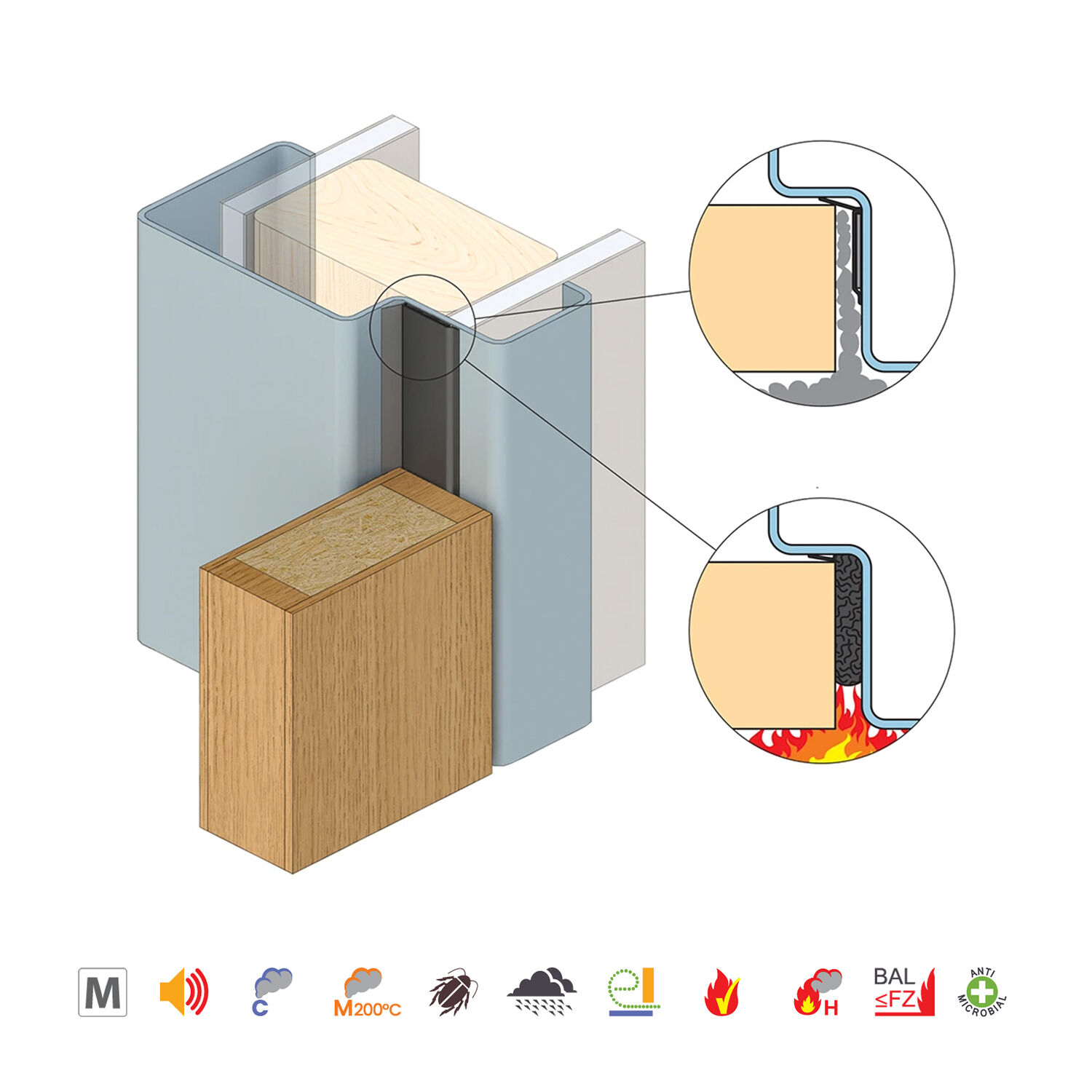

Perimeter Seal can be used to replace the door stop on both steel and timber door frames, where frames are non fire-rated.

Perimeter Seal Function - A wide selection of slimline perimeter seals for use around the head, jambs, and meeting stiles of doors. These seals are suited for use with drop seals or door bottom seals and can accommodate a wide range of gap widths and applications.

Features:

• An intumescent fire and smoke seal
• Heat activating intumescent expands at a lower temperature, offering improved smoke and fire sealing performance over traditional batwing fin type seals
• Thin profile and fin placement design allows easier door closing and latching in accordance with door closing force

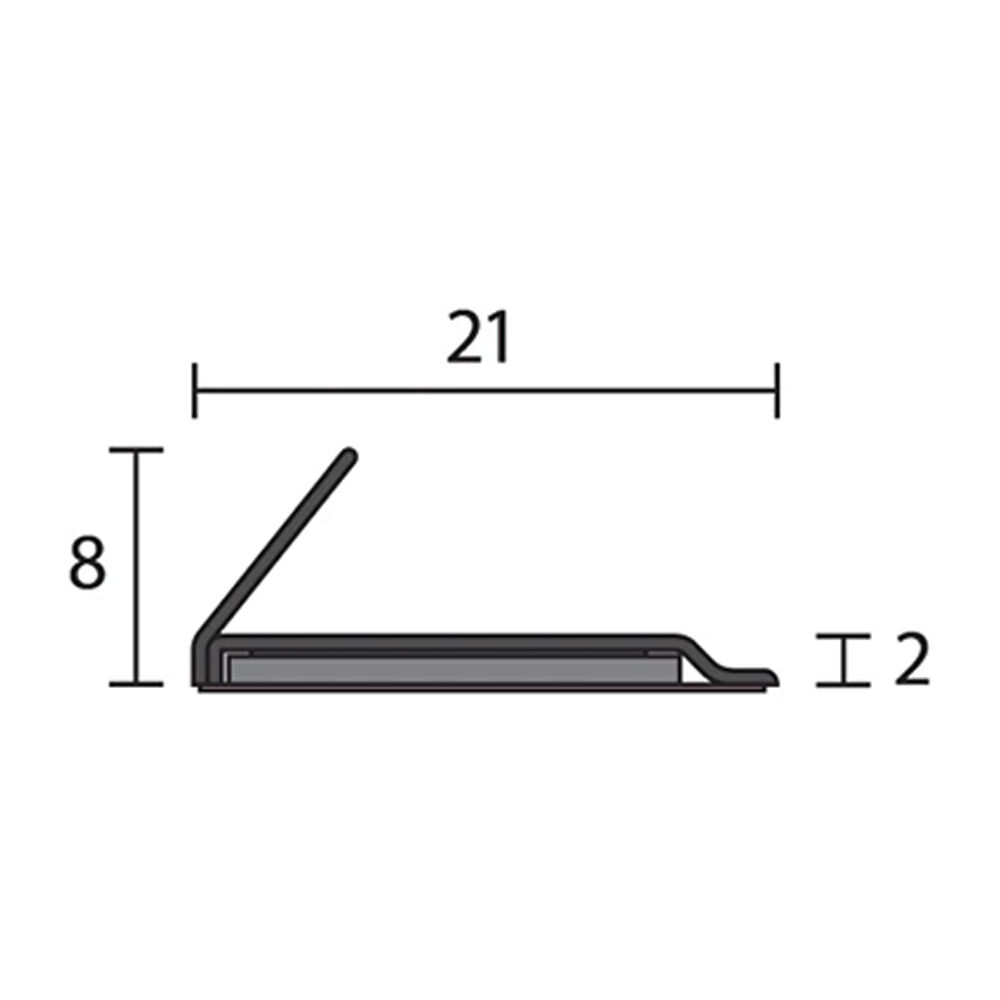

Specifications:

• Min and Max Gap: 2.5mm - 7mm
• Fixing: Self-Adhesive
• Width: 21mm
• Thickness: 2mm
• Projection: 8mm
• Length:
  • 3000mm
  • Long Single Door Set (1 x 1000mm and 2 x 2750mm
• Finish: Black

Approvals:

• NCC Spec C3.4, AS 1530.4:2005 & earlier, NZBC C/AS2 4.16.2
• Approved Document B, Tests above are similar to BS EN 1634-1 & BS 476 Pt. 20 & 22
• Up to FRL & FRR-/120/30
• NCC S12C4, Tested to AS 1530.7, NCC S12C4 - Meets smoke leakage rates specified in AS 6905 & EN 13501-2 “Sa”, “S200”, Tested to BS EN 1634-3
• ABCB Housing Provisions Standard 2022 13.4.4, NCC J5D5
