Raven RP16Si Astragal Acoustic Smoke Seal
A16SIBK2250

Meeting Stile are seals for frameless glass sliding doors.

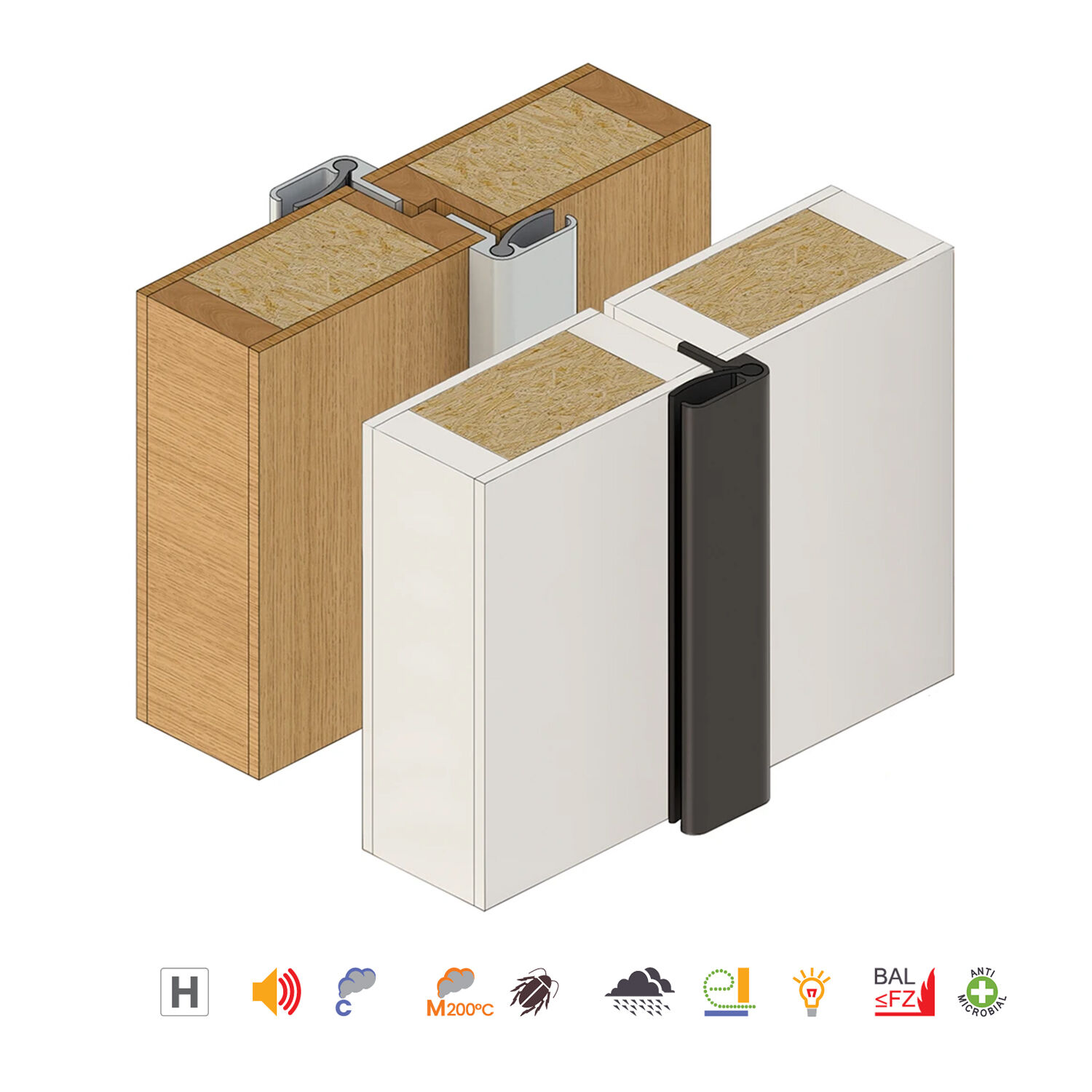

Meeting Stile Function - are applied to a pair of double doors to create a seal over the gap where the doors meet. Properly sealing a set of doors prevents infiltration of sound, light, drafts, thus creating an insulated environment. It can also be applied to contain fire and smoke in emergency situations.

Features:

• Its proven design is effective in sealing the meeting stiles of plain or rebated double doors.
• It's aluminium trim neatly conceals the sealing portion of the seal and provides a secure weatherproof rebate stop
• If necessary, its aluminium fixing leg can be checked out to allow for locks and latches

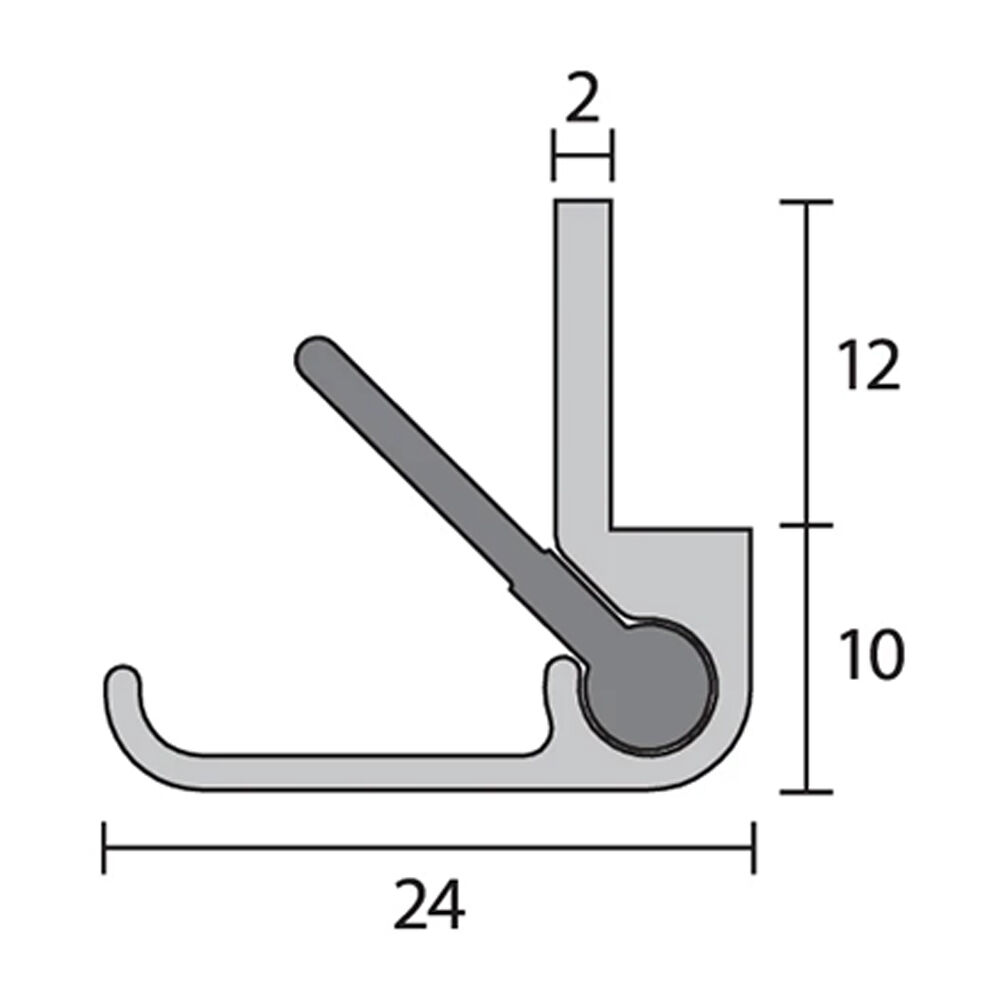

Specifications:

• Min and Max Gap: 2.5mm - 8mm
• Fixing: Screw Fix
• Width: 24mm
• Depth: 22mm
• Thickness: 2mm
• Length: 2250mm
• Finish: Black Anodised

Approvals:

• Certifire: CF 5710, ANSI/BHMA: A156.22, UL: R37913
• NCC F7D6
• Approved Document E, Rated to BS EN ISO 717-1
• Gasket flammability index 1 when tested to AS1530.2
• AS 1530.7, BS EN 1634-3, NCC S12C4 - Meets smoke leakage rates specified in AS 6905 & EN 13501-2 “Sa”, “S200”, NCC S12C4
• ABCB Housing Provisions Standard 2022 13.4.4, NCC J5D5
