Raven RP23 Perimeter Seal

Perimeter Seal can be used to replace the door stop on both steel and timber door frames, where frames are non fire-rated.

Perimeter Seal Function - A wide selection of slimline perimeter seals for use around the head, jambs, and meeting stiles of doors. These seals are suited for use with drop seals or door bottom seals and can accommodate a wide range of gap widths and applications.

Features:

• Ideal for smoke and weather applications on butt hinged doors
• Can be mitred or butt jointed for a neat finish
• Its aluminium carrier is sturdy and slotted for adjustment with concealed fixings

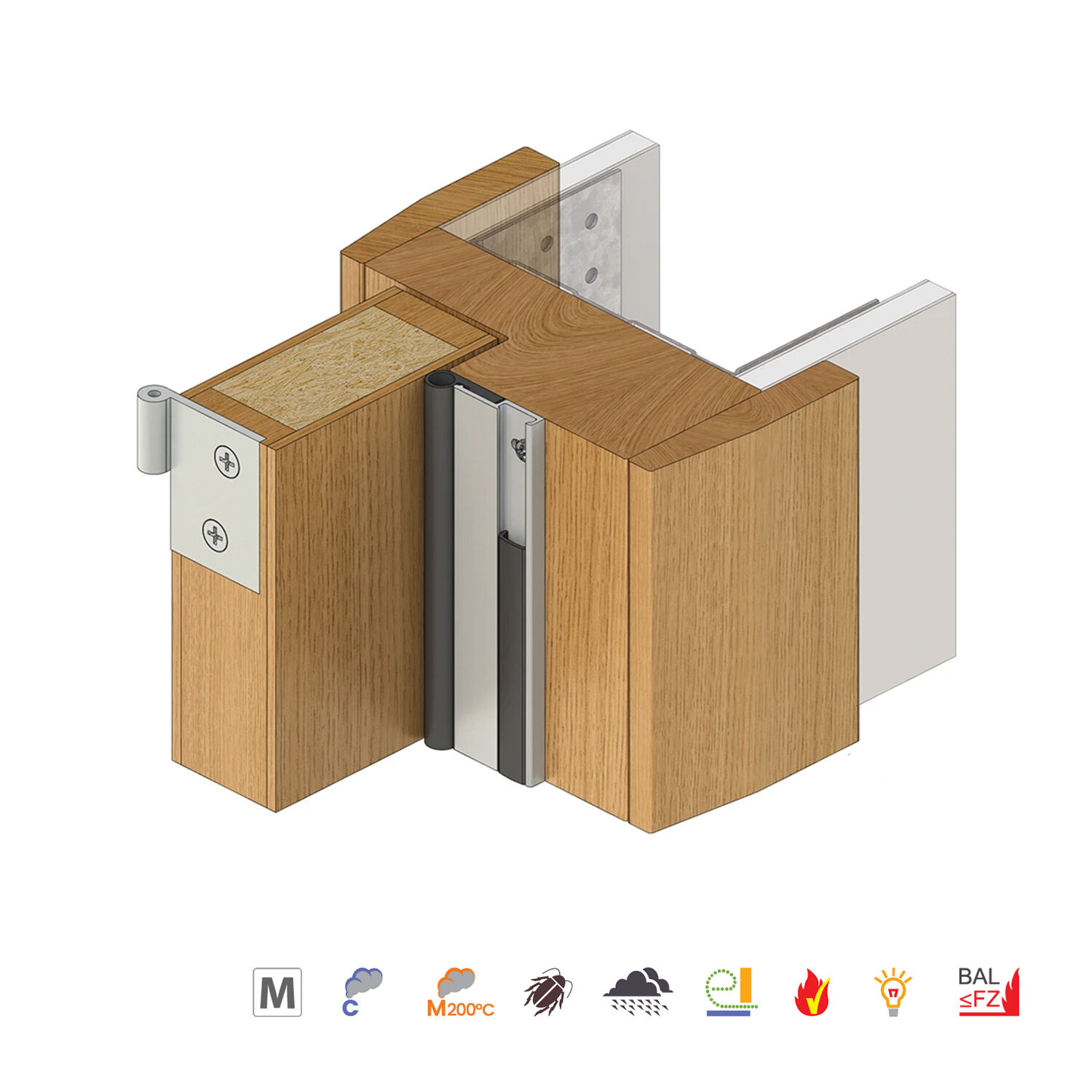

• Quick and easy to install on door stops around the jamb and head and can be fitted without removing the door
• Can be used on all four sides of the door to form a bulkhead seal

Specifications:

• Max Gap: 7mm
• Fixing: Screw Fix

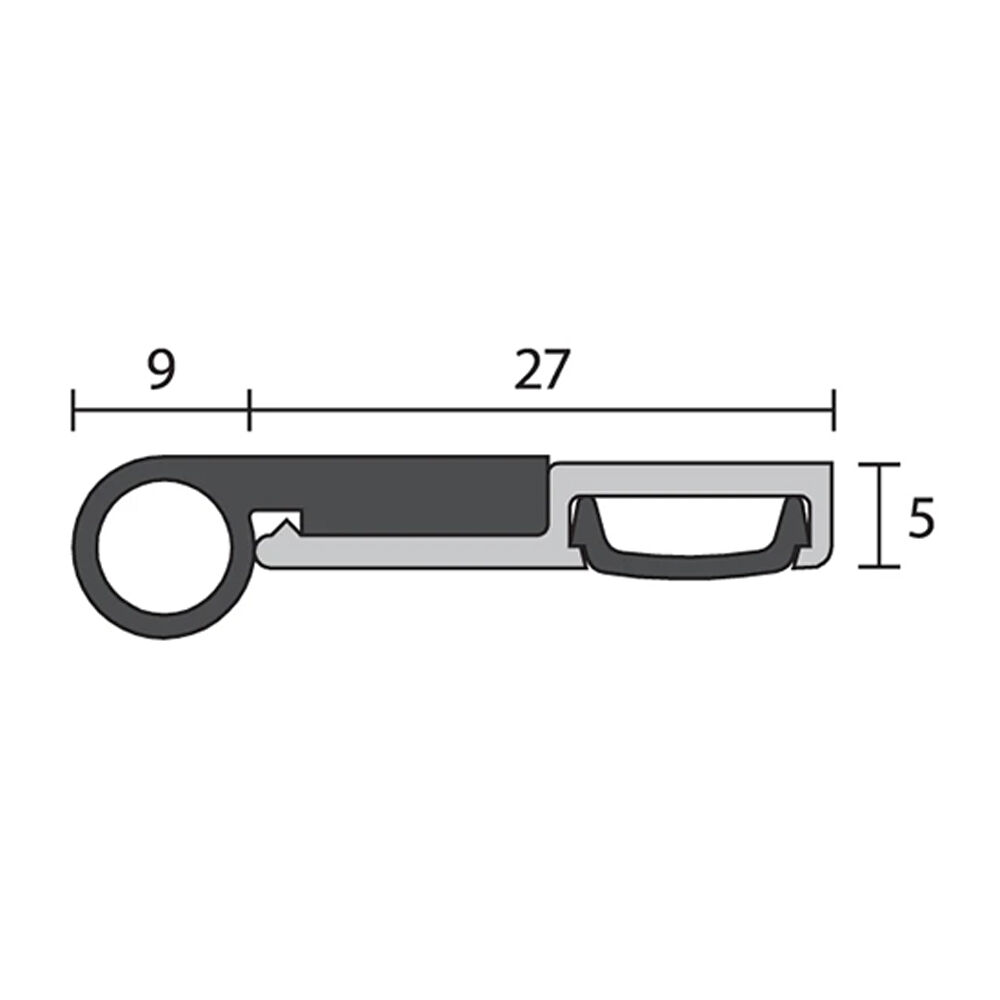

• Width: 36mm
• Projection: 5mm
• Length:
  • Long Single Door Set (1 x 1000mm and 2 x 2750mm)
  • Single Door Set (1 x 1000mm and 2 x 2100mm)
• Finish: Silver Anodised

Approvals:

• NCC F7D6
• Approved Document E, Rated to BS EN ISO 717-1
• NCC S12C2, AS 1530.4, AS 1905.1, NZBC C/AS2 4.16.2
• Tests above are similar to BS EN 1634-1 & BS 476 Pt. 20 & 22
• Up to FD240, Up to FRL & FRR-/120/30
• NCC S12C4, AS 1530.7, BS EN 1634-3, NCC S12C4 - Meets smoke leakage rates specified in AS 6905 & EN 13501-2 “Sa”, “S200”
• NCC J5D5, ABCB Housing Provisions Standard 2022 13.4.4
• BAL FZ when used with an approved proprietary fire rated door in accordance with AS 3959
